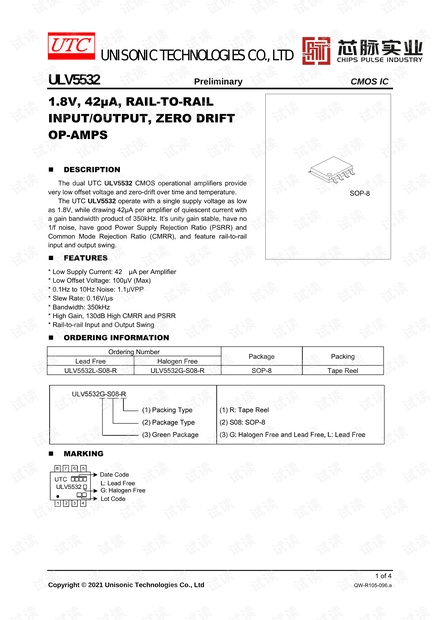

UNISONIC TECHNOLOGIES CO., LTD
ULV5532
Preliminary CMOS IC
1 of 4
Copyright © 2021 Unisonic Technologies Co., Ltd
QW-R105-096.a
1.8V, 42μA, RAIL-TO-RAIL
INPUT/OUTPUT, ZERO DRIFT
OP-AMPS
DESCRIPTION
The dual UTC ULV5532 CMOS operational amplifiers provide
very low offset voltage and zero-drift over time and temperature.
The UTC ULV5532 operate with a single supply voltage as low
as 1.8V, while drawing 42μA per amplifier of quiescent current with
a gain bandwidth product of 350kHz. It’s unity gain stable, have no
1/f noise, have good Power Supply Rejection Ratio (PSRR) and
Common Mode Rejection Ratio (CMRR), and feature rail-to-rail
input and output swing.
FEATURES
* Low Supply Current: 42 µA per Amplifier
* Low Offset Voltage: 100μV (Max)
* 0.1Hz to 10Hz Noise: 1.1µVPP
* Slew Rate: 0.16V/μs
* Bandwidth: 350kHz
* High Gain, 130dB High CMRR and PSRR
* Rail-to-rail Input and Output Swing
ORDERING INFORMATION
Ordering Number
Package Packing
Lead Free Halogen Free
ULV5532L-S08-R ULV5532G-S08-R SOP-8 Tape Reel
MARKING
