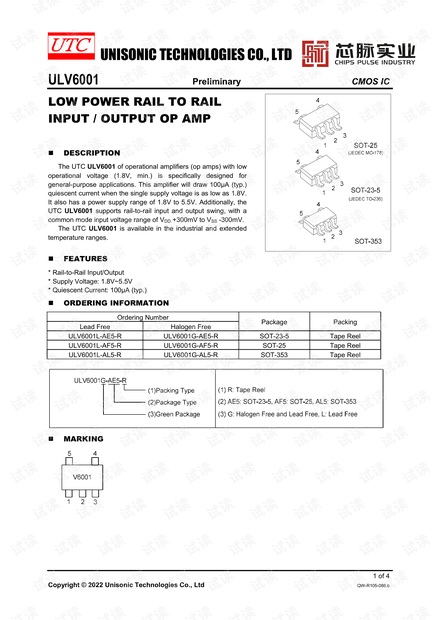

UNISONIC TECHNOLOGIES CO., LTD
ULV6001 Preliminary CMOS IC
1 of 4
Copyright © 2022 Unisonic Technologies Co., Ltd QW-R105-086.b
LOW POWER RAIL TO RAIL
INPUT / OUTPUT OP AMP
DESCRIPTION
The UTC ULV6001 of operational amplifiers (op amps) with
low
operational voltage (1.8V, min.)
is specifically designed for
general-purpose applications. This amplifier will
draw 100µA (typ.)
quiescent current when the single supply voltage is as low as 1.8V
.
It also has a power supply range of 1.8V to 5.5V.
Additionally, the
UTC ULV6001 supports rail-to-
rail input and output swing, with a
common mode input voltage range of V
DD
+300mV to V
SS
-300mV.
The UTC ULV6001 is available in the industrial and
extended
temperature ranges.
FEATURES
* Rail-to-Rail Input/Output
* Supply Voltage: 1.8V~5.5V
* Quiescent Current: 100µA (typ.)
ORDERING INFORMATION
Ordering Number
Package Packing
Lead Free Halogen Free
ULV6001L-AE5-R ULV6001G-AE5-R SOT-23-5 Tape Reel
ULV6001L-AF5-R ULV6001G-AF5-R SOT-25 Tape Reel
ULV6001L-AL5-R ULV6001G-AL5-R SOT-353 Tape Reel
MARKING
