UX-8TH/UX-40TH

GQ-5TH/FO-50TH

No. 00ZUX8TH//SME

CHAPTER 1. GENERAL DESCRIPTION

[1] Specifications ............................................ 1-1

[2] Operation panel......................................... 1-2

[3] Transmittable documents .......................... 1-3

[4] Installation ................................................. 1-4

[5] Quick reference guide ............................... 1-9

CHAPTER 2. ADJUSTMENTS

[1] Adjustments .............................................. 2-1

[2] Diagnostics and service soft switch .......... 2-2

[3] Troubleshooting ...................................... 2-18

[4] Error code table ....................................... 2-19

CHAPTER 3. MECHANISM BLOCKS

[1] General description ................................... 3-1

[2] Disassembly and assembly

procedures ....................................... 3-3

CHAPTER 4. DIAGRAMS

[1] Block diagram ............................................4-1

[2] Wiring diagram .......................................... 4-2

[3] Point-to-point diagram ............................... 4-3

CHAPTER 5. CIRCUIT DESCRIPTION

[1] Refer to the service manual of UX-60TH.

[2] Refer to the service manual of UX-60TH.

[3] Refer to the service manual of UX-60TH.

[4] Refer to the service manual of UX-60TH.

[5] Refer to the service manual of UX-60TH.

CHAPTER 6. CIRCUIT SCHEMATICS AND

PARTS LAYOUT

[1] Control PWB circuit ................................... 6-1

[2] TEL/LIU PWB circuit.................................. 6-9

[3] Power supply PWB circuit ...................... 6-13

[4] Operation panel PWB circuit ................... 6-15

CHAPTER 7. OPERATION FLOWCHART

[1] Refer to the service manual of UX-60TH.

[2] Refer to the service manual of UX-60TH.

CHAPTER 8. OTHERS

[1] Refer to the service manual of UX-60TH.

[2] Refer to the service manual of UX-60TH.

PARTS GUIDE

CONTENTS

FACSIMILE

UX-8

UX-40

GQ-5

MODEL FO-50

Parts marked with " " is important for maintaining the safety of the set. Be sure to replace these parts with specified ones for

maintaining the safety and performance of the set.

This document has been published to be used

for after sales service only.

The contents are subject to change without notice.

SHARP CORPORATION

SERVICE MANUAL

Illustration: UX-8

This service manual is omitted because it is partly common to UX-60TH/FO-70TH of the service manual of the

previous issue. Those common parts are to refer to the service manual of UX-60TH/FO-70TH (00ZUX60TH/SME).

1 – 1

UX-8TH/UX-40TH

GQ-5TH/FO-50TH

CHAPTER 1. GENERAL DESCRIPTION

[1] Specifications

Automatic dialing: Rapid Key Dialing: 5 numbers

(Note for UX-8/GQ-5: Rapid Key Dialing

is not available)

Speed Dialing: 35 numbers

(Note for UX-8/GQ-5: 10 number)

Fax paper: Initial starter roll (included with machine):

10 m

Recommended replacement roll:

FO-20PRw, 30m, 12.7mm core

Paper cutting method: Tear off by hand

Modem speed: 9600 bps with automatic fallback to lower

speeds

Transmission time* : Approx. 15 seconds

Resolution: Horizontal: 8 dots/mm

Vertical:

Standard: 3.85 lines/mm

Fine/Halftone: 7.7 lines/mm

Super fine: 15.4 lines/mm

Automatic document feeder: 5 pages max. (20 lb paper)

(UX-8/GQ-5: This function is not available)

Halftone (grayscale): 64 levels

Display: 16-digit LCD display

Compression scheme: MR, MH, Sharp (H2)

Applicable telephone line: Public switched telephone network

Compatibility: ITU-T (CCITT) G3 mode

Input document size: Automatic feeding:

Width: 148 to 216 mm

Length: 140 to 297 mm

Manual feeding:

Width: 148 to 216 mm

Length: 140 to 600 mm

Effective scanning width: 210 mm max.

Effective printing width: 210 mm max.

Contrast control: Automatic/Dark selectable

Reception modes: Fax, Tel, Tel/Fax, A.M.

Copy function: Ye s

Telephone function: Yes (cannot be used if power fails)

Power requirements: 220-240 V AC, 50/60 Hz

Operating temperature: 5 - 35°C

Humidity: Maximum: 85 % RH

Power consumption: Standby: 2.3 W

Maximum: 115 W

Dimensions: Width: 304 mm

Depth: 236 mm

Height: 122 mm

Weight: Approx. 2.6 kg

* Based on ITU-T (CCITT) Test Chart #1 at standard resolution in Sharp

special mode, excluding time for protocol signals (i.e., ITU-T phase C

time only).

Note: The facsimile machine is Year 2000 compliant.

As a part of our policy of continuous improvement, SHARP reserves the right to make design and specification changes for procduct

improvement without prior notice. The performance specifications figures indicated are nominal values of production units. There may be some

deviation from these values in individual units.

1 – 2

UX-8TH/UX-40TH

GQ-5TH/FO-50TH

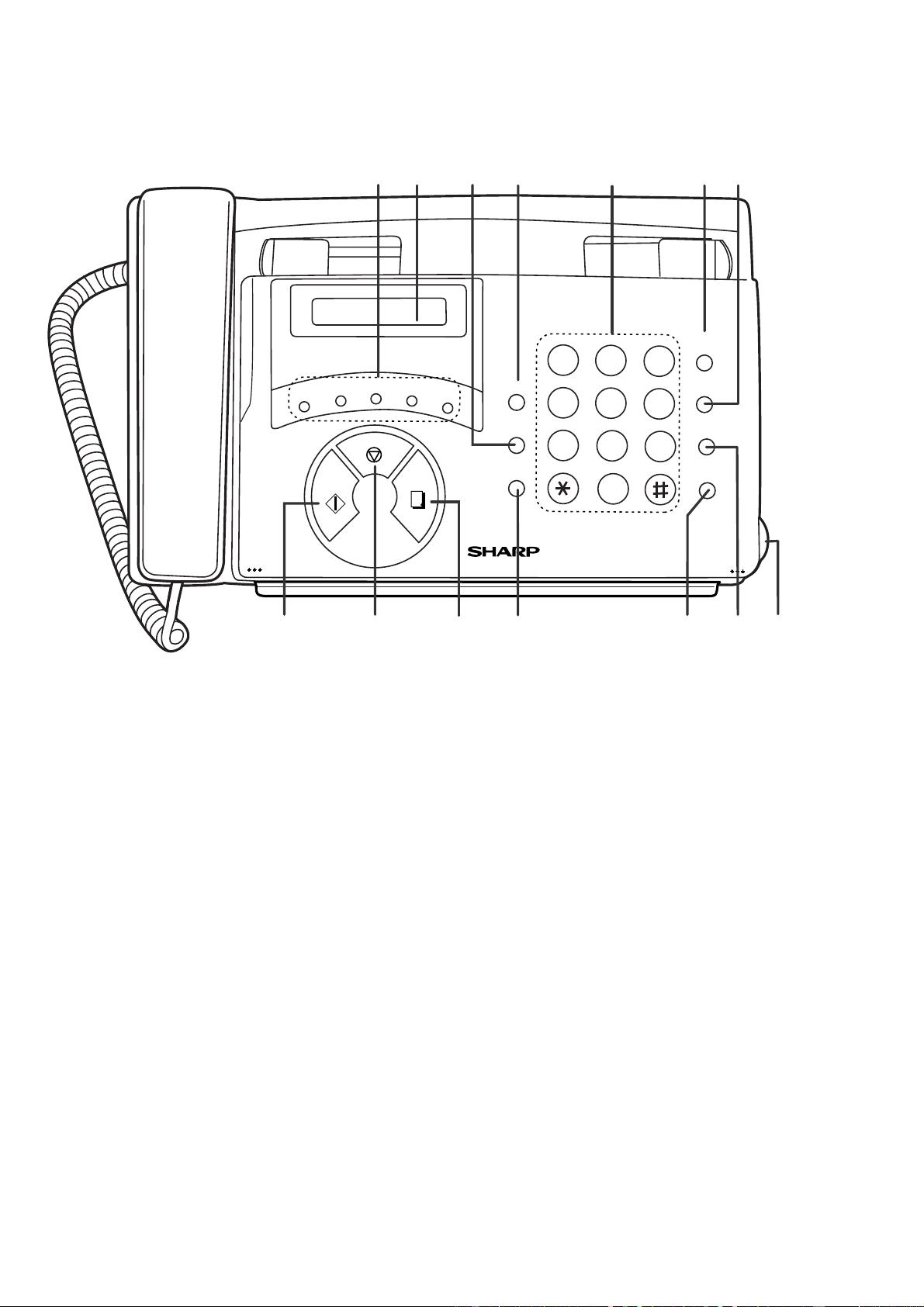

[2] Operation panel

1. Rapid Dial keys

Press one of these keys to dial a fax number automatically.

Note for UX-8/GQ-5: Rapid Key Dialing is not available.

2. Display

This displays messages and prompts during operation and

programming.

3. FUNCTION key

Press this key to select various special functions.

4. VOLUME keys

Press this keys to adjust the volume of the speaker when

the SPEAKER key has been pressed, the volume of the

ringer at all other times.

5. Number keys

Use these keys to dial numbers, and enter numbers and

letters when storing auto-dial numbers.

6. SPEED DIAL key

Press this key to dial a fax or voice number using an

abbreviated 2-digit Speed Dial number.

7. REDIAL key

Press this key to automatically redial the last number

dialed.

8. START key

Press this key to begin transmission when using Speed

Dialing, Direct Keypad Dialing, or Normal Dialing.

9. STOP key

Press this key to cancel operation before it is completed.

10. COPY/HELP key

When a document is in the feeder, press this key to make

a copy of a document. At any other time, press this key to

print out the Help List, a quick reference guide to the

opeation of your fax machine.

11. RESOLUTION/RECEPTION MODE key

When a document is in the feeder, press this key to adjust

the resolution for faxing or copying. At any other time,

press this key to select the reception mode (an arrow in the

display will point to the currently selected reception mode).

12. SPEAKER key

Press this key to listen the line and fax tones through the

speaker when faxing a document.

Note: This is not a speakerphone. You must pick up the

handset to talk with the other party.

13. HOLD/SEARCH key

Press this key to search for an auto-dial number, or, during a

phone conversation, press this key to put the other party on

hold.

14. Panel release

Grasp this finger hold and pull toward you to open the

operation panel.

TEL FAX

RECEPTION

MODE

RESOLUTION FUNCTION

DOWN VOLUME UP

A.M.

SPEED DIAL

REDIAL

SPEAKER

10/POLL

ABC

DEF

JKL

MNO

GHI

TUV

WXYZ

PQRS

START

STOP

COPY/HELP

HOLD/SEARCH

TEL FAX

GHI

PQRS

JKL

ABC

DEF

MNO

WXYZ

TUV

STOP

COPY/

HELP

START

FUNCTION

VOLUME

SPEED

DIAL

REDIAL

HOLD/

SPEAKER

RESOLUTION/

RECEPTION MODE

654

TEL/FAX A.M.

POLL

1 4 5 62 3

11109

13 14

1 – 3

UX-8TH/UX-40TH

GQ-5TH/FO-50TH

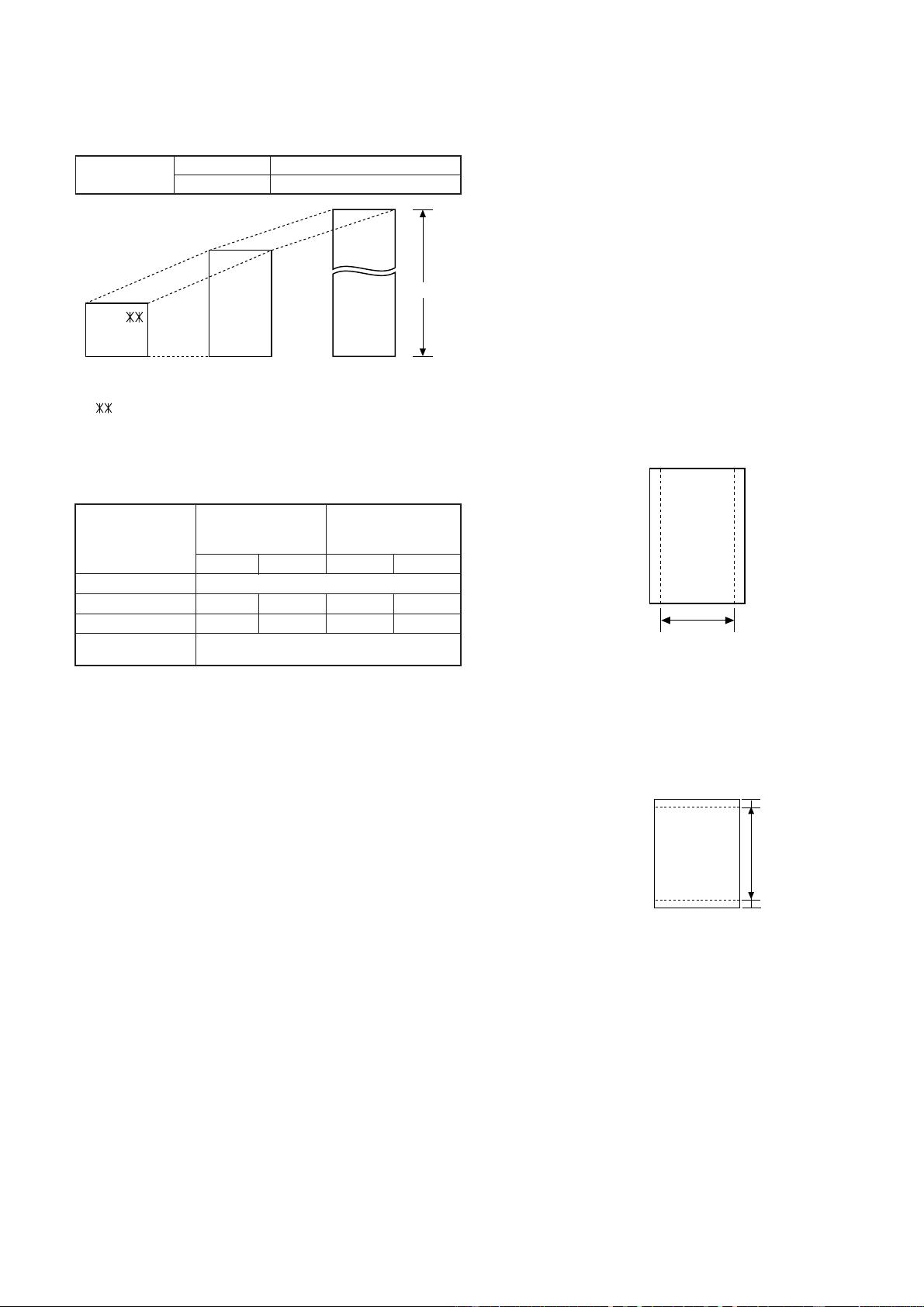

[3] Transmittable documents

1. Document Sizes

* With special sizes, only one sheet can be fed into the machine at a

time. Insert next page into feeder as current page is being scanned.

2. Paper Thickness & Weight

Normal size

width 148 – 216 mm

length 140 – 297 mm

5. Automatic Document Feeder Capacity

Number of pages that can be placed into the feeder at anytime is as

follows:

Normal size: max. ADF 5 sheets

Special size: single sheet only (manual feed)

NOTES: • When you need to send or copy more pages than the feeder

limit, place additional pages in feeder when last page in

feeder is being scanned.

• Place additional pages carefully and gently in feeder.

If force is used, double-feeding or a document jam may

result.

6. Readable Width & Length

The readable width and length of a document are slightly smaller than

the actual document size.

Note that characters or graphics outside the effective document scan-

ning range will not be read.

• Readable width

210mm, max.

• Readable length

This is the length of the document sent minus 5mm from the top and

bottom edges.

Use document carrier sheet for smaller documents.

Readable width

(Min.)

(Max.)

A4 size

(Max.)

140mm

297mm

600mm

148mm 216mm

[

Normal size

]

216mm

[

Special size

]

3. Document Types

• Normal paper

Documents handwritten in pencil (No. 2 lead or softer), fountain

pen, ball-point pen, or felt-tipped pen can be transmitted.

Documents of normal contrast duplicated by a copying machine

can also be transmitted.

• Diazo copy (blue print)

Diazo copy documents of a normal contrast may be transmitted.

• Carbon copy

A carbon copy may be transmitted if its contrast is normal.

4. Cautions on Transmitting Documents

• Documents written in yellow, greenish yellow, or light blue ink cannot

be transmitted.

• Ink, glue, and correcting fluid on documents must be dry before

the documents can be transmitted.

• All clips, staples and pins must be removed from documents be-

fore transmission.

• Patched (taped) documents should be copied first on a copier and

then the copies used for transmission.

• All documents should be fanned before insertion into the feeder to

prevent possible double feeds.

5mm

Readable length

Paper size 148mm x 140mm ~

A4 (210mm x 297mm), Letter (216mm x 279mm)

4x6 series

(788mm x 1091mm x

1000mm sheets)

Square

meter series

Minimum Maximum Minimum Maximum

Feeder capacity 5 sheets, max.

Paper thickness (ref.)

0.06mm 0.09mm 0.06mm 0.09mm

Paper weight 45kg 69.2kg 52g/m

80g/m
