60cpq150.pdfIF(AV) Rectangular 60 A waveform VRRM 150 V IFSM @ tp = 5 μs sine 2300 A VF @ 30 Apk, TJ= 125°C 0.67 V (per leg) TJ range - 55 to 175 °C Characteristics 60CPQ150 Units Major Ratings and Characteristics Description/Features The 60CPQ150 center tap Schottky rectifier series has been optimized for low reverse leakage at high temperature. The proprietary barrier technology allows for reliable operation up to 175° C junction temperature. Typical applications are in switching power supplies, converters, free-wheeling diodes, and reverse battery protection. 175° C TJ operation Center tap TO-247 package High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance Low forward voltage drop High frequency operation Guard ring for enhanced ruggedness and long term reliability TO-247AC SCHOTTKY RECTIFIER 60 Amp 60CPQ150 Bulletin PD-20402 rev. A 03/02 1 Case Styles TO-247AC 60CPQ150 Base Common Cathode Anode Anode Common Cathode 1 3 2 1 2 2 www.irf.com 60CPQ150 Bulletin PD-20402 rev. A 03/02 2 www.irf.com TJ Max. Junction Temperature Range -55 to 175 °C Tstg Max. Storage Temperature Range -55 to 175 °C RthJC Max. Thermal Resistance Junction 0.8 °C/W DC operation to Case (Per Leg) * See Fig. 4 RthJC Max. Thermal Resistance Junction 0.4 °C/W DC operation to Case (Per Package) RthCS Typical Thermal Resistance, Case 0.25 °C/W Mounting surface , smooth and greased to Heatsink wt Approximate Weight 6 (0.21) g (oz.) T Mounting Torque Min. 6 (5) Max. 12 (10) Case Style TO-247AC(TO-3P) JEDEC Part number 60CPQ150 VR Max. DC Reverse Voltage (V) VRWM Max. Working Peak Reverse Voltage (V) Voltage Ratings 150 Thermal-Mechanical Specifications Kg-cm (Ibf-in) Absolute Maximum Ratings Parameters 60CPQ Units Conditions IF(AV) Max. Average Forward (Per Leg) 30 A 50% duty cycle @ TC = 151°C, rectangular wave form Current * See Fig. 5 (Per Device) 60 IFSM Max. Peak One Cycle Non-Repetitive 2300 5μs Sine or 3μs Rect. pulse Surge Current (Per Le

...展开详情
试读 6P 60cpq150.pdf
立即下载 低至0.43元/次 身份认证VIP会员低至7折
一个资源只可评论一次,评论内容不能少于5个字
您会向同学/朋友/同事推荐我们的CSDN下载吗?
谢谢参与!您的真实评价是我们改进的动力~
关注 私信
上传资源赚钱or赚积分
最新推荐
60cpq150.pdf 9积分/C币 立即下载
1/6

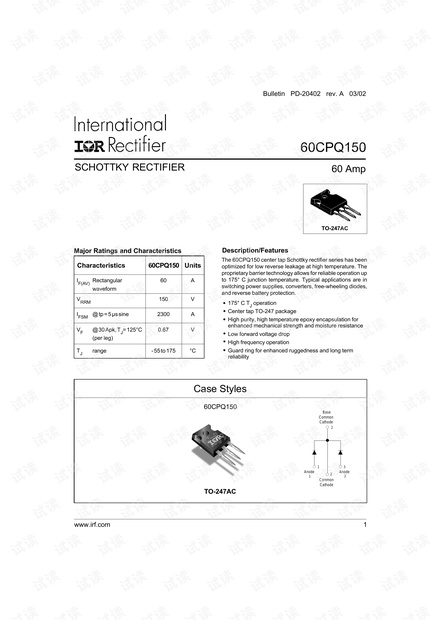

60cpq150.pdf第1页
