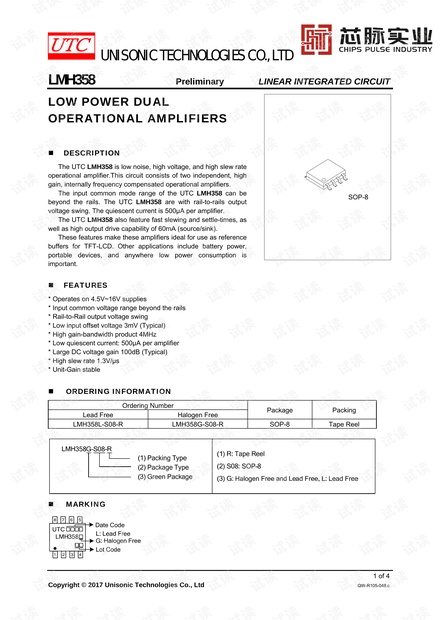

UNISONIC TECHNOLOGIES CO., LTD
LMH358
Preliminary LINEAR INTEGRATED CIRCUIT
1 of 4
Copyright © 2017 Unisonic Technologies Co., Ltd
QW-R105-048.c
LOW POWER DUAL
OPERATIONAL AMPLIFIERS
DESCRIPTION
The UTC LMH358 is low noise, high voltage, and high slew rate
operational amplifier.This circuit consists of two independent, high
gain, internally frequency compensated operational amplifiers.
The input common mode range of the UTC LMH358 can be
beyond the rails. The UTC LMH358 are with rail-to-rails output
voltage swing. The quiescent current is 500µA per amplifier.
The UTC LMH358 also feature fast slewing and settle-times, as
well as high output drive capability of 60mA (source/sink).
These features make these amplifiers ideal for use as reference
buffers for TFT-LCD. Other applications include battery power,
portable devices, and anywhere low power consumption is
important.
FEATURES
* Operates on 4.5V~16V supplies
* Input common voltage range beyond the rails
* Rail-to-Rail output voltage swing
* Low input offset voltage 3mV (Typical)
* High gain-bandwidth product 4MHz
* Low quiescent current: 500µA per amplifier
* Large DC voltage gain 100dB (Typical)
* High slew rate 1.3V/µs
* Unit-Gain stable
SOP-8
ORDERING INFORMATION
Ordering Number
Lead Free Halogen Free
Package Packing
LMH358L-S08-R LMH358G-S08-R SOP-8 Tape Reel
MARKING
