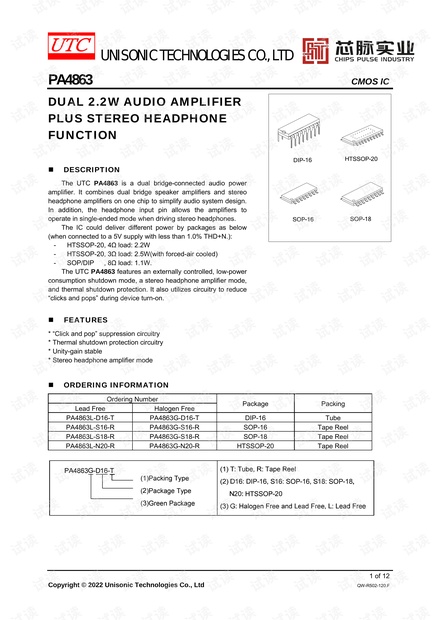

UNISONIC TECHNOLOGIES CO., LTD
PA4863
CMOS IC
1 of 12
Copyright © 2022 Unisonic Technologies Co., Ltd
QW-R502-120.F
DUAL 2.2W AUDIO AMPLIFIER
PLUS STEREO HEADPHONE
FUNCTION
DESCRIPTION
The UTC PA4863 is a dual bridge-connected audio power
amplifier. It combines dual bridge speaker amplifiers and stereo
headphone amplifiers on one chip to simplify audio system design.
In addition, the headphone input pin allows the amplifiers to
operate in single-ended mode when driving stereo headphones.
The IC could deliver different power by packages as below
(when connected to a 5V supply with less than 1.0% THD+N.):
- HTSSOP-20, 4Ω load: 2.2W
- HTSSOP-20, 3Ω load: 2.5W(with forced-air cooled)
- SOP/DIP , 8Ω load: 1.1W.
The UTC PA4863 features an externally controlled, low-power
consumption shutdown mode, a stereo headphone amplifier mode,
and thermal shutdown protection. It also utilizes circuitry to reduce
“clicks and pops” during device turn-on.
FEATURES
* “Click and pop” suppression circuitry
* Thermal shutdown protection circuitry
* Unity-gain stable
* Stereo headphone amplifier mode

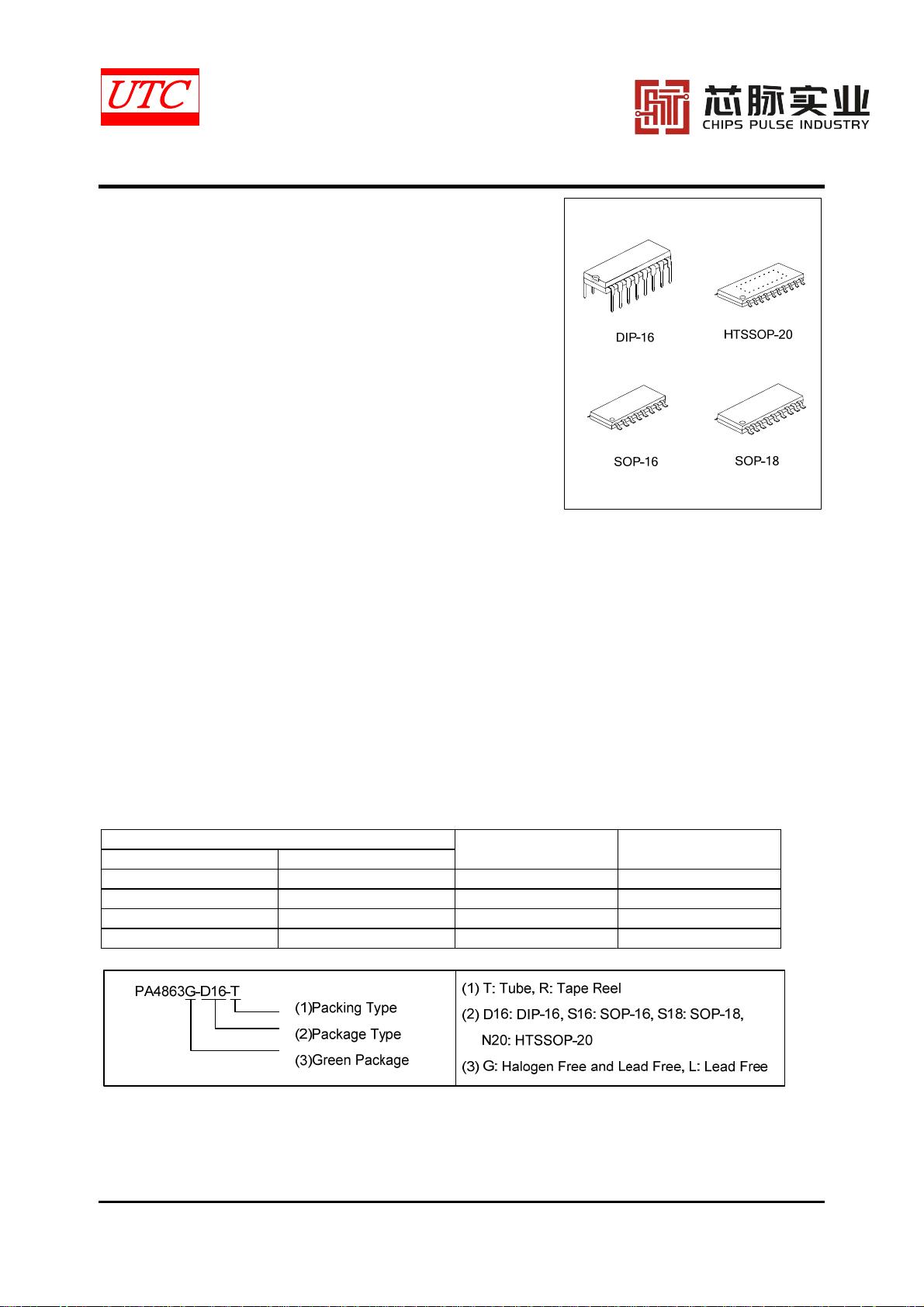

ORDERING INFORMATION
Ordering Number
Package Packing
Lead Free Halogen Free
PA4863L-D16-T PA4863G-D16-T DIP-16 Tube
PA4863L-S16-R PA4863G-S16-R SOP-16 Tape Reel
PA4863L-S18-R PA4863G-S18-R SOP-18 Tape Reel
PA4863L-N20-R PA4863G-N20-R HTSSOP-20 Tape Reel

PA4863 CMOS IC
UNISONIC TECHNOLOGIES CO., LTD 2 of 12
QW-R502-120.F

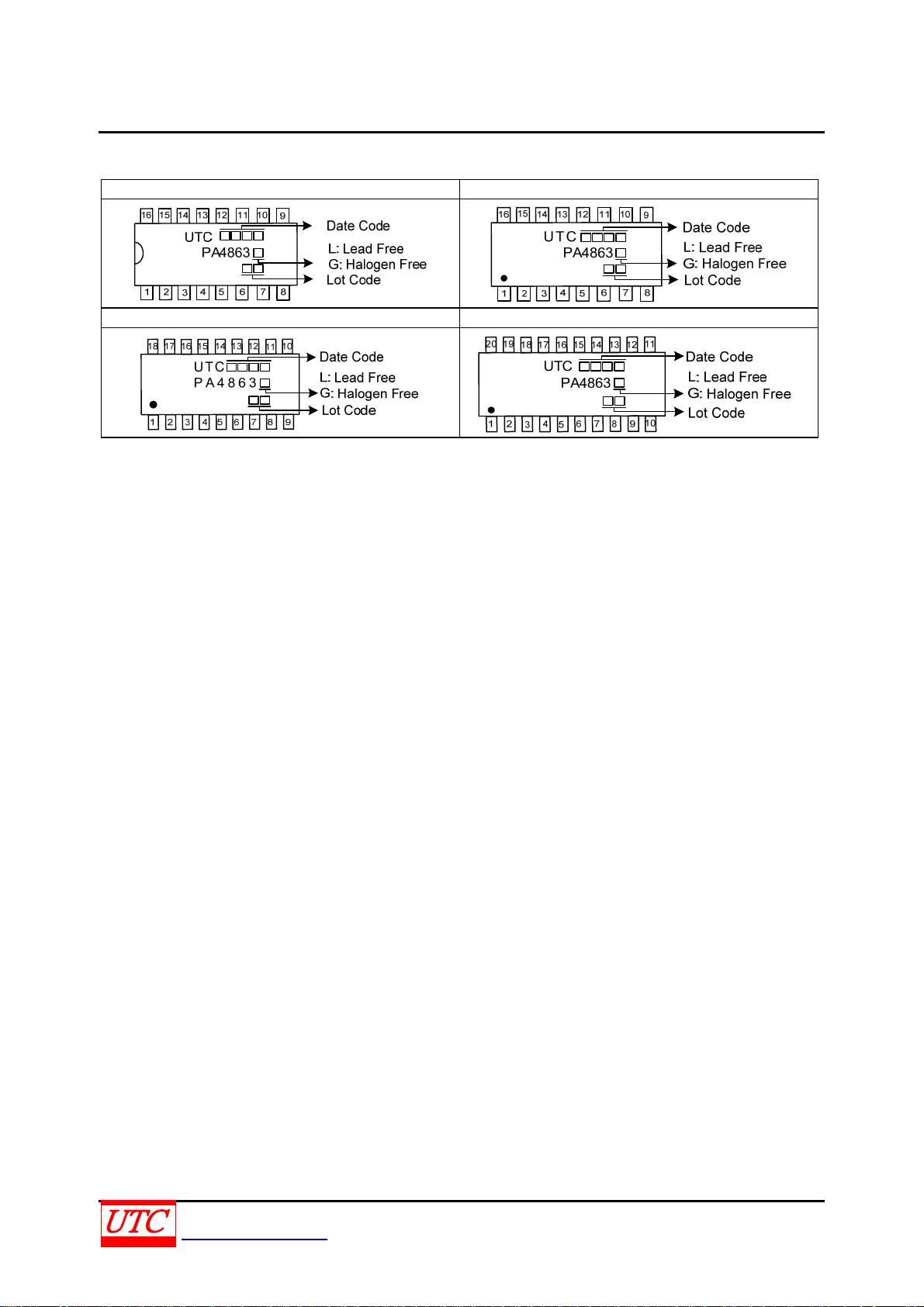

MARKING
DIP-16 SOP-16
SOP-18 HTSSOP-20

PA4863 CMOS IC
UNISONIC TECHNOLOGIES CO., LTD 3 of 12
QW-R502-120.F

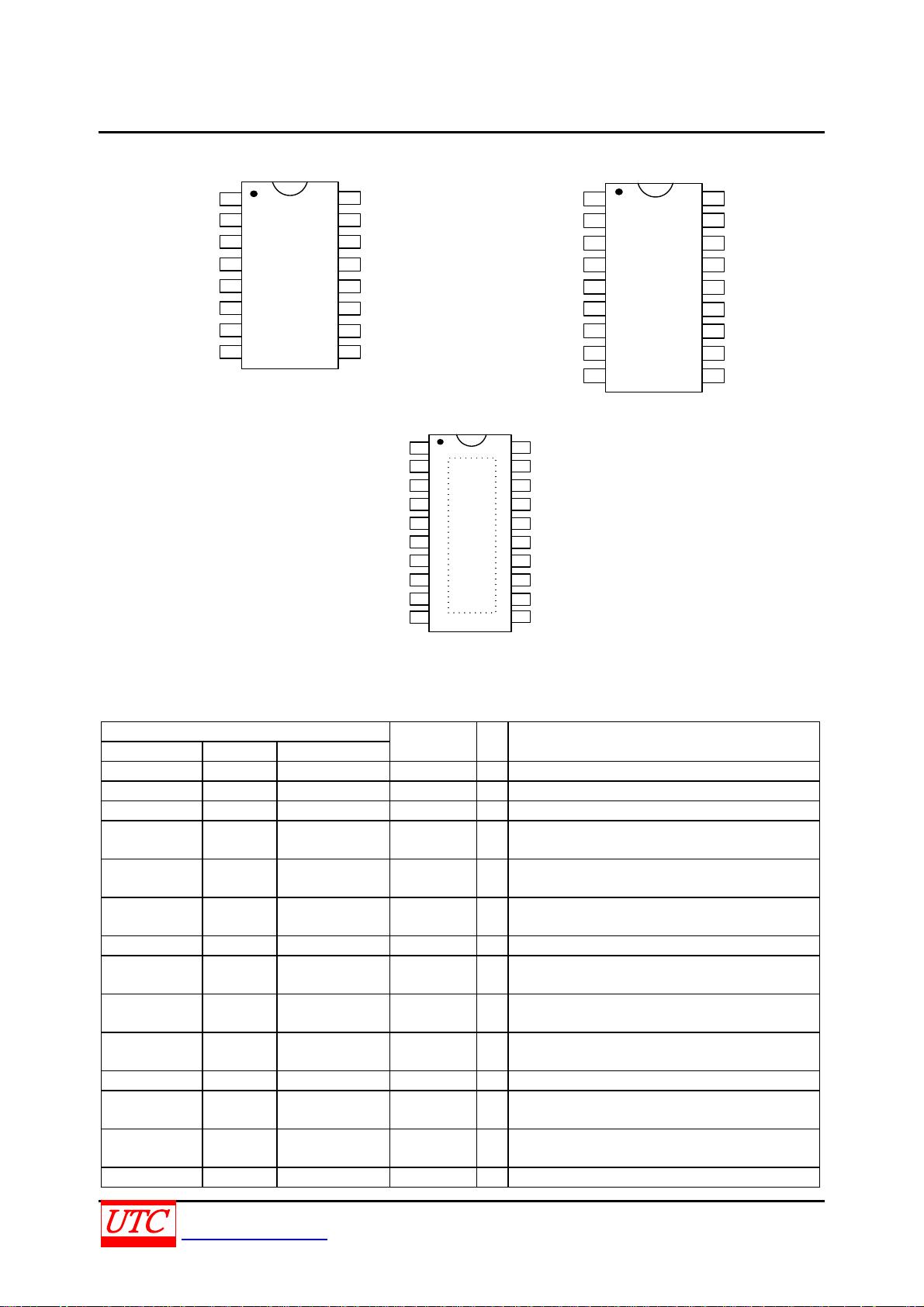

PIN CONFIGURATION
SHUTDOWN
GND
+OUT A
V
DD
-OUT A
-IN A
GND
+IN A
+IN B
BYPASS
-IN B
-OUT B
V
DD
+OUT B
GND
HP-IN
DIP-16/SOP-16
1
2
3
14
13
12
11
10
15
16
9
4
5
6
7
8
SHUTDOWN
GND
+OUT A
V
DD
-OUT A
-IN A
GND
+IN A
+IN B
BYPASS
-IN B
-OUT
B
V
DD
+OUT B
GND
HP-IN
GND
GND
3
4
5
6
7
8
9
14
13
12
11
10
15
16
2
17
1
18
SOP-18
SHUTDOWN
GND
+OUT A
V
DD
-OUT A
-IN A
GND
+IN A
+IN B
BYPASS
-IN B
-OUT B
V
DD
+OUT B
GND
HP-IN
GND
GND
GND
GND
3
4
5
6
7
8
9
16
15
14
13
12
17
18
11
10
2
19
1
20
HTSSOP-20
(Top View)
GND
PIN DESCRIPTION
PIN NO.
PIN NAME I/O PIN DESCRIPTION
DIP-16/SOP-16 SOP-18 HTSSOP-20
4,13 4,15 4,17 V
DD
- Supply voltage
2,7,15 2,7,9,10,17 2,7,9,10,11,12,19 GND - Ground
10 12 14 BYPASS - Internal mid-supply bias reference bypassing
1 1 1 SHUTDOWN I
Entire IC into the shutdown mode when this pin
connected to the V
DD
16 18 20 HP-IN I
Output mode select, connected to the V
DD
for SE
mode or GND for BTL mode
8 8 8 +INA I
Non-inverting input of channel A, connected to
BYPASS pin inside the IC
6 6 6 -INA I Inverting input of channel A
3 3 3 +OUTA O
Channel A + output in BTL mode, high
impedance in SE mode
5 5 5 -OUTA O
Channel A - output in BTL mode, + output in SE
mode
9 11 13 +INB I
Non-inverting input of channel B, connected to
BYPASS pin inside the IC
11 13 15 -INB I Inverting input of channel B
14 16 18 +OUTB O
Channel B + output in BTL mode, high
impedance in SE mode
12 14 16 -OUTB O
Channel B - output in BTL mode, + output in SE
mode
- - Exposed Pad GND Connect exposed pad to GND.
