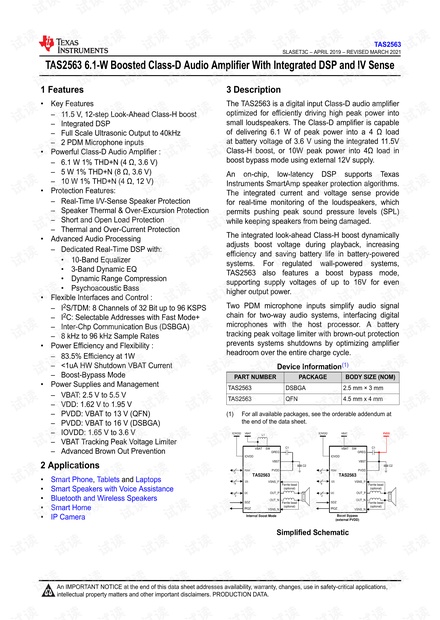

TAS2563 6.1-W Boosted Class-D Audio Amplifier With Integrated DSP and IV Sense
1 Features
• Key Features
– 11.5 V, 12-step Look-Ahead Class-H boost
– Integrated DSP
– Full Scale Ultrasonic Output to 40kHz
– 2 PDM Microphone inputs
• Powerful Class-D Audio Amplifier :
– 6.1 W 1% THD+N (4 Ω, 3.6 V)
– 5 W 1% THD+N (8 Ω, 3.6 V)
– 10 W 1% THD+N (4 Ω, 12 V)
• Protection Features:
– Real-Time I/V-Sense Speaker Protection
– Speaker Thermal & Over-Excursion Protection
– Short and Open Load Protection
– Thermal and Over-Current Protection
• Advanced Audio Processing
– Dedicated Real-Time DSP with:
• 10-Band Equalizer
• 3-Band Dynamic EQ
• Dynamic Range Compression
• Psychoacoustic Bass
• Flexible Interfaces and Control :
– I
2
S/TDM: 8 Channels of 32 Bit up to 96 KSPS
– I
2
C: Selectable Addresses with Fast Mode+
– Inter-Chp Communication Bus (DSBGA)
– 8 kHz to 96 kHz Sample Rates
• Power Efficiency and Flexibility :
– 83.5% Efficiency at 1W
– <1uA HW Shutdown VBAT Current
– Boost-Bypass Mode
• Power Supplies and Management
– VBAT: 2.5 V to 5.5 V
– VDD: 1.62 V to 1.95 V
– PVDD: VBAT to 13 V (QFN)
– PVDD: VBAT to 16 V (DSBGA)
– IOVDD: 1.65 V to 3.6 V
– VBAT Tracking Peak Voltage Limiter
– Advanced Brown Out Prevention
2 Applications
• Smart Phone, Tablets and Laptops
• Smart Speakers with Voice Assistance
• Bluetooth and Wireless Speakers
• Smart Home
• IP Camera
3 Description
The TAS2563 is a digital input Class-D audio amplifier
optimized for efficiently driving high peak power into
small loudspeakers. The Class-D amplifier is capable
of delivering 6.1 W of peak power into a 4 Ω load
at battery voltage of 3.6 V using the integrated 11.5V
Class-H boost, or 10W peak power into 4Ω load in
boost bypass mode using external 12V supply.
An on-chip, low-latency DSP supports Texas
Instruments SmartAmp speaker protection algorithms.
The integrated current and voltage sense provide
for real-time monitoring of the loudspeakers, which
permits pushing peak sound pressure levels (SPL)
while keeping speakers from being damaged.
The integrated look-ahead Class-H boost dynamically
adjusts boost voltage during playback, increasing
efficiency and saving battery life in battery-powered
systems. For regulated wall-powered systems,
TAS2563 also features a boost bypass mode,
supporting supply voltages of up to 16V for even
higher output power.
Two PDM microphone inputs simplify audio signal
chain for two-way audio systems, interfacing digital
microphones with the host processor. A battery
tracking peak voltage limiter with brown-out protection
prevents systems shutdowns by optimizing amplifier
headroom over the entire charge cycle.
Device Information
(1)
PART NUMBER PACKAGE BODY SIZE (NOM)
TAS2563 DSBGA 2.5 mm × 3 mm
TAS2563 QFN 4.5 mm x 4 mm
(1) For all available packages, see the orderable addendum at
the end of the data sheet.
OUT_N
OUT_P
VBST
SW
Ferrite bead
(optional)
GREG
VSNS_N
VSNS_P
Ferrite bead
(optional)
+
-
SDZ
I2S
4
2
I2C
C1
VBAT
TAS2563
C2
L1
PVDD
IOVDD
Internal Boost Mode
Boost Bypass
(external PVDD)
PVDD
PDM
2
IRQZ
VBATIOVDD
OUT_N
OUT_P
VBST
SW
Ferrite bead
(optional)
GREG
VSNS_N
VSNS_P
Ferrite bead
(optional)
+
-
SDZ
I2S
4
2
I2C
C1
VBAT
TAS2563
C2
PVDD
IOVDD
PDM
2
IRQZ
VBATIOVDD

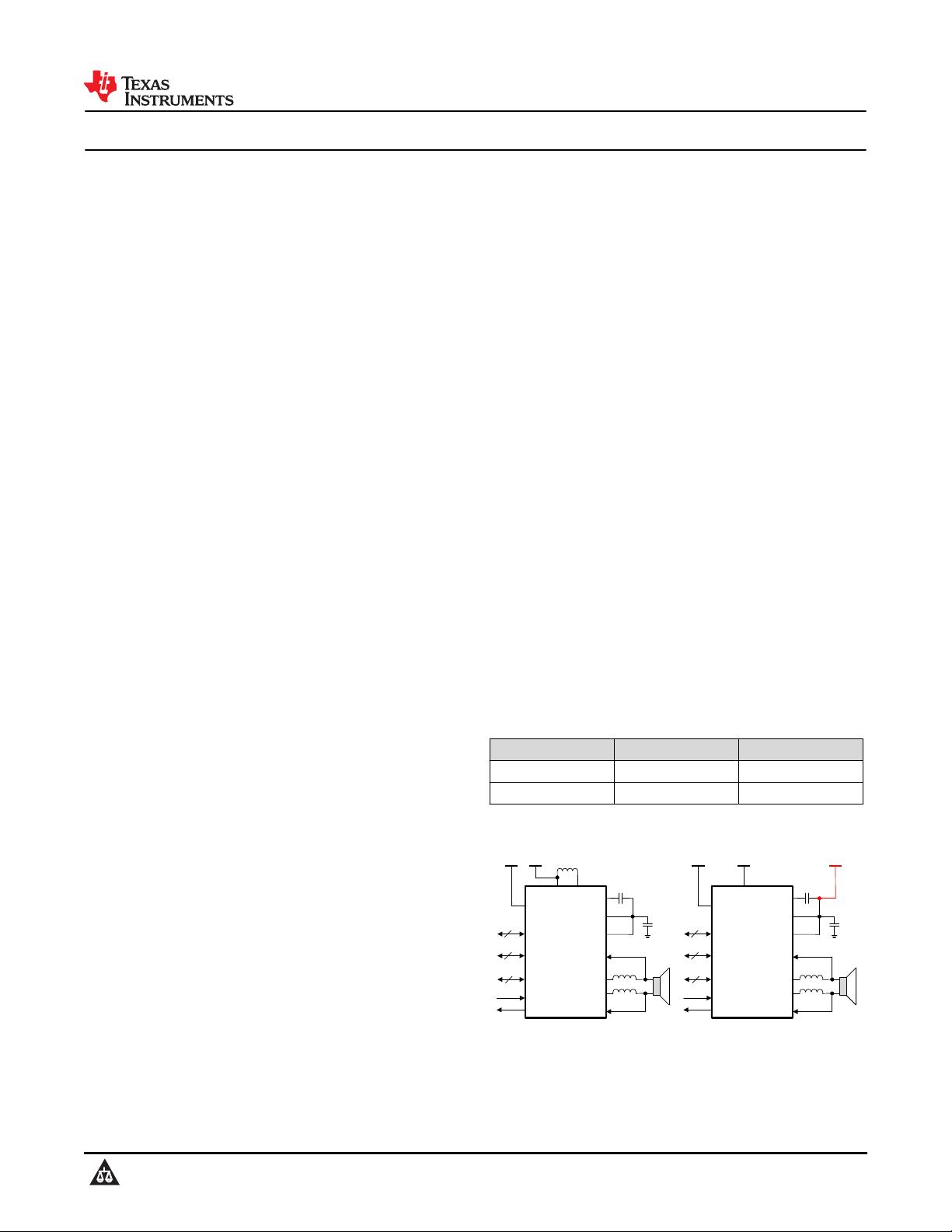

Simplified Schematic
TAS2563
SLASET3C – APRIL 2019 – REVISED MARCH 2021
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,
intellectual property matters and other important disclaimers. PRODUCTION DATA.

Table of Contents
1 Features............................................................................1
2 Applications..................................................................... 1
3 Description.......................................................................1
4 Revision History.............................................................. 2
5 Pin Configuration and Functions...................................3
Pin Functions.................................................................... 4
6 Specifications.................................................................. 6
6.1 Absolute Maximum Ratings ....................................... 6
6.2 ESD Ratings .............................................................. 6
6.3 Recommended Operating Conditions ........................6
6.4 Thermal Information ...................................................7
6.5 Electrical Characteristics ............................................7
6.6 I
2
C Timing Requirements .........................................14
6.7 SPI Timing Requirements ........................................ 15
6.8 PDM Port Timing Requirements .............................. 15
6.9 TDM Port Timing Requirements ...............................15
6.10 Timing Diagrams.....................................................16
6.11 Typical Characteristics............................................ 18
7 Parameter Measurement Information.......................... 28
8 Detailed Description......................................................29
8.1 Overview................................................................... 29
8.2 Functional Block Diagram......................................... 29
8.3 Feature Description...................................................30
8.4 Device Functional Modes..........................................39
8.5 Register Maps...........................................................64
9 Application and Implementation.................................. 95
9.1 Application Information............................................. 95
9.2 Typical Application.................................................... 95
10 Power Supply Recommendations..............................99
10.1 Power Supplies....................................................... 99
10.2 Power Supply Sequencing......................................99
11 Layout.........................................................................100
11.1 Layout Guidelines................................................. 100
11.2 Layout Example.................................................... 101
12 Device and Documentation Support........................105
12.1 Documentation Support........................................ 105
12.2 Receiving Notification of Documentation Updates105
12.3 Support Resources............................................... 105
12.4 Trademarks...........................................................105
12.5 Electrostatic Discharge Caution............................105
12.6 Glossary................................................................105
13 Mechanical, Packaging, and Orderable
Information.................................................................. 105
4 Revision History
NOTE: Page numbers for previous revisions may differ from page numbers in the current version.
Changes from Revision B (December 2020) to Revision C (March 2021) Page
• Added QFN THDN Isense.................................................................................................................................. 7
• Removed Idle Channel QFN...............................................................................................................................7
• Added Current Consumption with Speaker Protection ON.................................................................................7
• Updated DNR QFN PAckage..............................................................................................................................7
• Updated DNR for Isense and Vsense.................................................................................................................7
• Removed Group Delay....................................................................................................................................... 7
• Updated Captive Load for fast I2C................................................................................................................... 14
• Merged Efficency vs Output Power for both packages.....................................................................................18
• Added AVDD and VBAT Idel Current QFN Package........................................................................................ 18
• Merged Vsense characteristics for both packages........................................................................................... 18
Changes from Revision A (August 2019) to Revision B (December 2020) Page
• Added RPP mechanical data .............................................................................................................................1
• Changed device status to Mixed Production...................................................................................................... 1
• Added QFN package as Advanced Information ................................................................................................ 1
Changes from Revision * (April 2019) to Revision A (August 2019) Page
• Changed TAS2562 from Advance Information to Production Data ................................................................... 1
TAS2563
SLASET3C – APRIL 2019 – REVISED MARCH 2021
www.ti.com
2 Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TAS2563

5 Pin Configuration and Functions
1 2 3 4 5 6
A
B
C
D
E
F
G
Not to scale
PDMCK PDMD SDOUT2 SDIN2 SBCLK2 IOVDD
SDZ SBCLK1 FSYNC SCL_SELZ SDA_MOSI DREG
SDOUT1 SDIN1
SPII2CZ
_MISO
ADDR
_SPICLK
IRQZ VDD
VBAT VBAT VSNS_N GREG VSNS_P GPIO
BGND BGND BGND GND PGND PGND
SW SW SW GNDD OUT_P OUT_N
VBST VBST VBST PVDD PVDD PVDD

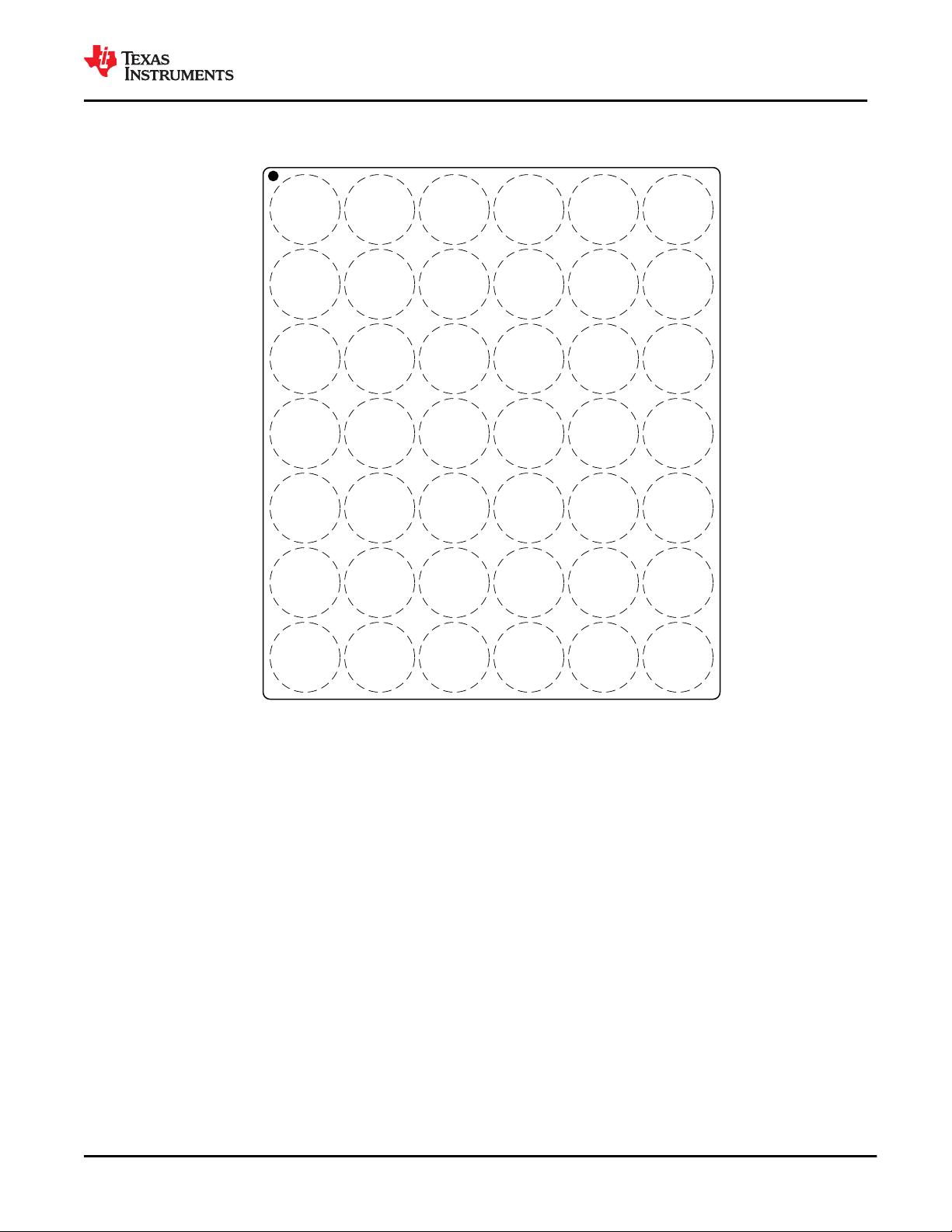

Figure 5-1. YBG Package 42-Ball DSBGA Top View
www.ti.com
TAS2563
SLASET3C – APRIL 2019 – REVISED MARCH 2021
Copyright © 2021 Texas Instruments Incorporated
Submit Document Feedback
3
Product Folder Links: TAS2563

VBST
16
SW
15
GNDB
14
GREG
13
SPII2CZ_MISO
12
SDIN1
11
SDOUT1
10
NC
9
18
IRQZ
19
ADDR_SPICLK
20
VSNS_P
21
OUT_P
22
GPIO
23
NC
17
2
DREG
3
SDA_MOSI
4
SCL_SELZ
5
FSYNC
6
SBCLK1
7
SDZ
PVDD
25
OUT_N
26
GNDP 27
GNDD
28
VSNS_N
29
VBAT
30
VDD
31
32
1
8
24
IOVDD
PDMCLK
NCPDMD
NC
Not to scale

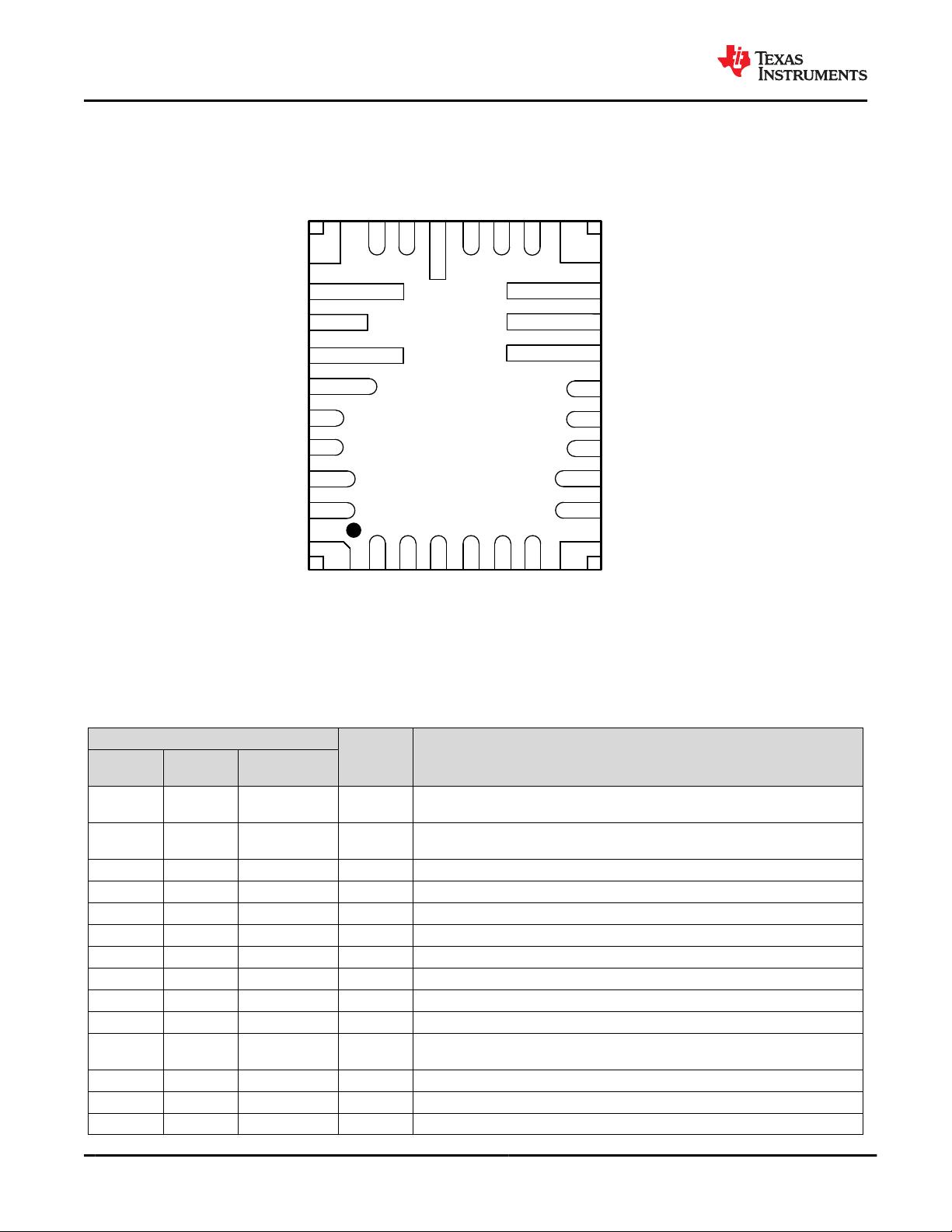

Figure 5-2. RPP Package 32-pin QFN Top View
Pin Functions
PIN
TYPE DESCRIPTION
NAME
DSBGA
NO.
QFN NO.
ADDR_SPI
CLK
C4 19 I
I2C Mode - Address selection pin See General I2C operation. SPI Mode - SPI
clock
DREG B6 2 P
Digital core voltage regulator output. Bypass to GND with a cap. Do not connect
to external load.
FSYNC B3 5 I I2S word clock or TDM frame sync for ASI1 and ASI2 channels.
GNDB E1, E2, E3 14 P Boost ground. Connect to PCB GND plane.
GNDD F4 28 P Digital ground. Connect to PCB GND plane.
GND E4 N/A P Analog ground. Connect to PCB GND plane.
GNDP E5,E6 27 P Power stage ground. Connect to PCB GND plane.
GPIO D6 22 IO General purpose input-ouput or MCLK base on register configuration.
GREG D4 13 P High-side gate CP regulator output. Do not connect to external load.
IOVDD A6 32 P 3.3-V/1.8-V IOVDD Supply
IRQZ C5 18 O
Open drain, active low interrupt pin. Pull up to IOVDD with resistor if optional
internal pull up is not used.
OUT_N F6 26 O Class-D negative output for receiver channel.
OUT_P F5 21 O Class-D positive output for receiver channel.
PDMCLK A1 9 IO PDM clock.
TAS2563
SLASET3C – APRIL 2019 – REVISED MARCH 2021
www.ti.com
4 Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TAS2563

PIN
TYPE DESCRIPTION
NAME
DSBGA
NO.
QFN NO.
PDMD A2 24 IO PDM data.
PVDD G4, G5, G6 25 P Power stage supply.
SBCLK1 B2 6 I ASI1 channel I2S/TDM serial bit clock.
SBCLK2 A5 I ASI2 channel I2S/TDM serial bit clock.
SDA_MOSI B5 3 IO
I2C Mode: I
2
C Data Pin. Pull up to IOVDD with a resistor. SPI Mode: Serial data
input pin.
SDIN1 C2 11 I ASI1 channel I2S/TDM serial data input.
SDIN2 A4 I ASI2 channel I2S/TDM serial data input.
SDOUT1 C1 10 IO ASI1 channel I2S/TDM serial data output.
SDOUT2 A3 IO ASI2 channel I2S/TDM serial data output.
SDZ B1 7 I Active low hardware shutdown.
SCL_SELZ B4 4 IO
I2C Mode: I2C clock pin. Pull up to IOVDD with a resistor. SPI Mode: active low
chip select.
SPII2CZ_MI
SO
C3 12 IO
Pin is queried on power-up. Short to GND for I2C Mode. Pull to IOVDD with
resistor for SPI mode. SPI serial data output pin.
SW F1, F2, F3 15 P Boost converter switch input.
VBAT D1, D2 30 P
Battery power supply input. Connect to 2.7 V to 5.5 V supply and decouple with
a cap.
VBST G1, G2, G3 16 P Boost converter output. Do not connect to external load.
VDD C6 31 P
Analog, digital, and IO power supply. Connect to 1.8 V supply and decouple to
GND with cap.
VSNS_N D3 29 I
Voltage sense negative input. Connect to Class-D OUT_N output after Ferrite
bead filter.
VSNS_P D5 20 I
Voltage sense positive input. Connect to Class-D OUT_P output after Ferrite
bead filter.
NC 1, 8, 17 No Connect.
www.ti.com
TAS2563
SLASET3C – APRIL 2019 – REVISED MARCH 2021
Copyright © 2021 Texas Instruments Incorporated
Submit Document Feedback
5
Product Folder Links: TAS2563
剩余122页未读,继续阅读
资源评论

「已注销」
- 粉丝: 0
- 资源: 1

上传资源 快速赚钱
我的内容管理 收起
我的资源 快来上传第一个资源
我的收益
登录查看自己的收益我的积分 登录查看自己的积分
我的C币 登录后查看C币余额
我的收藏
我的下载
下载帮助

会员权益专享
安全验证
文档复制为VIP权益,开通VIP直接复制
