具有中断输出、复位引脚和配置寄存器的 TCA9539-Q1 汽车类低压 16 位 I
2
C 和
SMBus 低功耗 I/O 扩展器
1 特性
• AEC-Q100(等级 1):符合汽车应用要求
• 提供功能安全
– 可帮助进行功能安全系统设计的文档
• I
2
C 至并行端口扩展器
• 开漏电路低电平有效中断输出
• 低电平有效复位输入
• 5V 耐压输入和输出端口
• 兼容大多数微控制器
• 400kHz 快速 I
2
C 总线
• 极性反转寄存器
• 内部上电复位
• 加电时无干扰
• 通过两个硬件地址引脚寻址,以便使用多达 4 个器
件
• 锁存输出,用于直接驱动 LED
• 闩锁性能超过 100mA,符合 JESD 78 II 类规范的
要求
• ESD 保护性能超过 JESD 22 规范要求
– 2000V 人体放电模型 (A114-A)
– 1000V 带电器件模型 (C101)
2 应用
• 汽车信息娱乐系统、高级驾驶辅助系统 (ADAS)、
汽车车身电子装置、混合动力汽车 (HEV)、电动车
(EV) 和动力总成
• 工业自动化、工厂自动化、楼宇自动化、测试与测
量、电子销售点终端 (EPOS)
• I
2
C GPIO 扩展
3 说明
TCA9539-Q1 是一款 24 引脚器件,可为两线双向 I
2
C
总线(或 SMBus 协议)提供 16 位通用并行输入和输
出 (I/O) 扩展。该器件的工作电源电压 (V
CC
) 范围为
1.65V 至 3.6V,并且支持 100kHz(I
2
C 标准模式)和
400kHz(I
2
C 快速模式)两种时钟频率。当开关、传
感器、按钮、LED、风扇以及其他相似器件需要额外的
I/O 时,I/O 扩展器(如 TCA9539-Q1)可提供简单解
决方案。
TCA9539-Q1 包括一项功能:当输入端口状态发生变
化时,在 INT 引脚上生成中断。硬件可选地址引脚 A0
和 A1 最多允许四个 TCA9539-Q1 器件位于同一 I
2
C
总线上。也可以通过下电上电生成上电复位,将此器件
复位为默认状态。此外,TCA9539-Q1 还具有一个硬
件 RESET 引脚,可用于将器件复位为默认状态。
TCA9539-Q1 I
2
C I/O 扩展器符合汽车类应用的要求。
器件信息
器件型号
封装类型
(1)
封装尺寸(标称值)
TCA9539-Q1 TSSOP (24) 7.80mm × 4.40mm
(1) 如需了解所有可用封装,请参阅数据表末尾的可订购产品附
录。
空白
TCA9539-Q1
Peripheral Devices
I
2
C or SMBus Controller
(e.g. Processor)
SDA
SCL
INT
P00
P01
RESET
P17
V
CC
A1
GND
A0
x /RESET,
ENABLE, or
control inputs
x /INT or status
outputs
x LEDs

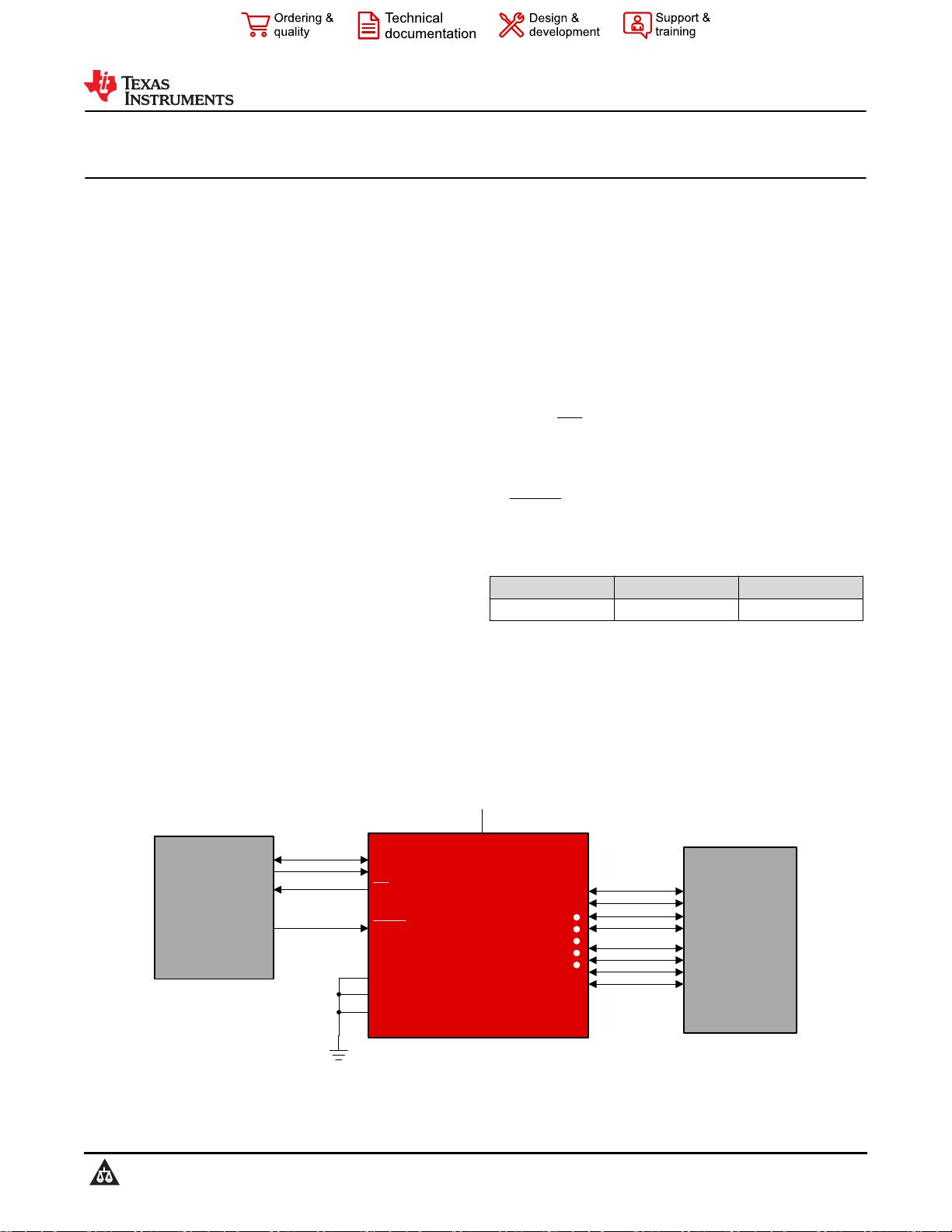

简化版方框图
TCA9539-Q1
ZHCSEZ2D – JANUARY 2014 – REVISED OCTOBER 2021
本文档旨在为方便起见,提供有关 TI 产品中文版本的信息,以确认产品的概要。有关适用的官方英文版本的最新信息,请访问
www.ti.com,其内容始终优先。TI 不保证翻译的准确性和有效性。在实际设计之前,请务必参考最新版本的英文版本。
English Data Sheet: SCPS254

Table of Contents
1 特性................................................................................... 1
2 应用................................................................................... 1
3 说明................................................................................... 1
4 Revision History.............................................................. 2
5 Pin Configuration and Functions...................................3
6 Specifications.................................................................. 4
6.1 Absolute Maximum Ratings........................................ 4
6.2 ESD Ratings............................................................... 4
6.3 Recommended Operating Conditions.........................4
6.4 Thermal Information....................................................5
6.5 Electrical Characteristics.............................................5
6.6 I
2
C Interface Timing Requirements.............................6
6.7 RESET Timing Requirements..................................... 7
6.8 Switching Characteristics............................................7
6.9 Typical Characteristics................................................8
7 Parameter Measurement Information.......................... 11
8 Detailed Description......................................................15
8.1 Overview................................................................... 15
8.2 Functional Block Diagram......................................... 16
8.3 Feature Description...................................................17
8.4 Device Functional Modes..........................................18
8.5 Programming............................................................ 18
8.6 Register Maps...........................................................20
9 Power Supply Recommendations................................29
9.1 Power-On Reset Requirements................................ 29
10 Layout...........................................................................31
10.1 Layout Guidelines................................................... 31
10.2 Layout Example...................................................... 32
11 Device and Documentation Support..........................33
11.1 Documentation Support.......................................... 33
11.2 接收文档更新通知................................................... 33
11.3 支持资源..................................................................33
11.4 Trademarks............................................................. 33
11.5 Electrostatic Discharge Caution.............................. 33
11.6 术语表..................................................................... 33
4 Revision History
Changes from Revision C (December 2018) to Revision D (October 2021) Page
• 添加了特性:
提供功能安全
................................................................................................................................1
• 将提到的旧术语实例全局更改为控制器和目标。................................................................................................ 1
• Corrected the pin number for pins A0, SCL, SDA, and VCC in the TCA9539-Q1 Layout ............................... 32
Changes from Revision B (April 2016) to Revision C (December 2018) Page
• Changed the appearance of the PW pinout image ............................................................................................3
• Removed (5 V) from the V
CC
label in 图 9-1 ....................................................................................................25
Changes from Revision A (September 2015) to Revision B (April 2016) Page
• 将器件状态从
产品预发布
更改为
量产数据
......................................................................................................... 1
Changes from Revision * (January 2014) to Revision A (September 2015) Page
• 添加了“ESD 等级”表、“特性说明”部分、“器件功能模式”、“应用和实施”部分、“电源相关建议”部
分、“布局”部分、“器件和文档支持”部分以及“机械、封装和可订购信息”部分.......................................1
TCA9539-Q1
ZHCSEZ2D – JANUARY 2014 – REVISED OCTOBER 2021
www.ti.com.cn
2 Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TCA9539-Q1

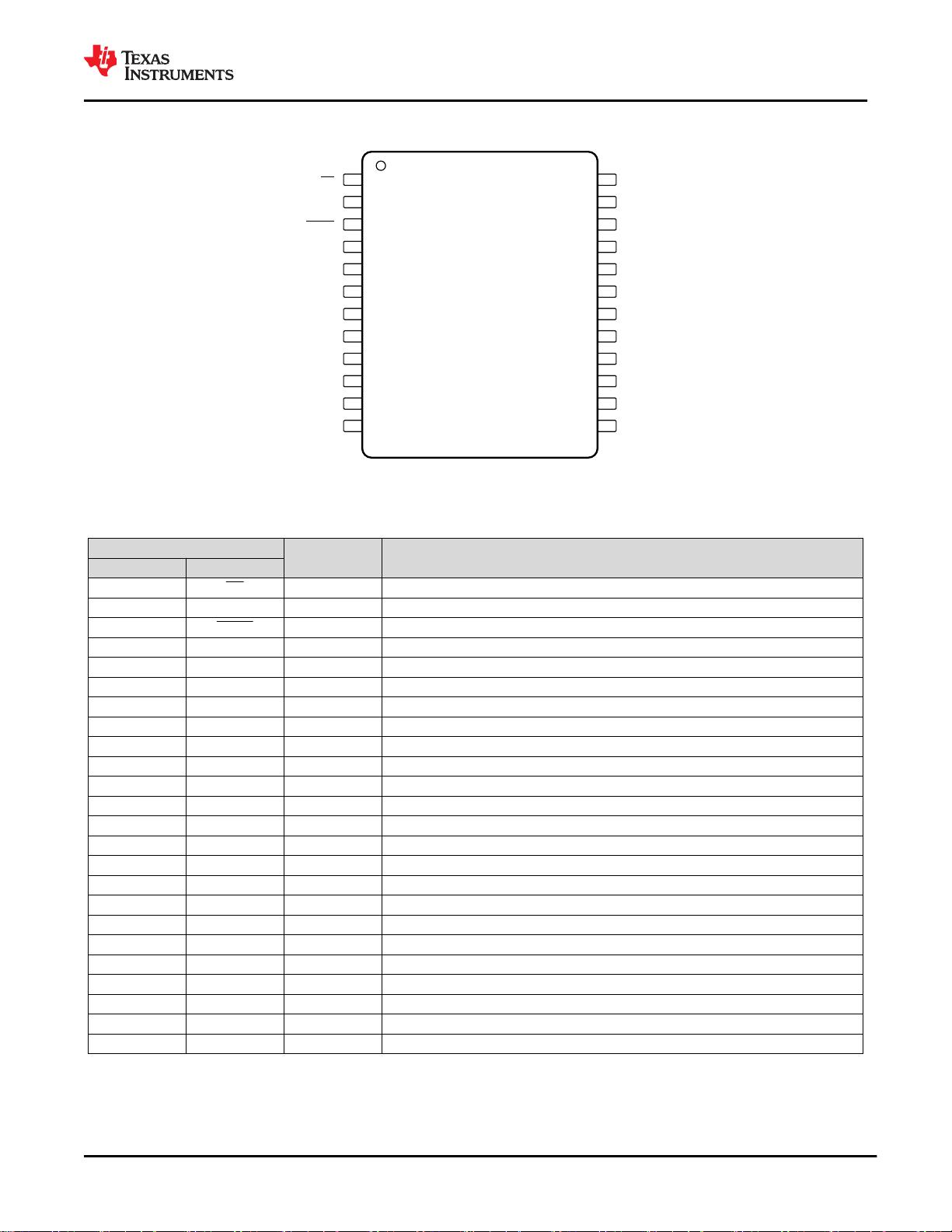

5 Pin Configuration and Functions
1INT 24
V
CC
2A1 23 SDA
3RESET 22 SCL
4P00 21 A0
5P01 20 P17
6P02 19 P16
7P03 18 P15
8P04 17 P14
9P05 16 P13
10P06 15 P12
11P07 14 P11
12GND 13 P10
Not to scale
图 5-1. PW Package, 24-Pin TSSOP, Top View
表 5-1. Pin Functions
PIN
I/O DESCRIPTION
NO. NAME
1 INT O Interrupt open-drain output. Connect to V
CC
through a pull-up resistor
2 A1 I Address input. Connect directly to V
CC
or ground
3 RESET I Active-low reset input. Connect to V
CC
through a pull-up resistor if no active connection is used
4 P00 I/O P-port input-output. Push-pull design structure. At power-on, P00 is configured as an input
5 P01 I/O P-port input-output. Push-pull design structure. At power-on, P01 is configured as an input
6 P02 I/O P-port input-output. Push-pull design structure. At power-on, P02 is configured as an input
7 P03 I/O P-port input-output. Push-pull design structure. At power-on, P03 is configured as an input
8 P04 I/O P-port input-output. Push-pull design structure. At power-on, P04 is configured as an input
9 P05 I/O P-port input-output. Push-pull design structure. At power-on, P05 is configured as an input
10 P06 I/O P-port input-output. Push-pull design structure. At power-on, P06 is configured as an input
11 P07 I/O P-port input-output. Push-pull design structure. At power-on, P07 is configured as an input
12 GND
—
Ground
13 P10 I/O P-port input-output. Push-pull design structure. At power-on, P10 is configured as an input
14 P11 I/O P-port input-output. Push-pull design structure. At power-on, P11 is configured as an input
15 P12 I/O P-port input-output. Push-pull design structure. At power-on, P12 is configured as an input
16 P13 I/O P-port input-output. Push-pull design structure. At power-on, P13 is configured as an input
17 P14 I/O P-port input-output. Push-pull design structure. At power-on, P14 is configured as an input
18 P15 I/O P-port input-output. Push-pull design structure. At power-on, P15 is configured as an input
19 P16 I/O P-port input-output. Push-pull design structure. At power-on, P16 is configured as an input
20 P17 I/O P-port input-output. Push-pull design structure. At power-on, P17 is configured as an input
21 A0 I Address input. Connect directly to V
CC
or ground
22 SCL I Serial clock bus. Connect to V
CC
through a pull-up resistor
23 SDA I/O Serial data bus. Connect to V
CC
through a pull-up resistor
24 V
CC
—
Supply voltage
www.ti.com.cn
TCA9539-Q1
ZHCSEZ2D – JANUARY 2014 – REVISED OCTOBER 2021
Copyright © 2021 Texas Instruments Incorporated
Submit Document Feedback
3
Product Folder Links: TCA9539-Q1

6 Specifications
6.1 Absolute Maximum Ratings
over operating free-air temperature range (unless otherwise noted)
(1)
MIN MAX UNIT
V
CC
Supply voltage
–0.5
3.6 V
V
I
Input voltage
(2)
–0.5
6 V
V
O
Output voltage
(2)
–0.5
6 V
I
IK
Input clamp current V
I
< 0
–20
mA
I
OK
Output clamp current V
O
< 0
–20
mA
I
IOK
Input-output clamp current V
O
< 0 or V
O
> V
CC
±20 mA
I
OL
Continuous output low current V
O
= 0 to V
CC
50 mA
I
OH
Continuous output high current V
O
= 0 to V
CC
–50
mA
I
CC
Continuous current through GND
–250
mA
Continuous current through V
CC
160
T
j(MAX)
Maximum junction temperature 135 °C
T
stg
Storage temperature
–65
150 °C
(1) Operation outside the Absolute Maximum Ratings may cause permanent device damage. Absolute Maximum Ratings do not imply
functional operation of the device at these or any other conditions beyond those listed under Recommended Operating Conditions. If
used outside the Recommended Operating Conditions but within the Absolute Maximum Ratings, the device may not be fully
functional, and this may affect device reliability, functionality, performance, and shorten the device lifetime.
(2) The input negative voltage and output voltage ratings may be exceeded if the input and output current ratings are observed.
6.2 ESD Ratings
VALUE UNIT
V
(ESD)
Electrostatic discharge
Human-body model (HBM), per AEC Q100-002
(1)
±2000
V
Charged-device model (CDM), per AEC Q100-011 ±1000
(1) AEC Q100-002 indicates that HBM stressing shall be in accordance with the ANSI/ESDA/JEDEC JS-001 specification.
6.3 Recommended Operating Conditions
over operating free-air temperature range (unless otherwise noted)
MIN MAX UNIT
V
CC
Supply voltage 1.65 3.6 V
V
I/O
I/O ports voltage
SCL, SDA, A0, A1, RESET, INT
(1)
–0.5
5.5 V
For P00–P07, P10–P17 configured as outputs –0.5
3.6 V
For P00–P07, P10–P17 configured as inputs
(1)
–0.5
5.5 V
V
IH
High-level input voltage
SCL, SDA, A0, A1, RESET, P07–P00, P10–P17
0.7 × V
CC
V
V
IL
Low-level input voltage
SCL, SDA, A0, A1, RESET, P07–P00, P10–P17
0.3 × V
CC
V
I
OH
High-level output current
P00–P07, P10–P17 –10
mA
I
OL
(2)
Low-level output current
P00–P07, P10–P17
T
j
≤ 65°C
25
mA
T
j
= 85°C 18
T
j
= 105°C 9
T
j
= 125°C 4.5
T
j
= 135°C 3.5
TCA9539-Q1
ZHCSEZ2D – JANUARY 2014 – REVISED OCTOBER 2021
www.ti.com.cn
4 Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TCA9539-Q1

6.3 Recommended Operating Conditions (continued)
over operating free-air temperature range (unless otherwise noted)
MIN MAX UNIT
I
OL
(2)
Low-level output current INT, SDA
T
j
≤ 85°C
6
mA
T
j
= 105°C 3
T
j
= 125°C 1.8
T
j
= 135°C 1.5
T
A
Operating free-air temperature
–40
125 °C
(1) For voltages applied above V
CC
, an increase in I
CC
results.
(2) The values shown apply to specific junction temperatures. See the
节
9.2.1.1 section on how to calculate the junction temperature.
6.4 Thermal Information
THERMAL METRIC
(1)
TCA9539-Q1
UNITPW (TSSOP)
24 PINS
R
θJA
Junction-to-ambient thermal resistance 108.8 °C/W
R
θJC(top)
Junction-to-case (top) thermal resistance 54 °C/W
R
θJB
Junction-to-board thermal resistance 62.8 °C/W
ψ
JT
Junction-to-top characterization parameter 11.1 °C/W
ψ
JB
Junction-to-board characterization parameter 62.3 °C/W
(1) For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application
report, SPRA953.
6.5 Electrical Characteristics
over recommended operating free-air temperature range (unless otherwise noted)
PARAMETER TEST CONDITIONS V
CC
MIN TYP
(1)
MAX UNIT
V
IK
Input diode clamp voltage
I
I
= –18 mA
1.65 V to 3.6 V
–1.2
V
V
PORR
Power-on reset voltage, V
CC
rising
V
I
= V
CC
or GND 1.65 V to 3.6 V 1.2 1.5 V
V
PORF
Power-on reset voltage, V
CC
falling
V
I
= V
CC
or GND 1.65 V to 3.6 V 0.75 1 V
V
OH
P-port high-level output voltage
(2)
I
OH
= –8 mA
1.65 V 1.2
V
2.3 V 1.8
3 V 2.6
3.6 V 3.3
I
OH
= –10 mA
1.65 V 1
2.3 V 1.7
3 V 2.5
3.6 V 3.2
I
OL
SDA V
OL
= 0.4 V
1.65 V to 3.6 V
3
mAP port
(3)
V
OL
= 0.5 V 8
V
OL
= 0.7 V 10
INT V
OL
= 0.4 V 3
I
I
SCL, SDA
V
I
= V
CC
or GND 1.65 V to 3.6 V
±1
µA
A0, A1, RESET ±1
I
IH
P port V
I
= V
CC
1.65 V to 3.6 V 1 µA
I
IL
P port V
I
= GND 1.65 V to 3.6 V
–1
µA
www.ti.com.cn
TCA9539-Q1
ZHCSEZ2D – JANUARY 2014 – REVISED OCTOBER 2021
Copyright © 2021 Texas Instruments Incorporated
Submit Document Feedback
5
Product Folder Links: TCA9539-Q1
剩余40页未读,继续阅读
资源评论

不觉明了
- 粉丝: 701
- 资源: 4046

上传资源 快速赚钱
我的内容管理 收起
我的资源 快来上传第一个资源
我的收益
登录查看自己的收益我的积分 登录查看自己的积分
我的C币 登录后查看C币余额
我的收藏
我的下载
下载帮助

会员权益专享
安全验证
文档复制为VIP权益,开通VIP直接复制
