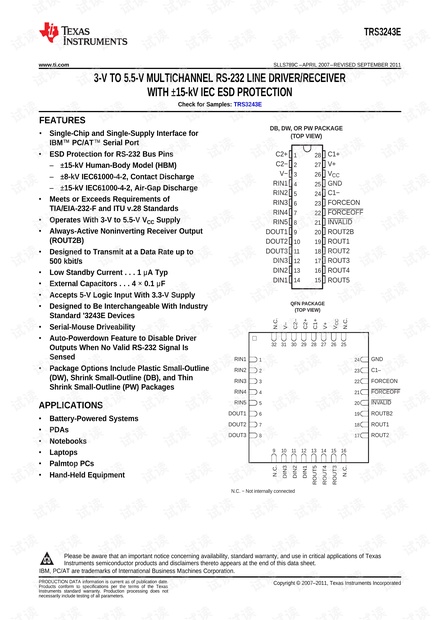

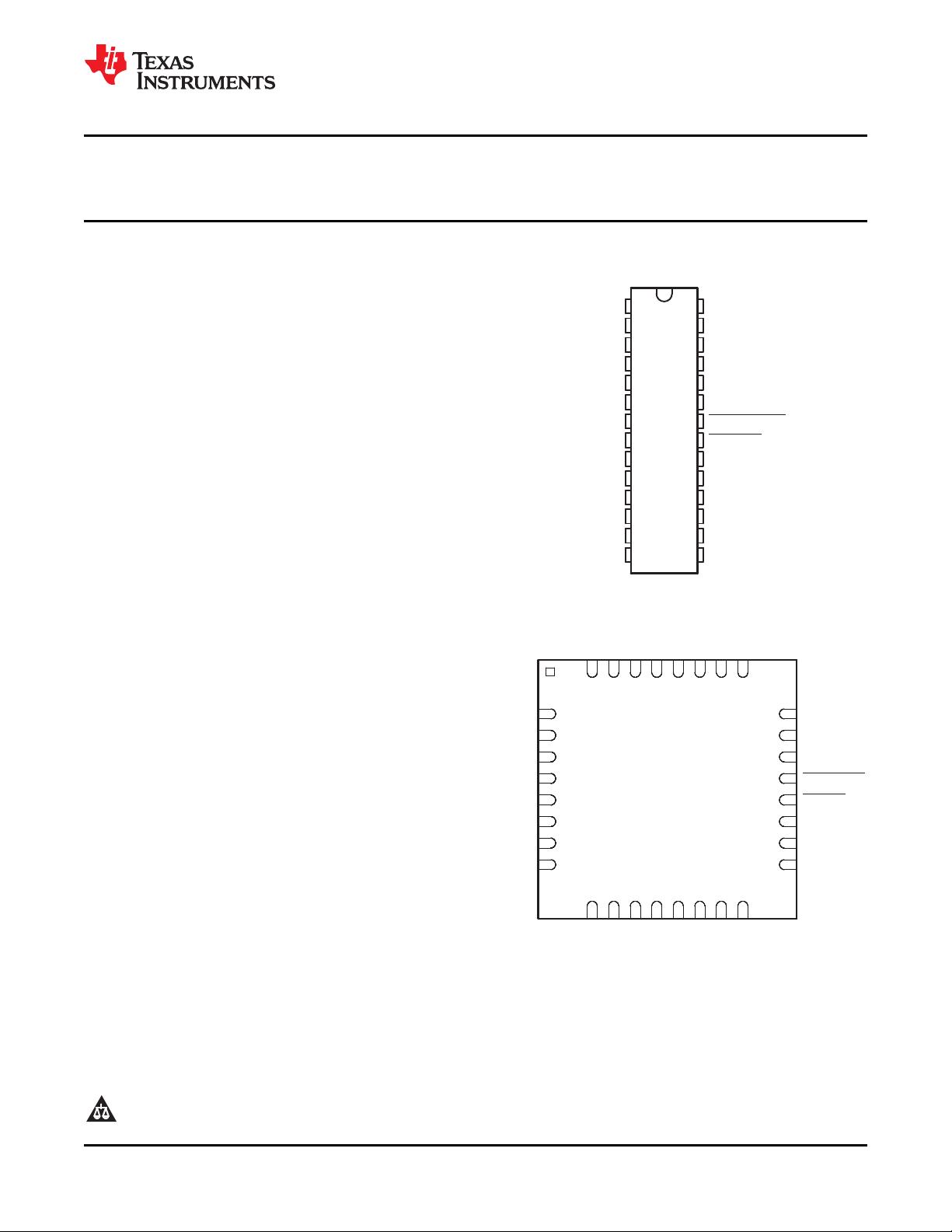

DB, DW, OR PW PACKAGE
(TOP VIEW)
QFN PACKAGE
(TOP VIEW)
GND
C1–
FORCEON
FORCEOFF
INVALID
ROUTB2
ROUT1
ROUT2
RIN1
RIN2
RIN3
RIN4
RIN5
DOUT1
DOUT2
DOUT3
N.C.
V–
C2–
C2+
C1+
V+
V
CC
N.C.
N.C.
DIN3
DIN2
DIN1
ROUT5
ROUT4
ROUT3
N.C.
1
2
3
4
5
6
7
8
24
23
22
21
20
19
18
17
3132 30 29 28 27 26 25
109 11 12 13 14 15 16
N.C. − Not internally connected
TRS3243E
www.ti.com
SLLS789C –APRIL 2007– REVISED SEPTEMBER 2011
3-V TO 5.5-V MULTICHANNEL RS-232 LINE DRIVER/RECEIVER
WITH ±15-kV IEC ESD PROTECTION
Check for Samples: TRS3243E
1
FEATURES
2
• Single-Chip and Single-Supply Interface for
IBM™ PC/AT™ Serial Port
• ESD Protection for RS-232 Bus Pins
– ±15-kV Human-Body Model (HBM)
– ±8-kV IEC61000-4-2, Contact Discharge
– ±15-kV IEC61000-4-2, Air-Gap Discharge
• Meets or Exceeds Requirements of
TIA/EIA-232-F and ITU v.28 Standards
• Operates With 3-V to 5.5-V V
CC
Supply
• Always-Active Noninverting Receiver Output
(ROUT2B)
• Designed to Transmit at a Data Rate up to
500 kbit/s
• Low Standby Current . . . 1 μA Typ
• External Capacitors . . . 4 × 0.1 μF
• Accepts 5-V Logic Input With 3.3-V Supply
• Designed to Be Interchangeable With Industry
Standard '3243E Devices
• Serial-Mouse Driveability
• Auto-Powerdown Feature to Disable Driver
Outputs When No Valid RS-232 Signal Is
Sensed
• Package Options Include Plastic Small-Outline
(DW), Shrink Small-Outline (DB), and Thin
Shrink Small-Outline (PW) Packages
APPLICATIONS
• Battery-Powered Systems
• PDAs
• Notebooks
• Laptops
• Palmtop PCs
• Hand-Held Equipment
1
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas
Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
2IBM, PC/AT are trademarks of International Business Machines Corporation.
PRODUCTION DATA information is current as of publication date.
Copyright © 2007–2011, Texas Instruments Incorporated
Products conform to specifications per the terms of the Texas
Instruments standard warranty. Production processing does not
necessarily include testing of all parameters.

TRS3243E
SLLS789C –APRIL 2007– REVISED SEPTEMBER 2011
www.ti.com
DESCRIPTION/ORDERING INFORMATION
The TRS3243E device consists of three line drivers, five line receivers, and a dual charge-pump circuit with
±15-kV ESD (HBM and IEC61000-4-2, Air-Gap Discharge) and ±8-kV ESD (IEC61000-4-2, Contact Discharge)
protection on serial-port connection pins. The device meets the requirements of TIA/EIA-232-F and provides the
electrical interface between an asynchronous communication controller and the serial-port connector. This
combination of drivers and receivers matches that needed for the typical serial port used in an IBM PC/AT, or
compatible. The charge pump and four small external capacitors allow operation from a single 3-V to 5.5-V
supply. In addition, the device includes an always-active noninverting output (ROUT2B), which allows
applications using the ring indicator to transmit data while the device is powered down. The device operates at
data signaling rates up to 250 kbit/s and a maximum of 30-V/μs driver output slew rate.
Flexible control options for power management are available when the serial port is inactive. The
auto-powerdown feature functions when FORCEON is low and FORCEOFF is high. During this mode of
operation, if the device does not sense a valid RS-232 signal, the driver outputs are disabled. If FORCEOFF is
set low, both drivers and receivers (except ROUT2B) are shut off, and the supply current is reduced to 1 μA.
Disconnecting the serial port or turning off the peripheral drivers causes the auto-powerdown condition to occur.
Auto-powerdown can be disabled when FORCEON and FORCEOFF are high, and should be done when driving
a serial mouse. With auto-powerdown enabled, the device is activated automatically when a valid signal is
applied to any receiver input. The INVALID output is used to notify the user if an RS-232 signal is present at any
receiver input. INVALID is high (valid data) if any receiver input voltage is greater than 2.7 V or less than –2.7 V
or has been between –0.3 V and 0.3 V for less than 30 μs. INVALID is low (invalid data) if all receiver input
voltages are between –0.3 V and 0.3 V for more than 30 μs. Refer to Figure 5 for receiver input levels.
The TRS3243EC is characterized for operation from 0°C to 70°C. The TRS3243EI is characterized for operation
from –40°C to 85°C.
Table 1. ORDERING INFORMATION
T
A
PACKAGE
(1)
ORDERABLE PART NUMBER TOP-SIDE MARKING
SSOP – DB Reel of 2000 TRS3243ECDBR TRS3243EC
SOP – DW Reel of 2000 TRS3243ECDWR TRS3243EC
0°C to 70°C
TSSOP – PW Reel of 2000 TRS3243ECPWR RS43EC
QFN – RHB Reel of 2000 TRS3243ECRHBR RS43EC
SSOP – DB Reel of 2000 TRS3243EIDBR TRS3243ECI
SOP – DW Reel of 2000 TRS3243EIDWR TRS3243ECI
–40°C to 85°C
TSSOP – PW Reel of 2000 TRS3243EIPWR RS43EI
QFN – RHB Reel of 2000 TRS3243EIRHBR RS43EI
(1) For the most current package and ordering information, see the Package Option Addendum at the end of this document, or see the TI
website at www.ti.com.
2 Submit Documentation Feedback Copyright © 2007–2011, Texas Instruments Incorporated
Product Folder Link(s): TRS3243E

TRS3243E
www.ti.com
SLLS789C –APRIL 2007– REVISED SEPTEMBER 2011
FUNCTION TABLES
ABC
Each Driver
(1)
INPUTS OUTPUT
DRIVER STATUS
VALID RIN
DIN FORCEON FORCEOFF DOUT
RS-232 LEVEL
X X L X Z Powered off
L H H X H
Normal operation with
auto-powerdown disabled
H H H X L
L L H Yes H
Normal operation with
auto-powerdown enabled
H L H Yes L
Powered off by auto-powerdown
X L H No Z
feature
(1) H = high level, L = low level, X = irrelevant, Z = high impedance
Each Receiver
(1)
INPUTS OUTPUT
RECEIVER STATUS
RIN FORCEON FORCEOFF ROUT
X X L Z Powered off
L X H H
Normal operation with
H X H L
auto-powerdown disabled/enabled
Open X H H
(1) H = high level, L = low level, X = irrelevant, Z = high impedance (off), Open = input disconnected or connected driver off
ROUT2B and Outputs INVALID
(1)
INPUTS OUTPUTS
OUTPUT STATUS
VALID RIN
RIN2 FORCEON FORCEOFF INVALID ROUT2B
RS-232 LEVEL
Yes L X X H L
Yes H X X H H
Always active
Yes Open X X H L
No Open X X L L
(1) H = high level, L = low level, X = irrelevant, Z = high impedance (off), Open = input disconnected or connected driver off
Copyright © 2007–2011, Texas Instruments Incorporated Submit Documentation Feedback 3
Product Folder Link(s): TRS3243E

DIN3
DIN2
DIN1
DOUT3
DOUT2
DOUT1
Auto-powerdown INVALID
RIN1
RIN2
RIN3
RIN4
RIN5
FORCEOFF
FORCEON
ROUT1
ROUT2B
ROUT2
ROUT3
ROUT4
ROUT5
14
13
12
22
23
19
20
18
17
16
15
9
10
11
21
4
5
6
7
8
TRS3243E
SLLS789C –APRIL 2007– REVISED SEPTEMBER 2011
www.ti.com

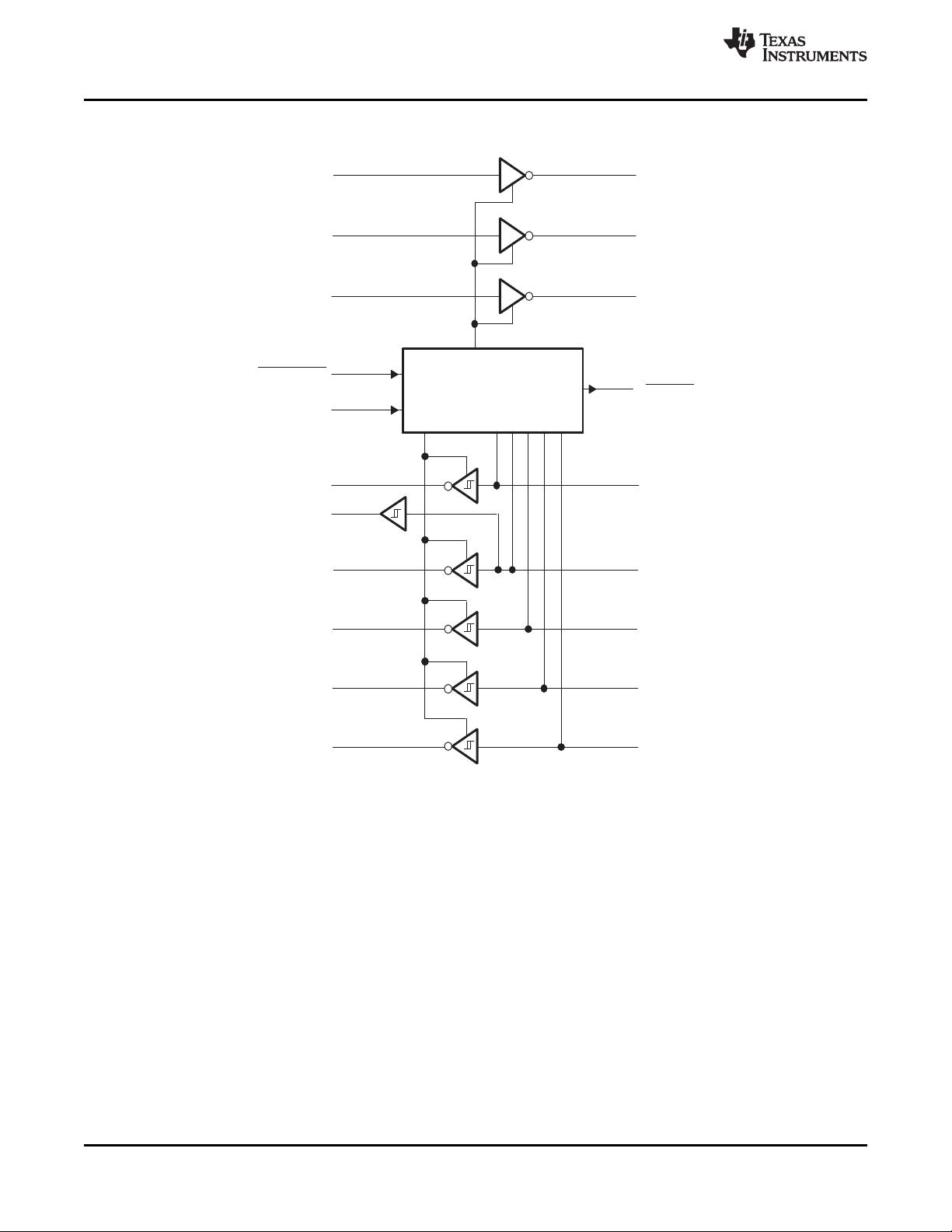

LOGIC DIAGRAM (POSITIVE LOGIC)
4 Submit Documentation Feedback Copyright © 2007–2011, Texas Instruments Incorporated
Product Folder Link(s): TRS3243E

TRS3243E
www.ti.com
SLLS789C –APRIL 2007– REVISED SEPTEMBER 2011
Absolute Maximum Ratings
(1)
over operating free-air temperature range (unless otherwise noted)
MIN MAX UNIT
V
CC
Supply voltage range
(2)
–0.3 6 V
V+ Positive output supply voltage range
(2)
–0.3 7 V
V– Negative output supply voltage range
(2)
0.3 –7 V
V+ – V– Output supply voltage difference
(2)
13 V
Driver (FORCEOFF, FORCEON) –0.3 6
V
I
Input voltage range V
Receiver –25 25
Driver –13.2 13.2
V
O
Output voltage range V
Receiver (INVALID) –0.3 V
CC
+ 0.3
DB package 62
θ
JA
Package thermal impedance
(3) (4)
DW package 46 °C/W
PW package 62
Lead temperature 1,6 mm (1/16 in) from case for 10 s 260 °C
T
stg
Storage temperature range –65 150 °C
(1) Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings
only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating
conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
(2) All voltages are with respect to network GND.
(3) Maximum power dissipation is a function of T
J
(max), θ
JA
, and T
A
. The maximum allowable power dissipation at any allowable ambient
temperature is P
D
= (T
J
(max) - T
A
)/θ
JA
. Operating at the absolute maximum T
J
of 150°C can affect reliability.
(4) The package thermal impedance is calculated in accordance with JESD 51-7.
Recommended Operating Conditions
(1)
See Figure 6
MIN NOM MAX UNIT
V
CC
= 3.3 V 3 3.3 3.6
Supply voltage V
V
CC
= 5 V 4.5 5 5.5
V
CC
= 3.3 V 2
V
IH
Driver and control high-level input voltage DIN, FORCEOFF, FORCEON V
V
CC
= 5 V 2.4
V
IL
Driver and control low-level input voltage DIN, FORCEOFF, FORCEON 0.8 V
V
I
Driver and control input voltage DIN, FORCEOFF, FORCEON 0 5.5 V
V
I
Receiver input voltage –25 25 V
TRS3243EC 0 70
T
A
Operating free-air temperature °C
TRS3243EI –40 85
(1) Test conditions are C1–C4 = 0.1 μF at V
CC
= 3.3 V ± 0.3 V; C1 = 0.047 μF, C2–C4 = 0.33 μF at V
CC
= 5 V ± 0.5 V.
Electrical Characteristics
(1)
over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted) (see Figure 6)
PARAMETER TEST CONDITIONS MIN TYP
(2)
MAX UNIT
I
I
Input leakage current FORCEOFF, FORCEON ±0.01 ±1 μA
No load,
Auto-powerdown disabled 0.3 1 mA
FORCEOFF and FORCEON at V
CC
Powered off No load, FORCEOFF at GND 1 10
Supply current
I
CC
No load, FORCEOFF at V
CC
,
(T
A
= 25°C)
μA
FORCEON at GND,
Auto-powerdown enabled 1 10
All RIN are open or grounded,
All DIN are grounded
(1) Test conditions are C1–C4 = 0.1 μF at V
CC
= 3.3 V ± 0.3 V; C1 = 0.047 μF, C2–C4 = 0.33 μF at V
CC
= 5 V ± 0.5 V.
(2) All typical values are at V
CC
= 3.3 V or V
CC
= 5 V, and T
A
= 25°C.
Copyright © 2007–2011, Texas Instruments Incorporated Submit Documentation Feedback 5
Product Folder Link(s): TRS3243E
