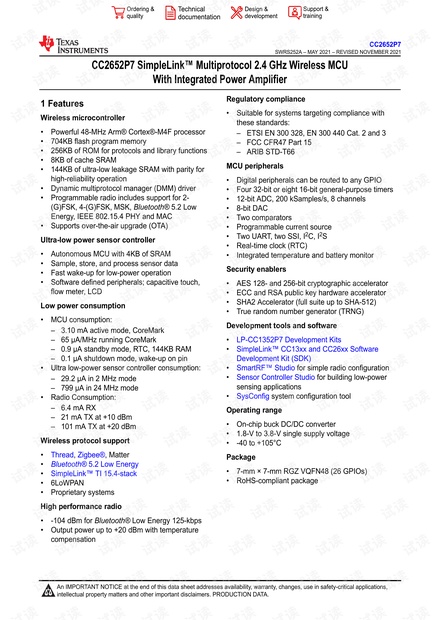

CC2652P7 SimpleLink™ Multiprotocol 2.4 GHz Wireless MCU
With Integrated Power Amplifier
1 Features
Wireless microcontroller
• Powerful 48-MHz Arm® Cortex®-M4F processor
• 704KB flash program memory
• 256KB of ROM for protocols and library functions
• 8KB of cache SRAM
• 144KB of ultra-low leakage SRAM with parity for
high-reliability operation
• Dynamic multiprotocol manager (DMM) driver
• Programmable radio includes support for 2-
(G)FSK, 4-(G)FSK, MSK, Bluetooth® 5.2 Low
Energy, IEEE 802.15.4 PHY and MAC
• Supports over-the-air upgrade (OTA)
Ultra-low power sensor controller
• Autonomous MCU with 4KB of SRAM
• Sample, store, and process sensor data
• Fast wake-up for low-power operation
• Software defined peripherals; capacitive touch,
flow meter, LCD
Low power consumption
• MCU consumption:
– 3.10 mA active mode, CoreMark
– 65 μA/MHz running CoreMark
– 0.9 μA standby mode, RTC, 144KB RAM
– 0.1 μA shutdown mode, wake-up on pin
• Ultra low-power sensor controller consumption:
– 29.2 μA in 2 MHz mode
– 799 μA in 24 MHz mode
• Radio Consumption:
– 6.4 mA RX
– 21 mA TX at +10 dBm
– 101 mA TX at +20 dBm
Wireless protocol support
• Thread, Zigbee®, Matter
• Bluetooth® 5.2 Low Energy
• SimpleLink™ TI 15.4-stack
• 6LoWPAN
• Proprietary systems
High performance radio
• -104 dBm for Bluetooth® Low Energy 125-kbps
• Output power up to +20 dBm with temperature
compensation
Regulatory compliance
• Suitable for systems targeting compliance with
these standards:
– ETSI EN 300 328, EN 300 440 Cat. 2 and 3
– FCC CFR47 Part 15
– ARIB STD-T66
MCU peripherals
• Digital peripherals can be routed to any GPIO
• Four 32-bit or eight 16-bit general-purpose timers
• 12-bit ADC, 200 kSamples/s, 8 channels
• 8-bit DAC
• Two comparators
• Programmable current source
• Two UART, two SSI, I
2
C, I
2
S
• Real-time clock (RTC)
• Integrated temperature and battery monitor
Security enablers
• AES 128- and 256-bit cryptographic accelerator
• ECC and RSA public key hardware accelerator
• SHA2 Accelerator (full suite up to SHA-512)
• True random number generator (TRNG)
Development tools and software
• LP-CC1352P7 Development Kits
• SimpleLink™ CC13xx and CC26xx Software
Development Kit (SDK)
• SmartRF™ Studio for simple radio configuration
• Sensor Controller Studio for building low-power
sensing applications
• SysConfig system configuration tool
Operating range
• On-chip buck DC/DC converter
• 1.8-V to 3.8-V single supply voltage
• -40 to +105°C
Package
• 7-mm × 7-mm RGZ VQFN48 (26 GPIOs)
• RoHS-compliant package
CC2652P7
SWRS252A – MAY 2021 – REVISED NOVEMBER 2021
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,
intellectual property matters and other important disclaimers. PRODUCTION DATA.

2 Applications
• 2400 to 2500 MHz ISM and SRD systems
1
with down to 4 kHz of receive bandwidth
• Building automation
– Building security systems – motion detector,
electronic smart lock, door and window sensor,
garage door system, gateway
– HVAC – thermostat, wireless environmental
sensor, HVAC system controller, gateway
– Fire safety system – smoke and heat detector,
fire alarm control panel (FACP)
– Video surveillance – IP network camera
– Elevators and escalators – elevator main
control panel for elevators and escalators
• Industrial transport – asset tracking
• Factory automation and control
• Medical
• Electronic point of sale (EPOS) – Electronic Shelf
Label (ESL)
• Communication equipment
– Wired networking – wireless LAN or Wi-Fi
access points, edge router , small business
router
• Personal electronics
– Home theater & entertainment – smart
speakers, smart display, set-top box
– Wearables (non-medical) – smart trackers,
smart clothing
3 Description
The SimpleLink
™
CC2652P7 device is a multiprotocol 2.4-GHz wireless microcontroller (MCU) supporting
Thread, Zigbee
®
, Matter, Bluetooth
®
5.2 Low Energy, IEEE 802.15.4g, IPv6-enabled smart objects (6LoWPAN),
TI 15.4-Stack (2.4 GHz), and concurrent multiprotocol through a Dynamic Multiprotocol Manager (DMM) driver.
The CC2652P7 is based on an Arm
®
Cortex
®
M4F main processor and optimized for low-power wireless
communication and advanced sensing in grid infrastructure, building automation, retail automation, personal
electronics and medical applications.
The CC2652P7 has a software defined radio powered by an Arm® Cortex® M0, which allows support for
multiple physical layers and RF standards. The device supports operation in the 2360 to 2500-MHz frequency
band. PHY and frequency switching can be done runtime through a dynamic multiprotocol manager (DMM)
driver. The CC2652P7 has an efficient built-in PA that supports +10 dBm TX at 21 mA and +20 dBM TX at 101
mA in 2.4-GHz band. CC2652P7 has a receive sensitivity of -104 dBm for 125-kbps Bluetooth® Low Energy
Coded PHY.
The CC2652P7 has a low sleep current of 0.9 μA with RTC and 144KB RAM retention. In addition to the main
Cortex® M4F processor, the device also has an autonomous ultra-low power Sensor Controller CPU with fast
wake-up capability. As an example, the sensor controller is capable of 1-Hz ADC sampling at 1-μA system
current.
The CC2652P7 has Low SER (Soft Error Rate) FIT (Failure-in-time) for long operational lifetime. Always-on
SRAM parity minimizes risk for corruption due to potential radiation events. Consistent with many customers’ 10
to 15 years or longer life cycle requirements, TI has a product life cycle policy with a commitment to product
longevity and continuity of supply.
The CC2652P7 device is part of the SimpleLink™ MCU platform, which consists of Wi-Fi®, Bluetooth® Low
Energy, Thread, Zigbee, Wi-SUN®, Amazon Sidewalk, mioty®, Sub-1 GHz MCUs, and host MCUs. CC2652P7
is part of a scalable portfolio with flash sizes from 32KB to 704KB with pin-to-pin compatible package options.
The common SimpleLink™CC13xx and CC26xx Software Development Kit (SDK) and SysConfig system
configuration tool supports migration between devices in the portfolio. A comprehensive number of software
stacks, application examples and SimpleLink
™
Academy training sessions are included in the SDK. For more
information, visit wireless connectivity.
Device Information
PART NUMBER
(1)
PACKAGE BODY SIZE (NOM)
CC2652P74T0RGZR VQFN (48) 7.00 mm × 7.00 mm
(1) For the most current part, package, and ordering information for all available devices, see the Package Option Addendum in Section
11, or see the TI website.
1
See RF Core for additional details on supported protocol standards, modulation formats, and data rates.
CC2652P7
SWRS252A – MAY 2021 – REVISED NOVEMBER 2021
www.ti.com
2 Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: CC2652P7

3.1 Functional Block Diagram
Main CPU
704KB
Flash
with 8KB
Cache
Sensor Interface
cJTAG
144KB
SRAM
with Parity
Arm
®
Cortex
®
-M4F
Processor
LDO, Clocks, and References
Optional DC/DC Converter
RF Core
Arm
®
Cortex
®
-M0
Processor
DSP Modem
16KB
SRAM
ROM
ULP Sensor Controller
Low-Power Comparator
12-bit ADC, 200 ks/s
Constant Current Source
SPI-I
2
C Digital Sensor IF
4KB SRAM
Time-to-Digital Converter
ADC
ADC
48 MHz
Digital PLL
256KB
ROM
General Hardware Peripherals and Modules
4× 32-bit Timers
2× SSI (SPI)
Watchdog Timer
Temperature and
Battery Monitor
RTC
I
2
C and I
2
S
2× UART
32 ch. µDMA
31 GPIOs
AES-256, SHA2-512
ECC, RSA
TRNG
20-dBm PA
2.4 GHz
Sensor Interface
ULP Sensor Controller
2x Low-Power Comparator
12-bit ADC, 200 ks/s
Constant Current Source
SPI-I
2
C Digital Sensor IF
4KB SRAM
Time-to-Digital Converter
8-bit DAC
Figure 3-1. CC2652P7 Block Diagram
www.ti.com
CC2652P7
SWRS252A – MAY 2021 – REVISED NOVEMBER 2021
Copyright © 2021 Texas Instruments Incorporated
Submit Document Feedback
3
Product Folder Links: CC2652P7

Table of Contents
1 Features............................................................................1
2 Applications..................................................................... 2
3 Description.......................................................................2
3.1 Functional Block Diagram........................................... 3
4 Revision History.............................................................. 4
5 Device Comparison......................................................... 5
6 Terminal Configuration and Functions..........................6
6.1 Pin Diagram – RGZ Package (Top View)....................6
6.2 Signal Descriptions – RGZ Package...........................7
6.3 Connections for Unused Pins and Modules................8
7 Specifications.................................................................. 9
7.1 Absolute Maximum Ratings........................................ 9
7.2 ESD Ratings............................................................... 9
7.3 Recommended Operating Conditions.........................9
7.4 Power Supply and Modules...................................... 10
7.5 Power Consumption - Power Modes.........................11
7.6 Power Consumption - Radio Modes......................... 12
7.7 Nonvolatile (Flash) Memory Characteristics............. 12
7.8 Thermal Resistance Characteristics......................... 12
7.9 RF Frequency Bands................................................ 13
7.10 Bluetooth Low Energy - Receive (RX).................... 13
7.11 Bluetooth Low Energy - Transmit (TX).................... 16
7.12 Zigbee and Thread - IEEE 802.15.4-2006 2.4
GHz (OQPSK DSSS1:8, 250 kbps) - RX.................... 17
7.13 Zigbee and Thread - IEEE 802.15.4-2006 2.4
GHz (OQPSK DSSS1:8, 250 kbps) - TX.....................18
7.14 Timing and Switching Characteristics..................... 19
7.15 Peripheral Characteristics.......................................23
7.16 Typical Characteristics............................................29
8 Detailed Description......................................................37
8.1 Overview................................................................... 37
8.2 System CPU............................................................. 37
8.3 Radio (RF Core)........................................................38
8.4 Memory..................................................................... 38
8.5 Sensor Controller...................................................... 39
8.6 Cryptography............................................................ 40
8.7 Timers....................................................................... 41
8.8 Serial Peripherals and I/O.........................................42
8.9 Battery and Temperature Monitor............................. 42
8.10 µDMA......................................................................42
8.11 Debug......................................................................42
8.12 Power Management................................................43
8.13 Clock Systems........................................................ 44
8.14 Network Processor..................................................44
9 Application, Implementation, and Layout................... 45
9.1 Reference Designs................................................... 45
9.2 Junction Temperature Calculation.............................46
10 Device and Documentation Support..........................47
10.1 Device Nomenclature..............................................47
10.2 Tools and Software................................................. 47
10.3 Documentation Support.......................................... 50
10.4 Support Resources................................................. 50
10.5 Trademarks.............................................................50
10.6 Electrostatic Discharge Caution..............................51
10.7 Glossary..................................................................51
11 Mechanical, Packaging, and Orderable
Information.................................................................... 52
4 Revision History
NOTE: Page numbers for previous revisions may differ from page numbers in the current version.
DATE REVISION NOTES
November 2021 * Initial Release
CC2652P7
SWRS252A – MAY 2021 – REVISED NOVEMBER 2021
www.ti.com
4 Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: CC2652P7

5 Device Comparison
Table 5-1. Device Family Overview
DEVICE RADIO SUPPORT
FLASH
(KB)
RAM
(KB)
GPIO PACKAGE SIZE
CC1310
Sub-1 GHz
Wireless M-Bus
32-128 16-20 10-30
RGZ (7-mm × 7-mm VQFN48)
RHB (5 mm × 5 mm VQFN32)
RSM (4 mm × 4 mm VQFN32)
CC1312R
Sub-1 GHz
Wi-SUN
®
Amazon Sidewalk
Wireless M-Bus
352-704 80-144 30 RGZ (7-mm × 7-mm VQFN48)
CC1352P
Multiprotocol
Sub-1 GHz
Wi-SUN
®
Amazon Sidewalk
Wireless M-Bus
Bluetooth 5.2 Low Energy
Zigbee
Thread
2.4 GHz proprietary FSK-based formats
+20-dBm high-power amplifier
352-704 80-144 26 RGZ (7-mm × 7-mm VQFN48)
CC1352R
Multiprotocol
Sub-1 GHz
Wi-SUN
®
Wireless M-Bus
Bluetooth 5.2 Low Energy
Zigbee
Thread
2.4 GHz proprietary FSK-based formats
352 80 28 RGZ (7-mm × 7-mm VQFN48)
CC2642R
Bluetooth 5.2 Low Energy
2.4 GHz proprietary FSK-based formats
352 80 31 RGZ (7-mm × 7-mm VQFN48)
CC2642R-Q1 Bluetooth 5.2 Low Energy 352 80 31 RTC (7-mm × 7-mm VQFN48)
CC2652R
Multiprotocol
Bluetooth 5.2 Low Energy
Zigbee
Thread
2.4 GHz proprietary FSK-based formats
352-704 80-144 31 RGZ (7-mm × 7-mm VQFN48)
CC2652RB
Multiprotocol
Bluetooth 5.2 Low Energy
Zigbee
Thread
352 80 31 RGZ (7-mm × 7-mm VQFN48)
CC2652P
Multiprotocol
Bluetooth 5.2 Low Energy
Zigbee
Thread
2.4 GHz proprietary FSK-based formats
+19.5-dBm high-power amplifier
352-704 80-144 26 RGZ (7-mm × 7-mm VQFN48)
www.ti.com
CC2652P7
SWRS252A – MAY 2021 – REVISED NOVEMBER 2021
Copyright © 2021 Texas Instruments Incorporated
Submit Document Feedback
5
Product Folder Links: CC2652P7
剩余52页未读,继续阅读
资源评论

- qq_335607272023-01-31#完美解决问题 #运行顺畅 #内容详尽 #全网独家 #注释完整

不觉明了
- 粉丝: 1614
- 资源: 4397
上传资源 快速赚钱
我的内容管理 展开
我的资源 快来上传第一个资源
我的收益
登录查看自己的收益我的积分 登录查看自己的积分
我的C币 登录后查看C币余额
我的收藏
我的下载
下载帮助


安全验证
文档复制为VIP权益,开通VIP直接复制
