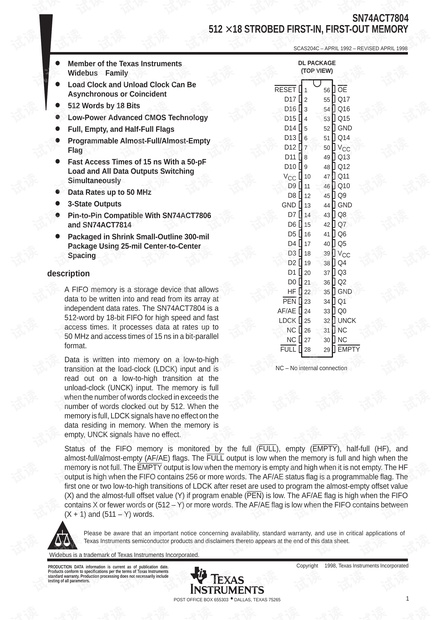

SN74ACT7804
512 × 18 STROBED FIRST-IN, FIRST-OUT MEMORY
SCAS204C – APRIL 1992 – REVISED APRIL 1998
1
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
D
Member of the Texas Instruments
Widebus Family
D
Load Clock and Unload Clock Can Be
Asynchronous or Coincident
D
512 Words by 18 Bits
D
Low-Power Advanced CMOS Technology
D
Full, Empty, and Half-Full Flags
D
Programmable Almost-Full/Almost-Empty
Flag
D
Fast Access Times of 15 ns With a 50-pF
Load and All Data Outputs Switching
Simultaneously
D
Data Rates up to 50 MHz
D
3-State Outputs
D
Pin-to-Pin Compatible With SN74ACT7806
and SN74ACT7814
D
Packaged in Shrink Small-Outline 300-mil
Package Using 25-mil Center-to-Center
Spacing
description
A FIFO memory is a storage device that allows
data to be written into and read from its array at
independent data rates. The SN74ACT7804 is a
512-word by 18-bit FIFO for high speed and fast
access times. It processes data at rates up to
50 MHz and access times of 15 ns in a bit-parallel
format.
Data is written into memory on a low-to-high
transition at the load-clock (LDCK) input and is
read out on a low-to-high transition at the
unload-clock (UNCK) input. The memory is full
when the number of words clocked in exceeds the
number of words clocked out by 512. When the
memory is full, LDCK signals have no effect on the
data residing in memory. When the memory is
empty, UNCK signals have no effect.
Status of the FIFO memory is monitored by the full (FULL
), empty (EMPTY), half-full (HF), and
almost-full/almost-empty (AF/AE) flags. The FULL
output is low when the memory is full and high when the
memory is not full. The EMPTY
output is low when the memory is empty and high when it is not empty. The HF
output is high when the FIFO contains 256 or more words. The AF/AE status flag is a programmable flag. The
first one or two low-to-high transitions of LDCK after reset are used to program the almost-empty offset value
(X) and the almost-full offset value (Y) if program enable (PEN
) is low. The AF/AE flag is high when the FIFO
contains X or fewer words or (512 – Y) or more words. The AF/AE flag is low when the FIFO contains between
(X + 1) and (511 – Y) words.
Copyright 1998, Texas Instruments Incorporated
PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of Texas Instruments
standard warranty. Production processing does not necessarily include
testing of all parameters.
Widebus is a trademark of Texas Instruments Incorporated.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
56
55
54
53
52
51
50
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
RESET
D17
D16
D15
D14
D13
D12
D11
D10
V
CC
D9
D8
GND
D7
D6
D5
D4
D3
D2
D1
D0
HF
PEN
AF/AE
LDCK
NC
NC
FULL
OE
Q17
Q16
Q15
GND
Q14
V
CC
Q13
Q12
Q11
Q10
Q9
GND
Q8
Q7
Q6
Q5
V
CC
Q4
Q3
Q2
GND
Q1
Q0
UNCK
NC
NC
EMPTY

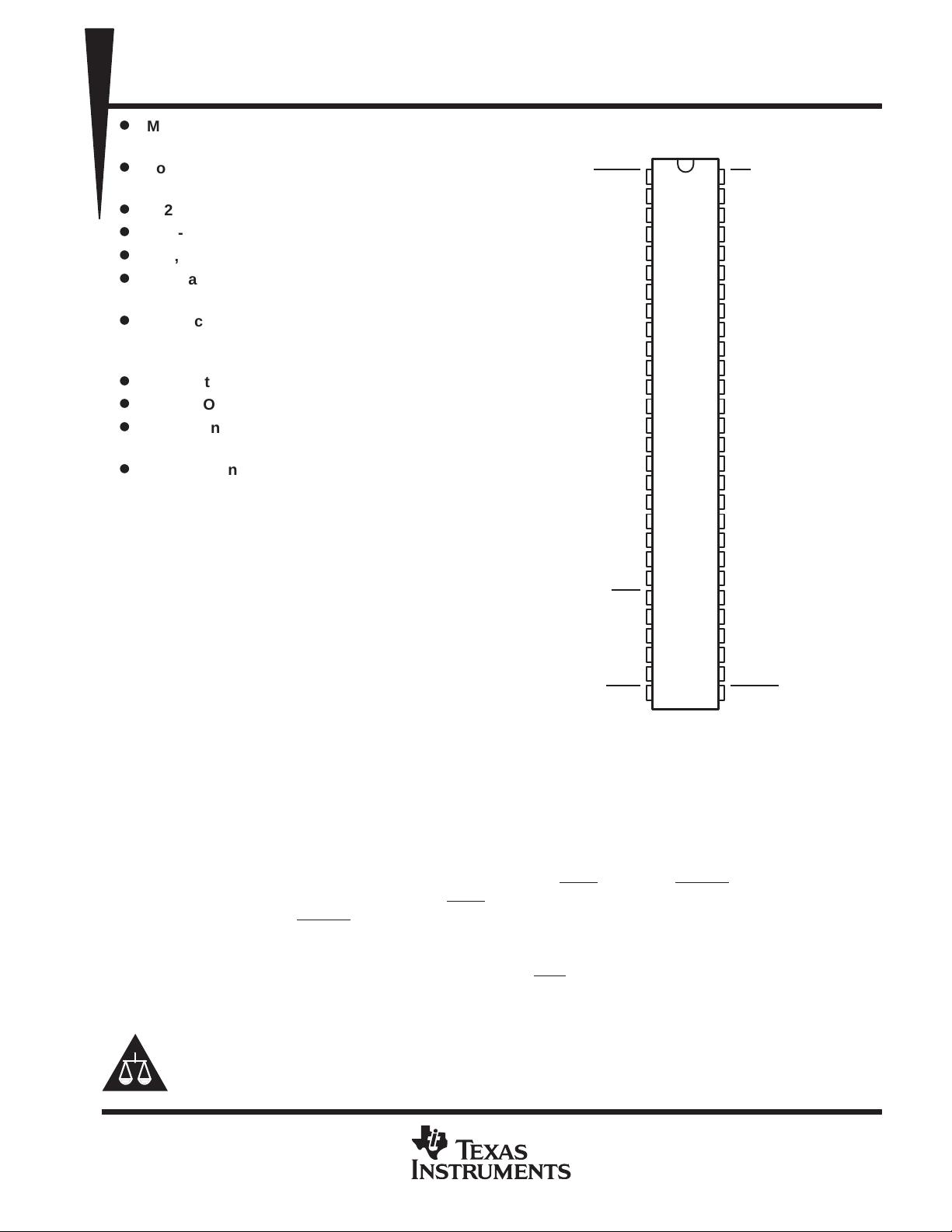

DL PACKAGE
(TOP VIEW)
NC – No internal connection
