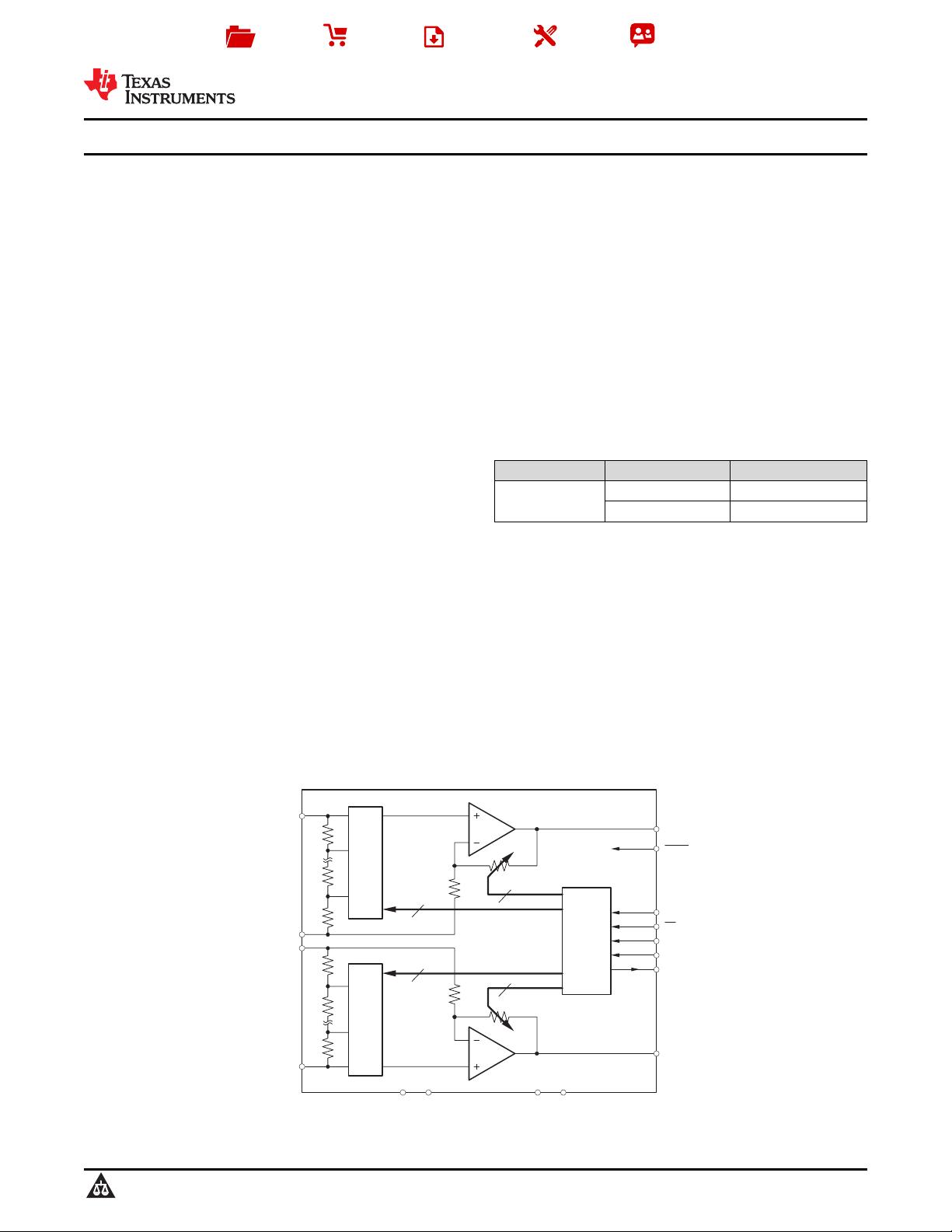

PGA2310
SBOS207C –OCTOBER 2001–REVISED DECEMBER 2015
PGA2310 Stereo Audio Volume Control
1 Features 3 Description
The PGA2310 is a high-performance, stereo audio
1
• Digitally-Controlled Analog Volume Control:
volume control designed for professional and high-
– Two Independent Audio Channels
end consumer audio systems. The ability to operate
– Serial Control Interface
from ±15-V analog power supplies enables the
PGA2310 to process input signals with large voltage
– Zero Crossing Detection
swings, thereby preserving the dynamic range
– Mute Function
available in the overall signal path. Using high
• Wide Gain and Attenuation Range: 31.5 dB to
performance operational amplifier stages internal to
−95.5 dB With 0.5-dB Steps
the PGA2310 yields low noise and distortion, while
providing the capability to drive 600-Ω loads directly
• Low Noise and Distortion:
without buffering. The three-wire serial control
– 120-dB Dynamic Range
interface allows for connection to a wide variety of
– 0.0004% THD+N at 1 kHz
host controllers, in addition to support for daisy-
chaining multiple PGA2310 devices.
• Low Interchannel Crosstalk: −126 dBFS
• Noise-Free Level Transitions
Device Information
(1)
• Power Supplies: 15-V Analog, 5-V Digital
PART NUMBER PACKAGE BODY SIZE (NOM)
• Available in DIP−16 and SOL−16 Packages
SOIC (16) 7.50 mm × 10.30 mm
PGA2310
• Pin and Software Compatible With the PGA2311
PDIP (16) 6.35 mm × 19.30 mm
and Cirrus Logic CS3310™
(1) For all available packages, see the orderable addendum at
the end of the data sheet.
2 Applications
• Audio Amplifiers
• Mixing Consoles
• Multi-Track Recorders
• Broadcast Studio Equipment
• Musical Instruments
• Effects Processors
• A/V Receivers
• Car Audio Systems
Stereo Audio Volume Control
1
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,
intellectual property matters and other important disclaimers. PRODUCTION DATA.

PGA2310
SBOS207C –OCTOBER 2001–REVISED DECEMBER 2015
www.ti.com
Table of Contents
7.4 Device Functional Modes........................................ 12
1 Features.................................................................. 1
8 Application and Implementation ........................ 13
2 Applications ........................................................... 1
8.1 Application Information............................................ 13
3 Description ............................................................. 1
8.2 Typical Application ................................................. 13
4 Revision History..................................................... 2
9 Power Supply Recommendations...................... 15
5 Pin Configuration and Functions......................... 3
10 Layout................................................................... 15
6 Specifications......................................................... 4
10.1 Layout Guidelines ................................................. 15
6.1 Absolute Maximum Ratings ...................................... 4
10.2 Layout Example .................................................... 15
6.2 ESD Ratings ............................................................ 4
11 Device and Documentation Support ................. 16
6.3 Recommended Operating Conditions....................... 4
11.1 Device Support .................................................... 16
6.4 Thermal Information.................................................. 4
11.2 Documentation Support ....................................... 16
6.5 Electrical Characteristics........................................... 5
11.3 Community Resources.......................................... 16
6.6 Typical Characteristics.............................................. 6
11.4 Trademarks........................................................... 16
7 Detailed Description.............................................. 8
11.5 Electrostatic Discharge Caution............................ 16
7.1 Overview ................................................................... 8
11.6 Glossary................................................................ 16
7.2 Functional Block Diagram ......................................... 8
12 Mechanical, Packaging, and Orderable
7.3 Feature Description................................................... 8
Information ........................................................... 16
4 Revision History
NOTE: Page numbers for previous revisions may differ from page numbers in the current version.
Changes from Revision B (June 2004) to Revision C Page
• Added ESD Ratings table, Feature Description section, Device Functional Modes, Application and Implementation
section, Power Supply Recommendations section, Layout section, Device and Documentation Support section, and
Mechanical, Packaging, and Orderable Information section. ................................................................................................ 1
2 Submit Documentation Feedback Copyright © 2001–2015, Texas Instruments Incorporated
Product Folder Links: PGA2310

ZCEN
CS
SDI
V +
D
DGND
SCLK
SDO
MUTE
V
IN
L
AGNDL
V
OUT
L
V
V +
A
A
−
V
OUT
R
AGNDR
V
IN
R
1
2
3
4
5
6
7
8
16
15
14
13
12
11
10
9
PGA2310
PGA2310
www.ti.com
SBOS207C –OCTOBER 2001–REVISED DECEMBER 2015

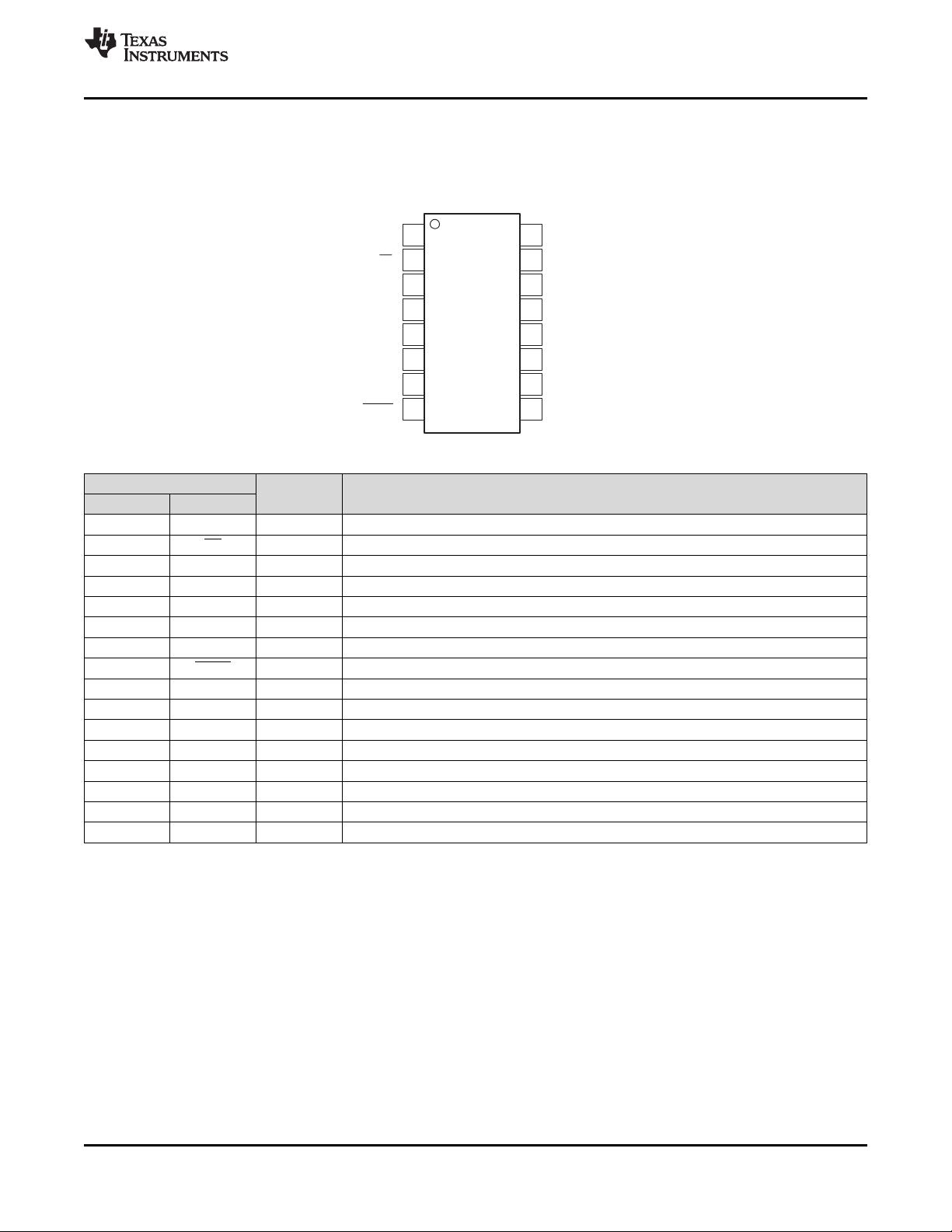

5 Pin Configuration and Functions
D and P Pakcages
16 Pins SOIC and PDIP
Top View
Pin Functions
PIN
I/O DESCRIPTION
NO. NAME
1 ZCEN I Zero Crossing Enable Input (Active High)
2 CS I Chip Select Input (Active Low)
3 SDI I Serial Data Input
4 V
D
+ I Digital Power Supply, 5 V
5 DGND — Digital Ground
6 SCLK I Serial Clock Input
7 SDO O Serial Data Output
8 MUTE I Mute Control Input (Active Low)
9 V
IN
R I Analog Input, Right Channel
10 AGNDR — Analog Ground, Right Channel
11 V
OUT
R O Analog Output, Right Channel
12 V
A
+ I Analog Power Supply, 15 V
13 V
A
– I Analog Power Supply, –15 V
14 V
OUT
L O Analog Output, Left Channel
15 AGNDL — Analog Ground, Left Channel
16 V
IN
L I Analog Input, Left Channel
Copyright © 2001–2015, Texas Instruments Incorporated Submit Documentation Feedback 3
Product Folder Links: PGA2310

PGA2310
SBOS207C –OCTOBER 2001–REVISED DECEMBER 2015
www.ti.com
6 Specifications
6.1 Absolute Maximum Ratings
over operating free-air temperature range (unless otherwise noted)
(1)
MIN MAX UNIT
V
A
+ 16
Supply Voltage V
A
– –16 V
V
D
+ 6.5
Analog input voltage 0 V
A
+,V
A
– V
Digital input voltage –0.3 V
D
+ V
Operating temperature –55 125 °C
Junction temperature 150 °C
Lead temperature (soldering, 10 s) 300 °C
Package temperature (IR, reflow, 10 s) 235 °C
T
stg
Storage temperature –65 150 °C
(1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings
only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended
Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
6.2 ESD Ratings
VALUE UNIT
V
(ESD)
Electrostatic discharge Human-body model (HBM), per ANSI/ESDA/JEDEC JS-001
(1)
±4000 V
(1) JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
6.3 Recommended Operating Conditions
over operating free-air temperature range (unless otherwise noted)
MIN NOM MAX UNIT
V
A
+ Positive analog power supply 4.5 15 15.5 V
V
A
– Negative analog power supply –4.5 –15 –15.5 V
V
D
+ Digital power supply 4.5 5 5.5 V
Operating temperature –55 25 125 °C
6.4 Thermal Information
PGA2310
THERMAL METRIC
(1)
D (SOIC) P (PDIP) UNIT
16 PINS 16 PINS
R
θJA
Junction-to-ambient thermal resistance 83 39.9 °C/W
R
θJC(top)
Junction-to-case (top) thermal resistance 44 26.2 °C/W
R
θJB
Junction-to-board thermal resistance 40.5 20.1 °C/W
ψ
JT
Junction-to-top characterization parameter 11.5 10.7 °C/W
ψ
JB
Junction-to-board characterization parameter 40.2 19.9 °C/W
R
θJC(bot)
Junction-to-case (bottom) thermal resistance N/A N/A °C/W
(1) For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application
report, SPRA953.
4 Submit Documentation Feedback Copyright © 2001–2015, Texas Instruments Incorporated
Product Folder Links: PGA2310

PGA2310
www.ti.com
SBOS207C –OCTOBER 2001–REVISED DECEMBER 2015
6.5 Electrical Characteristics
At T
A
= 25°C, V
A
+ = 15 V, V
A
− = −15 V, V
D
+ = 5 V, R
L
= 100 kΩ, C
L
= 20 pF, BW measure = 10 Hz to 20 kHz, unless
otherwise noted.
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
DC CHARACTERISTICS
Step Size 0.5 dB
Gain Error Gain Setting = 31.5 dB ±0.05 dB
Gain Matching ±0.05 dB
Input Resistance 10 kΩ
Input Capacitance 7 pF
AC CHARACTERISTICS
THD+N V
IN
= 10 V
PP
, f = 1 kHz 0.0004% 0.001%
Dynamic Range V
IN
= AGND, Gain = 0 dB 116 120 dB
Voltage Range, Input and Output (VA−) + 1.5 (VA−) − 1.5 V
Output Noise V
IN
= AGND, Gain = 0 dB 9.5 13.5 μV
RMS
Interchannel Crosstalk f = 1 kHz –126 dBFS
OUTPUT BUFFER
Offset Voltage V
IN
= AGND, Gain = 0 dB 0.5 3 mV
Load Capacitance Stability 1000 pF
Short-Circuit Current 35 mA
Unity-Gain Bandwidth, Small Signal 1.5 MHz
DIGITAL CHARACTERISTICS
High-Level Input Voltage, V
IH
2 V
D
+ V
Low-Level Input Voltage, V
IL
–0.3 0.8 V
High-Level Output Voltage, V
OH
I
O
= 200 μA (V
D
+) − 1 V
Low-Level Output Voltage, V
OL
I
O
= –3.2 mA 0.4 V
Input Leakage Current 1 10 µA
SWITCHING CHARACTERISTICS
t
SCLK
Serial Clock (SCLK) Frequency 0 6.25 MHz
t
PL
Serial Clock (SCLK) Pulse Width Low 80 ns
t
PH
Serial Clock (SCLK) Pulse Width High 80 ns
t
MI
MUTE Pulse Width Low 2 ms
INPUT TIMING
t
SDS
SDI Setup Time 20 ns
t
SDH
SDI Hold Time 20 ns
t
CSCR
CS Falling to SCLK Rising 90 ns
t
CFCS
SCLK Falling to CS Rising 35 ns
OUTPUT TIMING
t
CSO
CS Low to SDO Active 35 ns
t
CFDO
SCLK Falling to SDO Data Valid 60 ns
t
CSZ
CS High to SDO High Impedance 100 ns
POWER SUPPLY
V
A
+ 4.5 15 15.5
Operating Voltage V
A
– –4.5 –15 –15.5 V
V
D
+ 4.5 5 5.5
I
A
+ V
A
+ = 15 V 7.5 10
Quiescent Current I
A
– V
A
– = –15 V 7.7 10 mA
I
D
+ V
D
+ = 5 V 0.8 1.5
Copyright © 2001–2015, Texas Instruments Incorporated Submit Documentation Feedback 5
Product Folder Links: PGA2310
