SCBS782A − NOVEMBER 2003 − JULY 2006

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

D Controlled Baseline

− One Assembly/Test Site, One Fabrication

Site

D Enhanced Diminishing Manufacturing

Sources (DMS) Support

D Enhanced Product-Change Notification

D Qualification Pedigree

†

D Member of the Texas Instruments

Widebus Family

D A-Port Outputs Have Equivalent 22-Ω

Series Resistors, So No External Resistors

Are Required

D Supports Mixed-Mode Signal Operation

(5-V Input and Output Voltages With

3.3-V V

)

D Supports Unregulated Battery Operation

Down to 2.7 V

D Typical V

OLP

(Output Ground Bounce)

<0.8 V at V

= 3.3 V, T

= 25°C

D I

off

and Power-Up 3-State Support Hot

Insertion

D Bus Hold on Data Inputs Eliminates the

Need for External Pullup/Pulldown

Resistors

D Distributed V

and GND Pins Minimize

High-Speed Switching Noise

D Flow-Through Architecture Optimizes PCB

Layout

†

Component qualification in accordance with JEDEC and industry

standards to ensure reliable operation over an extended

temperature range. This includes, but is not limited to, Highly

Accelerated Stress Test (HAST) or biased 85/85, temperature

cycle, autoclave or unbiased HAST, electromigration, bond

intermetallic life, and mold compound life. Such qualification

testing should not be viewed as justifying use of this component

beyond specified performance and environmental limits.

D Latch-Up Performance Exceeds 500 mA Per

JESD 17

D ESD Protection Exceeds JESD 22

− 2000-V Human-Body Model (A114-A)

− 200-V Machine Model (A115-A)

− 1000-V Charged-Device Model (C101)

description/ordering information

The SN74LVTH162245 is a 16-bit (dual-octal) noninverting 3-state transceiver designed for low-voltage (3.3-V)

operation, but with the capability to provide a TTL interface to a 5-V system environment.

This device can be used as two 8-bit transceivers or one 16-bit transceiver. The device allows data transmission

from the A bus to the B bus or from the B bus to the A bus, depending on the logic level at the direction-control

(DIR) input. The output-enable (OE

) input can be used to disable the device so that the buses effectively are

isolated.

  !"# $ %&'# "$  (&)*%"# +"#'

+&%#$ %! # $('%%"#$ (' #,' #'!$  '-"$ $#&!'#$

$#"+"+ .""#/ +&%# (%'$$0 +'$ # '%'$$"*/ %*&+'

#'$#0  "** (""!'#'$

Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of

Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.

Widebus is a trademark of Texas Instruments.

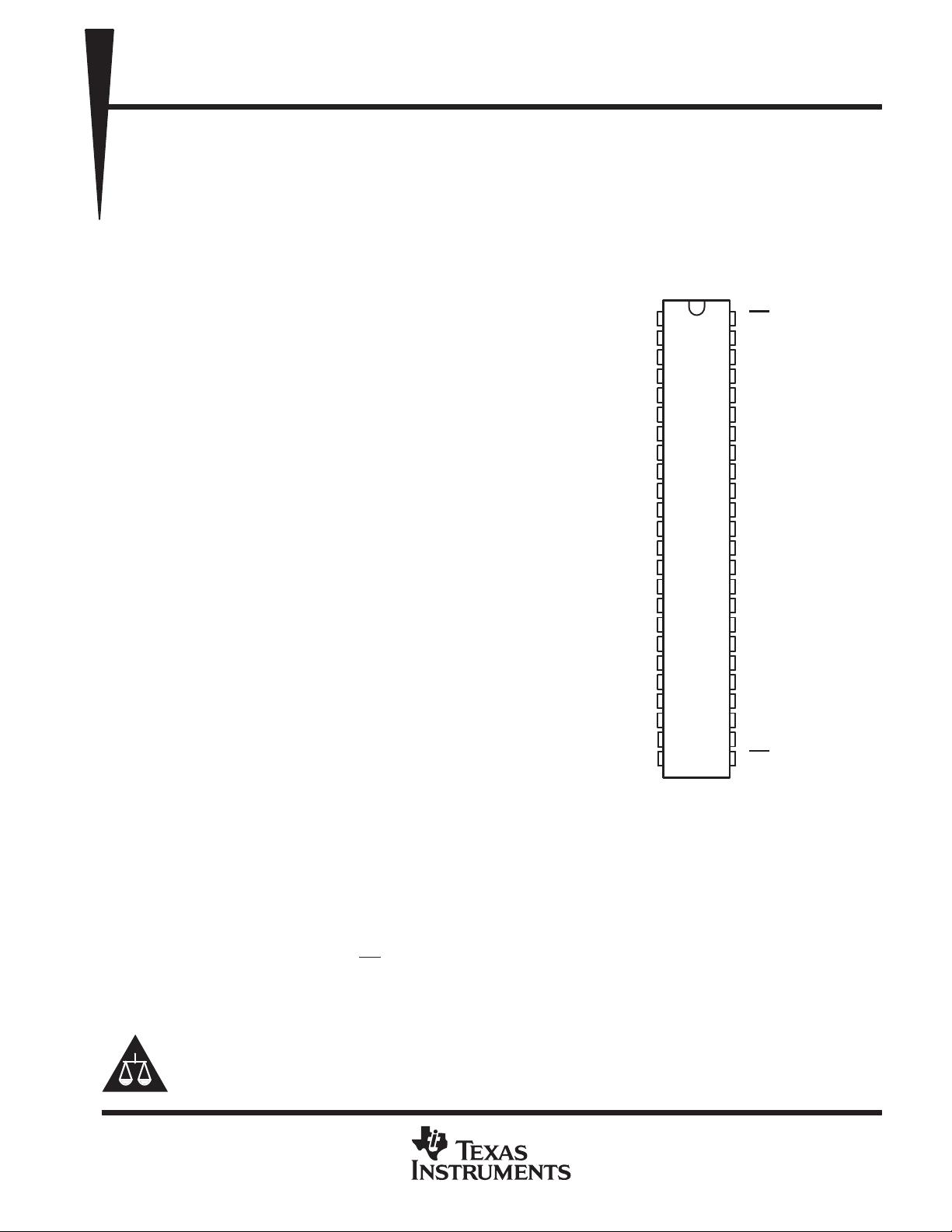

DGG OR DL PACKAGE

(TOP VIEW)

1DIR

1B1

1B2

GND

1B3

1B4

1B5

1B6

GND

1B7

1B8

2B1

2B2

GND

2B3

2B4

2B5

2B6

GND

2B7

2B8

2DIR

1OE

1A1

1A2

GND

1A3

1A4

1A5

1A6

GND

1A7

1A8

2A1

2A2

GND

2A3

2A4

2A5

2A6

GND

2A7

2A8

2OE



    

  

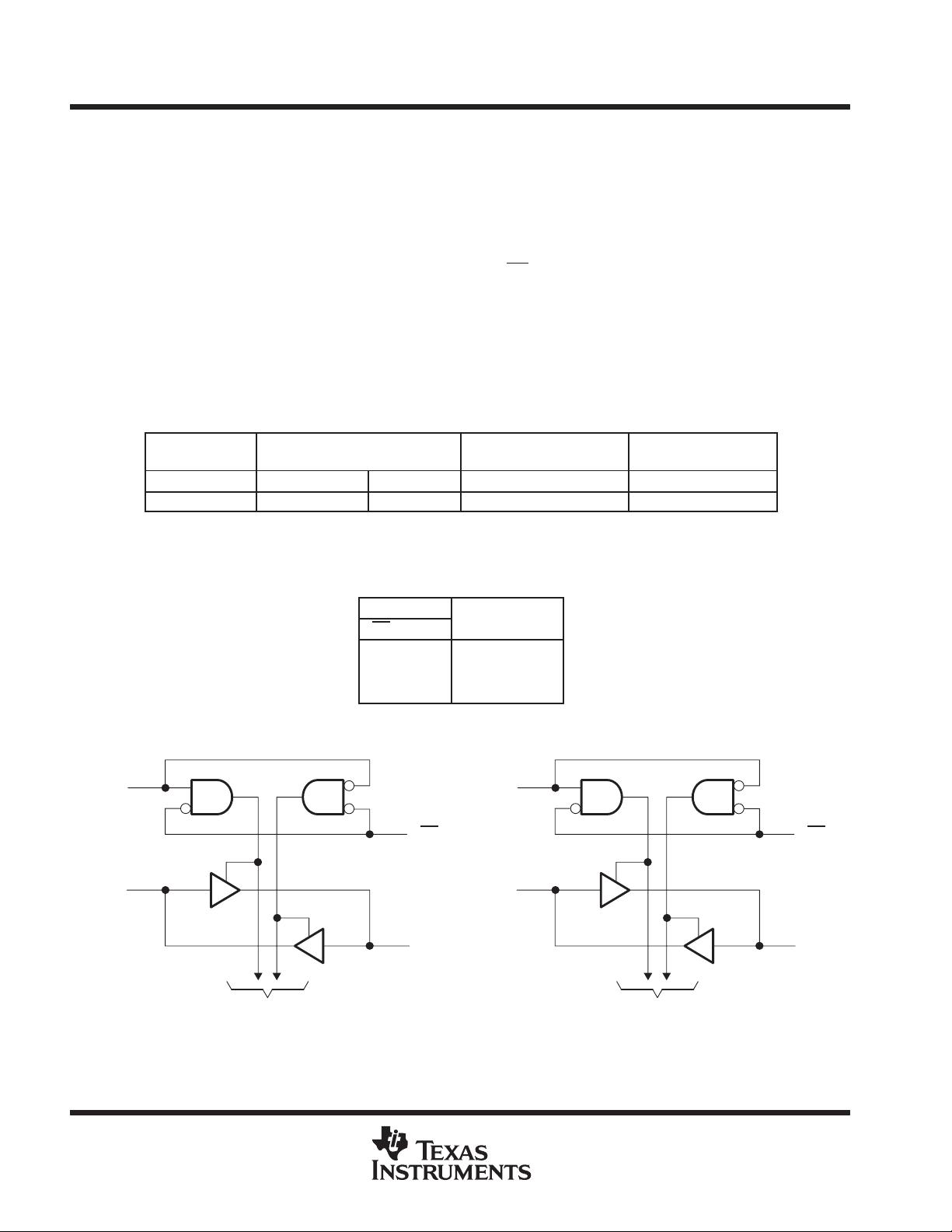

SCBS782A − NOVEMBER 2003 − JULY 2006

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

absolute maximum ratings over operating free-air temperature range (unless otherwise noted)

†

Supply voltage range, V

−0.5 V to 4.6 V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Input voltage range, V

(see Note 1) −0.5 V to 7 V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Voltage range applied to any output in the high-impedance

or power-off state, V

(see Note 1) −0.5 V to 7 V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Voltage range applied to any output in the high state, V

(see Note 1) −0.5 V to V

+ 0.5 V. . . . . . . . . . . . .

Current into any output in the low state, I

: B port 128 mA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

A port 30 mA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Current into any output in the high state, I

(see Note 2): B port 64 mA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

A port 30 mA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Input clamp current, I

< 0) −50 mA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Output clamp current, I

< 0) −50 mA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Package thermal impedance, θ

(see Note 3): DGG package 70°C/W. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

DL package 95°C/W. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Storage temperature range, T

stg

−65°C to 150°C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

†

Stresses beyond those listed under “absolute maximum ratings” may cause permanent damage to the device. These are stress ratings only, and

functional operation of the device at these or any other conditions beyond those indicated under “recommended operating conditions” is not

implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

NOTES: 1. The input and output negative-voltage ratings may be exceeded if the input and output clamp-current ratings are observed.

2. This current flows only when the output is in the high state and V

> V

3. The package thermal impedance is calculated in accordance with JESD 51-7.

4. Long-term high-temperature storage and/or extended use at maximum recommended operating conditions may result in a reduction

of overall device life. See http://www.ti.com/ep_quality for additional information on enhanced plastic packaging.

recommended operating conditions (see Note 5)

MIN MAX UNIT

Supply voltage 2.7 3.6 V

High-level input voltage 2 V

Low-level input voltage 0.8 V

Input voltage 5.5 V

High-level output current

A port −12

High-level output current

B port

−32

Low-level output current

A port 12

Low-level output current

B port

∆t/∆v Input transition rise or fall rate Outputs enabled 10 ns/V

∆t/∆V

Power-up ramp rate 200 µs/V

Operating free-air temperature

SN74LVTH162245I −40 85

°C

Operating free-air temperature

SN74LVTH162245M −55 125

NOTE 5: All unused control inputs of the device must be held at V

or GND to ensure proper device operation. See the TI application report,

Implications of Slow or Floating CMOS Inputs (SCBA004).



    

  

SCBS782A − NOVEMBER 2003 − JULY 2006

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

electrical characteristics over recommended operating free-air temperature range (unless

otherwise noted)

PARAMETER TEST CONDITIONS MIN TYP

†

MAX UNIT

= 2.7 V, I

= −18 mA −1.2 V

A port

= 2.7 V to 3.6 V, I

= −100 µA V

− 0.2

A port

= 3 V, I

= −12 mA 2

= 2.7 V to 3.6 V, I

= −100 µA V

− 0.2

B port

= 2.7 V, I

= −8 mA 2.4

B port

= 3 V, I

= −32 mA 2

A port

= 2.7 V to 3.6 V, I

= 100 µA 0.2

A port

= 3 V, I

= 12 mA 0.8

= 2.7 V

= 100 µA 0.2

= 2.7 V

= 24 mA 0.5

B port

= 16 mA 0.4

B port

= 3 V

= 32 mA 0.5

= 3 V

= 64 mA 0.55

Control inputs

= 3.6 V, V

= V

or GND ±1

Control inputs

= 0 V or 3.6 V, V

= 5.5 V 10

= 5.5 V 20

µA

A or B port

‡

= 3.6 V

= V

µA

A or B port

‡

= 3.6 V

= 0 −10

off

= 0 V, V

or V

= 0 to 4.5 V ±100 µA

= 3 V

= 0.8 V 75

I(hold)

A or B port

= 3 V

= 2 V −75

µA

I(hold

)

A or B port

= 3.6 V

, V

= 0 to 3.6 V

500

−750

OZPU

= 0 to 1.5 V, V

= 0.5 V to 3 V, OE = don’t care ±100 µA

OZPD

= 1.5 V to 0 V, V

= 0.5 V to 3 V, OE = don’t care ±100 µA

= 3.6 V, I

= 0 V,

Outputs high 0.19

= 3.6 V, I

= 0 V,

= V

or GND

Outputs low 5

= V

or GND

Outputs disabled 0.19

∆I

= 3 V to 3.6 V, One input at

− 0.6 V, Other inputs at

SN74LVTH162245I 0.2

∆I

− 0.6 V, Other inputs at

or GND

SN74LVTH162245M 0.3

= 3 V or 0 V 4 pF

= 3 V or 0 V 10 pF

†

All typical values are at V

= 3.3 V, T

= 25°C.

‡

Unused pins at V

or GND

This is the bus-hold maximum dynamic current. It is the minimum overdrive current required to switch the input from one state to another.

This is the increase in supply current for each input that is at the specified TTL voltage level, rather than V

or GND.
