PCAN-USB Pro – User Manual
5
1 Introduction

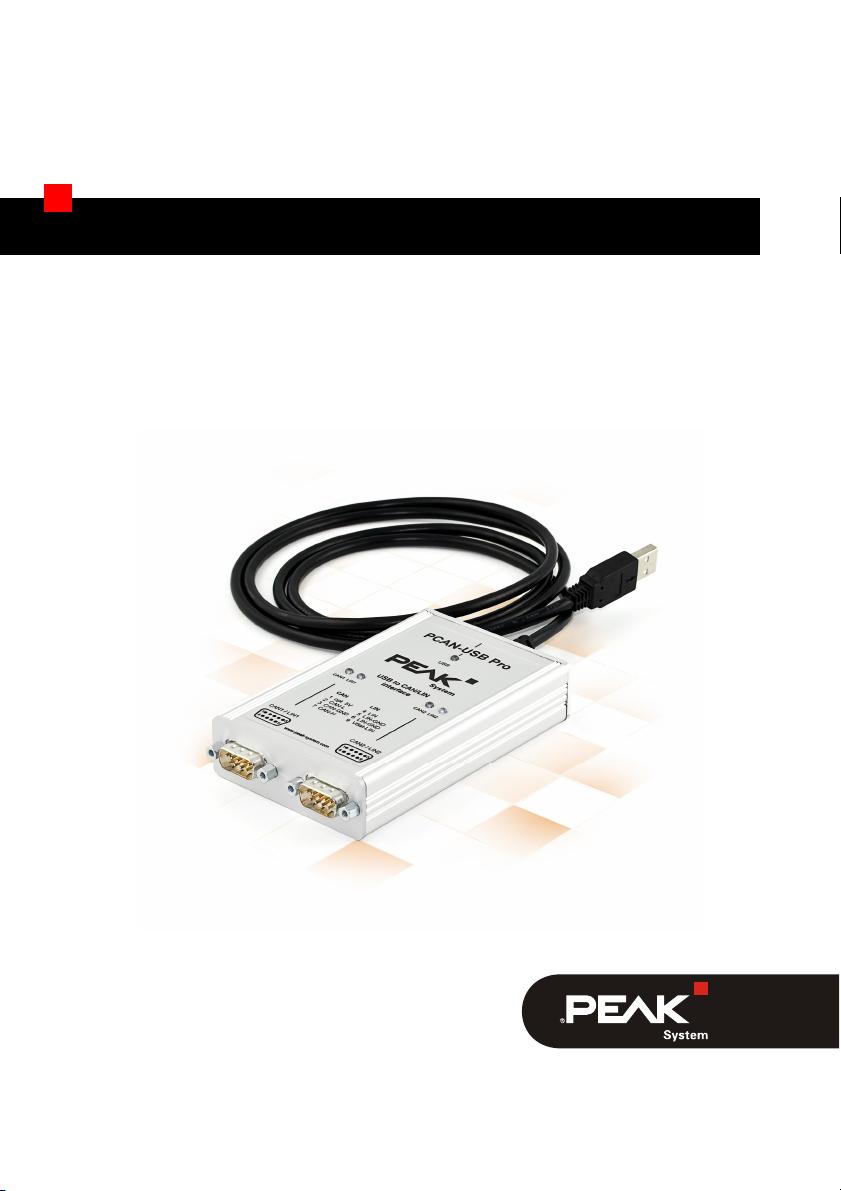

The PCAN-USB Pro adapter enables simple connection of a PC to
CAN and LIN networks. Two field busses can be connected at the
same time, with up to four connections available using appropriate
adapter cables (2x CAN, 2x LIN). Its robust aluminum casing makes
the PCAN-USB Pro adapter suitable for mobile applications. Soft-
ware interfaces exist for different operating systems, so programs
can easily access a connected CAN and/or LIN bus.
Tip: At the end of this manual (Appendix C) you can find a
Quick Reference with brief information about the installation
and operation of the PCAN-USB Pro adapter.
1.1 Properties at a Glance
Adapter for High-speed USB 2.0
(compatible to USB 1.1 and USB 3.0)
Transmitting and receiving of CAN and LIN messages using
2 D-Sub connections (both with pin assignment for CAN and
LIN bus)
Time stamp resolution 1 μs
5-Volts supply at the D-Sub connector can be activated through
a solder jumper, e.g. for external bus converter
Voltage supply via USB
Extended operating temperature range -40 - 85 °C (-40 - 185 °F)
CAN operation properties
Bit rates from 5 kbit/s up to 1 Mbit/s
