电磁分析软件,ansoft maxwell学习资料,对于新手和刚接触的人员来说,很实用
∧ NSYS Prob| em Setup Create Design Select the menu item Project Insert Maxwell 2D Design, or click on the [h con Set Solution Type Select the menu item Maxwell 2D Solution Type Solution Type: Project17-Maxwell2DDe. Solution Type Window Geometry Mode: Cylindrical about Z 1. Geometry Mode: Cylindrical about Z 2. Choose Magnetic Magnetostatic Magnetic Magnetostatic 3. Click the ok button c Eddy Current Transient Electr C Electrostatic C AC Condu DC Conduction K Cancel c 2013 ANSYS, Inc May212013 3 Release 14.5 ANSYS Create Model Create Slug Select the menu item Draw Rectangle 1. Using the coordinate entry fields, enter the position of rectangle X:O, Y: 0, Z:-10, Press the Enter key 2. Using the coordinate entry fields, enter the opposite corner dX: 5, dY: 0, dZ: 15, Press the enter key Change the name of resulting sheet to slug and color to gray Change the material of the sheet to steel_ 1008 Create Coil Select the menu item draw 2 Rectangle 1. Using the coordinate entry fields, enter the position of rectangle X: 6,Y:0,Z: 0, Press the enter key 2. Using the coordinate entry fields, enter the opposite corner dX: 4, dY:0, dZ: 20, Press the enter key Change the name of resulting sheet to Coil and color to brown Change the material of the sheet to Copper c 2013 ANSYS, Inc May212013 Release 14.5 ∧ NSYS Define Region Create Simulation Region Select the menu item draw Region In Region window, 1. Pad all directions similarly: E Checked 2. Padding Type: Percentage Offset 3.Vaue:100 4. PreSs oK You should see a message indicating that the -x direction is set to zero due to Rz-symmetry about the Z-axis HD Maxwell2DDesign1[Magnetostatic, about Z) A The negative X of region is set to O for 2D RZ problem c 2013 ANSYS, Inc May212013 5 Release 14.5 ANSYS Assign Excitations Assign Excitations Select the sheet Coil from history tree Select the menu item Maxwell 2D> Excitations Assign Current Name: Current1 Va|ue:1000 Ref Direction: Negative (current will be in the negative y direction Current Excitation Name Current 1 Parameters Current1 value 100 Ref, Direction C Positive Negative Use Defaults OK Cancel c 2013 ANSYS, Inc May212013 6 Release 14.5 ANSYS Assign Boundary and Parameter Assign Boundary to Region Edges Select the object Region from history tree Select the menu item Edit Select All Object Edges Select the menu item Maxwe ll 2D Boundaries Assign Balloon In balloon boundary window, PreSs oK Note: On symmetry axis, "Balloon Boundary assignment is automatically skipped, This can also be achieved by selecting the edges of region which are not on symmetry axiS. Assign Force Calculation Select the object Coil from history tree Select the menu item Maxwell 2D Parameters Assign Force In Force Setup window, Press oK c 2013 ANSYS, Inc May212013 Release 14.5 ANSYS Analyze Create an analysis setup: Select the menu item Maxwell 2D Analysis Setup Add Solution Setup Solution Setup Window 1. General tab Maximum number of passes: 15 2. Click the ok button Start the solution process Select the menu item Maxwell 2D Analyze All c 2013 ANSYS, Inc May212013 8 Release 14.5 ANSYS Solution Data View solution Information Select the menu item maxwell 2D Results Solution data To View convergence Select the Convergence tab Profile Convergence Force Matrix Mesh Statistics I Number of Passes Pass Triangles Total Energy J) Energy Error (%) Delta Energy [% Completed 7 0003837 21909 N/A Maximum 15 2100 00049937 18.168 35563 mun 2 3133 00050849 75108 1.8248 Energy Eror/Delta Energy [% 4177 00051279 4.8473 084702 Target [1, 1 5234 00051488 24573 0.40624 Current0.747740.15339 6308 0005159 1556 0.19796 View Table Plot 7407 00051669 0.74774 0.15339 Export To View calculated force value Select the force tab Profile Convergence Force Matrix Mesh Statistics I Parameter: Force Force Unit: newton P FIz Tota|033974 c 2013 ANSYS, Inc May212013 9 Release 14.5 ANSYS Create Field Plot Plot Magnetic Flux Density Expand the history tree for planes Select the plane global: XZ Select the menu item Maxwe l 2D Fields Fields >B >Mag B In create field plot window BIteslal Press done 2.62He-1 2,4379e-91 2.2754e-1 2.1129e-1 1.953e-c1 1.7878e-1 1.6253e-1 1,4628e-g1 1.392e-1 1.1377e-1 9.7517e-92 8.1264e-92 6.511e-22 4,8759e-082 3.2526e-g2 1.6253e-2 2,9173e-7 c 2013 ANSYS, Inc May212013 10 Release 14.5

...展开详情
试读 10P ansoft maxwell
立即下载 低至0.43元/次 身份认证VIP会员低至7折
    抢沙发
    一个资源只可评论一次,评论内容不能少于5个字
    李俊娣

    关注 私信 TA的资源

    上传资源赚积分,得勋章
    最新推荐
    ansoft maxwell 49积分/C币 立即下载
    1/10

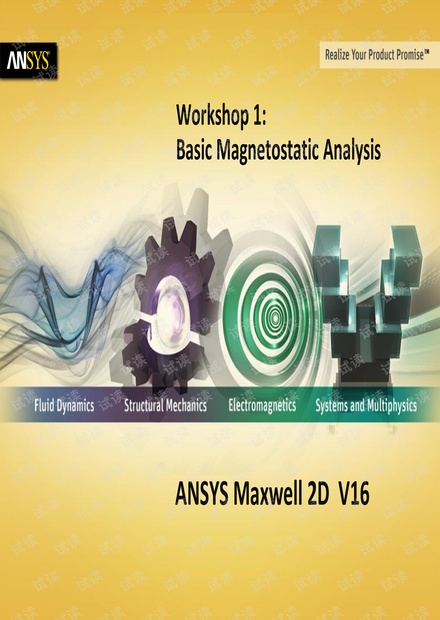

    ansoft maxwell第1页
