安森美半导体ESD保护器件CM2009-D 数据手册pdf,安森美半导体ESD保护器件CM2009-D 数据手册
CM2009 Ordering Information PART NUMBERING INFORMATION Pins Package Ordering Part Numbel Part Marking 65g QSOP CM200900QR CM200900QR 15g2 16 QSOP CM2009-02QR CM200902QR Note 1: Parts are shipped in Tape Reel form unless otherwise specified Pin Description PIN DESCRIPTIONS LEAD(S) NAME DESCRIPTION CC YNC This is an isolated supply input for the sync 1 and sYNc 2 level shifters and their associated ESD protection circuits C VIDcO This is a supply pin specifically for the vidEo-1, vidEo_2 and video_3 ESd protection circuits VIDEO 1 Video signal ESD protection channel. This pin is typically tied one of the video lines between the vga controller device and the video connector VIDEO_2 Video signal ESD protection channel. This pin is typically tied one of the video lines between the vga controller device and the video connector 5 VIDEO_3 Video signal ESD protection channel. This pin is typically tied one of the video lines between the vga controller device and the video connector GND Ground reference supply pin CC DD This is an isolated supply input for the ddc 1 and dDc 2 level-shifting N-FET gates 8 BYP This input is used to connect an external 0.2uf bypass capacitor to the ddc circuits resulting in an increased ESD withstand voltage rating +&kV with Vs. +4kv withour/ 9 DDC_OUT1 DDC signal output Connects to the video connector side of one of the sync lines 10 DDC IN1 DDC signal input. Connects to the Vga controller side of one of the sync lines 11 DDC_IN2 DDC signal input. Connects to the VGA controller side of one of the sync lines DDC_OUT2 DDC signal output Connects to the video connector side of one of the sync lines 13 SYNC_IN1 Sync signal buffer input. Connects to the VGA controller side of one of the sync lines 14 SYNC_OUT1 Sync signal buffer output. Connects to the video connector side of one of the sync lines 15 SYNC_IN2 Sync signal buffer input. Connects to the VGA controller side of one of the sync lines 16 SYNC_OUT2 Sync signal buffer output Connects to the video connector side of one of the sync lines Rev.3Page3of8www.onsemi.com cM2009 Specifications ABSOLUTE MAXIMUM RATINGS PARAMETER RATING UNITS VcC VIDEo,Vcc ppc and VCc Sync Supply Voltage Inputs GND-0.5o+60 ESD Diode Forward Current (one diode conducting at a time) 10 mA DC Voltage at Inputs V|DEO_1.ⅥDEO2,VDEO3 [GND-0. 5] to IVCC VDEc +0.5] DDC IN1 DDC IN2 [GND-05]to6.0 DDC OUT1. DDC OUT2 SYNC IN1, SYNC IN2 IGA,. IGND-0.5]to 6.0 ID-0.5] to [VcC SYNc +0.51 Operating Temperature Range 40to+85 v℃ Storage Temperature Range 40to+150 Package Power Rating(TA=25C) 500 ELECTRICAL OPERATING CHARACTERISTICSSEE NOTE SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS Supply current 5.0v; VIDEo inputs at∨ CC VIDEO 10 or GND C Supply current 50V LA V CC 5YNG Supply Current VC SYN 5V: SYNC inputs at GNd or VC srnc SYNC outputs unloaded VC SN 5V; SYNG inputs at 3.0V; 2.0mA SYnC outputs unloaded V ESD Diode Forward Voltage . 10mA 1.0V V Logic High Input Voltage CC SYN: = 5.0V; Note 2 2.0 Logic Low Input Voltage 5.0V: note 2 0.6 V Logic High Output Voltage OmA,v =5.0V: Note 2 4.85 CC s Logic Low Output voltage oL= omA, Vcc sync =5.0V; Note 2 0.15V OUT SYNC Driver Output Resistance V sNa=5.0V; SYNC Inputs at GND or 3.0 CM200900on SYNC Driver Output Resistance Vec sN =5.0V; SYNC Inputs at GND or 3.0V; 15 (CM200902nly) Note 5 VoHo?Logic High Output Voltage oH =24mA; Vcc syc =5.0V; Note 2 2.0 (CM200902on!y) VoLoz Logic Low Output Voltage(CM2009-02 only)loL=24mA; Vc Sync=5.0V; Note 2 0.8 Rev.3Page4of8www.onsemi.com CM2009 SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS Input Current VIDEO Inputs VcC viDEo 50V;V=Vec vogo or GND ±1 A SYNC_IN1, SYNC IN2 Inputs CC sYN- 5.0V:V=V Cc_sYNc OT GND A loFF Level Shifting N-MOSFET"OFF"State (Vc,DDc-VDDC N)30.4V; Voc our =VCc dDc 10 L Leakage current Dpc-VoDc our)s04V;VODc N= VeC Dpc 10 LA μ Voltage Drop Across Level-shifting Vn =2.5V;v= gND; Ie 3mA 018V N-MOSFET WhenON VIDEO Input Capacitance C ViDEo 5.0V; V=2.5Vf=1MHz; Note 4 4 pF VCC VIDEo =2.5V:V=1.25V;f= 1MHZ: Note 4 4.5 pl SYNC Driver L=>H Propagation Delay C=50pF;Vc=5.0V; Input t, and t<5ns 12 ns H SYNC Driver H=>L Propagation Delay 50pF; Vcr=5.0V; Input t and t.s5ns 12 ns tr, t SYNC Driver Output Rise Fall Times C=50pF; V=5.0V; Input t, and t < 5ns ns ESD Withstand voltage Vvnnn = va = 5v; Notes 3, 4&5 ±8 KV Note 1: All parameters specified over standard operating conditions unless otherwise noted Note 2: These parameters apply only to the sYNc drivers. Note that Rour= R+R Note 3: Per the IEC-61000-4-2 International ESD Standard, Level 4 contact discharge method. BYP, V ygo and Vc sync must be bypassed to gnd via a low impedance ground plane with a 0. 2uF, low inductance, chip ceramic capacitor at each supply pin Esd pulse is applied between the applicable pins and GND. ESd pulses can be positive or negative with respect to GND Applicable pins are: VIDEo 1, VIDEO 2, VIDEO 3, SYNC OUT1. SYNC OUT2, DDC OUT1 and DDC OUT2 All other pins are ESd protected to the industry standard 2kv human body Model(MIL-STD-883, Method 3015. the bypass capacitor at the BYP pin may optionally be omitted, in which case the max. ESD withstand voltage for the DDC_OUT1 and DDC_OUT2 pins are reduced to + 4kv Note 4: The SYNC_OUT pins on the CM2009-02 are guaranteed for 2kV HBM ESD protection Rev.3Page5of8www.onsemi.com cM2009 Application Information HSYNC o F1 10 10k VCL 5v 自 VSYNG OUT Vor SyNC sY’它 O SYNO GNDI VCCA DAC SYNC N2 VOC VIDEO SYNG CUT1 HSYNC OUT laF SYNC IN1 DE UT2 DE DATA GREEN -O DIG GND DDC OUTl O DDC CL< CM209 Optional EM Fiters VIDEO FIers O RED VIDEO Se= HOR VIDEO_2 o GREEN VIDEO 3 BLUE VIDEO VoC DrC 白 RED GND ° GREEN GND BLUE GH』L Video port DECA CLK Connector DDCA DATA C Figure 1. Typical Application Connection Diagram NOTES 1 The CM2009 should be placed as close to the vGa or DVI-I connector as possible 2 The ESD protection channels VIDEO_1, VIDEo_2, video_3 may be used interchangeably between the R, G, B ignals 3 If differential video signal routing is used, the RED, BLUE, and green signal lines should be terminated with external 37.5 resistors 4" are external video filters for the rgb signals 5 Supply bypass capacitors C1 and C2 must be placed immediately adjacent to the corresponding Vcc pins. Connections to the vcc pins and ground plane must be made with minimal length copper traces(preferably less than 5mm) for best ESD protection 6 The bypass capacitor for the BYP pin has been omitted in this diagram this results in a reduction in the maximum ESD withstand voltage at the DDC_ OUt pins from +&kv to +4kv. If 8kV ESD protection is required, a 0. 2uF ceramic bypass capacitor should be connected between BYP and ground 7 The sYnc buffers may be used interchangeably between HSYNc and VSYNc 8 The emi filters at the sYNc_ oUT and ddC_ oUt pins(c5 to C12, and Ferrite Beads FB1 to FB4)are for reference only. The component values and filter configuration may be changed to suit the application 9 The ddc level shifters DDC iN, DDC OUT, may be used interchangeably between dDCa clK and DDCA data 10 R1, R2 are optional. They may be used, if required to pull the ddc clK and ddc_ data lines to vcc_5v when no monitor is connected to the VGa connector. If used, it should be noted that"back current"may flow between the ddc pins and vCC_5v via these resistors when VC_ 5v is powered down 11 For optimal ESD performance with the CM2009-02, an additional clamp device(such as the CMD PACDN042 should be placed on HSYNC/VSYNC lines between the external matching resistor and the vga connector Rev.3Page6of8www.onsemi.com CM2009 Mechanical details QsoP Mechanical Specifications CM2009 devices are packaged in 16-pin QSoP packages. Dimensions are presented below Mechanical Package Diagrams PACKAGE DIMENSIONS OP VIEW Package QSOP (JEDEC name is SSOP) 161514 1211109 Pins 16 Millimeters Inches Dimensions H Pin 1 Mar kini Min Max Min Max 1.35 1.75 0.053 0.069 目目目目目目日 A1 0.10 0.25 0.004 0.010 0.20 0.30 0.008 0.012 SIDE VIEW c 0.18 0.25 0.007 0.010 4.80 5.00 0.189 0.197 s三ATG 更更日 E E 3.81 3.98 0.150 0.157 0.64 BSC 0.025BsC 5.79 6.19 0.228 0.244 DWEγ H 0.40 1.27 0016 0.050 per tube 100 pcs per tape 2500 pcs and reel Package Dimensions for QSoP-16 Controlling dimension inches This is an approximate number which may vary Rev.3Page7of8www.onsemi.com cM2009 producs- iconductor and are registered trademarks of Semiconductor Components Industries, LLC (SCILLC). SCILLC reserves the right to make changes without further notice to any out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. "Typical parameters which may be provided in SCILLC data sheets and/or specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including "Typicals"must be validated for each customer application by customer's technical experts. SCI-LC does not convey any license under its patent rights nor the rights of others. SCILLC products are not designed, intended, or authorized for use as components in systems intended for surgical implant into the body, or other applicaticns interdec to support or sustain life, or for any other application in which the failure of the Scilla product could create a situation where personal injury or death may occur. Should Buyer purchase or use SCILLC products for any such unintended or unauthorized application, Buyer shall indemnify and hold SCILLC and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly ar indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that SCILLC was negligent ragarding the design or manufacture of the part. SCILLC is an Equal Opportunity/Affirmative Action Employer. This literature is subject to all applicable copyright laws and is not for resale in any manner. PUBLICATION ORDERING INFORMATION LITERATURE FULFILLMENT: N. American Technical Support: 800-282-9855 onSemiconductorwebsitewww.onsemi.com Literature Distribution center for on semiconductor Toll free USA/Canada P O. Box 5163. Denvcr, Colorado 80217 USA Europe, Middle East and Africa Techn ica orderliTeraturehttp://www.onsemi.com/orderlit le: 303-675-2175 or 800-344-3860 Toll Free USA/Canada 303-675-21 76 or 800-344-3867 Toll free usa/canada Phone:421337902910 For additional information, please contact you il: orderlit@onsemi com Japan customer Focus center Sales Representative Phone:8135773-3850 Rev.3Page8of8www.onsemi.com

...展开详情
试读 8P 安森美半导体ESD保护器件CM2009-D 数据手册.pdf
立即下载 低至0.43元/次 身份认证VIP会员低至7折
一个资源只可评论一次,评论内容不能少于5个字
您会向同学/朋友/同事推荐我们的CSDN下载吗?
谢谢参与!您的真实评价是我们改进的动力~
关注 私信
上传资源赚钱or赚积分
最新推荐
安森美半导体ESD保护器件CM2009-D 数据手册.pdf 35积分/C币 立即下载
1/8

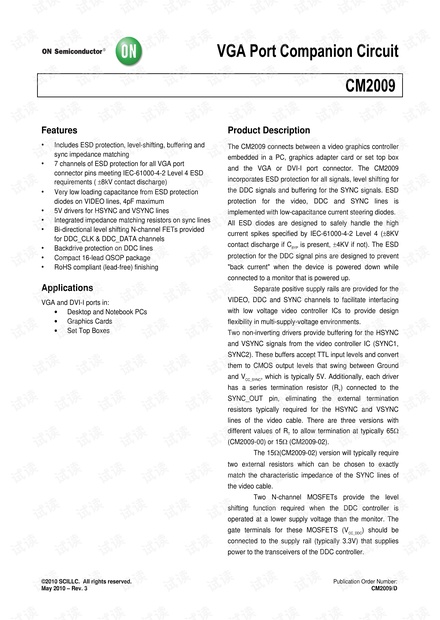

安森美半导体ESD保护器件CM2009-D 数据手册.pdf第1页
