Ceragel CPS72/CPS72D Data storage of CPS72D Digital sensors are able to store the following system data in the sensor Manufacturing data Serial number Order code Date of manufacture ■ Calibration cata Calibration date Calibrated offset(operating mode " mv") %o Slope (operating mode%) er of calibrations Serial number of the transmitter used for the last calibration ■ Application data Temperature application range Redox application range Date of first commissioning Operating hours These system data can be displayed with the mycom s or the liquiline m cm42 transmitter Measuring system A complete measuring system consists of CPS72 or CPS72D ORP electrode Transmitter, e.g. Liquisys M CPM223/253 (with Memosens technology for CPS72D Special measuring cable, e.g. CPK9 or CYK10 Memasens data cable for CPS72D a Immersion, flow or retractable assembly, e. g. Cleanfit H CPA475 ⊙ 母 1 CPS72/ CpS72D ORP electrode 2 Gleanfit H CPA475 bly 3 PK9 speciai mea suring cable for electrodes with ToP58 plug-in head)/cyK10 for digital sensors 4 Liquisys l CP253 transmitter Endress+hau Ceragel cPs72/CPs72D Input Measured variables Redox potential Measuring ran 1500.1500mV Please note the process operating conditions Installation Installation instructions Do not install the electrode upside down. The inclination angle must be at least 15 from the horizontal. A smaller inclination angle is not permitted as such an inclination results in air cushion forming This might impair the contact of reference and metal lead a Make sure that the assemblys threaded connection for the electrode is clean and well running before installing the electrode a Hand tighten the electrode( 3 nm)! (Given value only applies to installation in EndreSs+ Hauser assemblies a Make sure to follow the installation instructions in the operating instructions of the used assembly 15 15 Electrode installation; inclination angie min. 15 from the horizontal Permitted inclination angle B Non-permitted inclination angle Environment Ambient temperature Caution Danger of frost damage Do not use the electrode at temperatures belOw C/5F Storage temperature 0..50°C/32..122°F Ingress protection TP67: GSA plug-in head ( witn closed connection syste TP68: TOP68 plug-in head(1 m /3.28 ft water column, 50C/122F,168 hi IP 68 Memosens plug-in head (10 m/32.8 it water column, 25C/77F, 45 days, I M KCI Endress+hauser Ceragel CPS72/CPS72D Process Process temperature -15..135°C/5..275°F Process pressure 0….10bar/0..145psi Application Reducing media, e.g. chromate reduction, chlorine dosing in swimming pools Caution! Danger of damage to the electrode Never use the electrode in applications outside the given specifications Mechanical construction Design, dimensions m/ inch mm/inch 8 3 N=寸o 1210.47 12/047 CPS72 with GSA plug in head CPS72 with ESa plug in head I GSA plug-in head, Pg 13.5 7 ESA Plug-in head, P8 13.5 2 Viton O-ring with thrust collar 2 Viton O-ring with thrust collar Ag/AgCl meta! lead 3Ag/≠ gCl metai lead 4 Bridge electrolyte 4 Bridge eiectrolyte 5 Diaphragm 5 Diaphragm o Platinum ring 0 Platinum ring Endress+hauser Ceragel CPS72 /CPS72D Design, dimensions CPS72D 6 12/047 CPS72) with Memosens plug-in head I Memosens plug-in 2 Viton O-ring with thrust collal 3 Ag/AgCl metal Diaphragm m ring Weight 0.1kg/0.2b Material Electrode shaft process gla Redox measuring element platinum ring Reference lead Ag/Agcl Diaph ceramic, sterilisable Process connection Pg 13.5 Plug-in heads CPS72 ESA: threaded plug-in head Pg 13.5, TOP 68, 16 bar /232 psi, Ex threaded plug-in head Pg 13.5 CPS72D: Memosens plug-in head for digital, contactless data transmission, 16 bar/232 psi, Ex or non-EX Electrolytes Advanced Gel 3 M KCl AgCl free Bridge electrolyte Endress+h Ceragel CPS72/CPS72D Certificates and approvals Ex approval CPS72 (ESA) aTEXI IG EEX ia g t3/T4/t6 a FM Class I Div. 2, in combination with the liquiline m cM42 and Mycom S CPMI53 transmitters Ex approval cPs72D ateX II 1G EEX ia Ic t3/t4/to FM/ CSA Class I Div. 2, in combination with the Liquiline m cM42 and Mycom S CPM153 transmitters Note Ex versions of digital sensors with Memosens technology are indicated by an orange-red ring in the plug-in head Biocompatibility Biocompatibility validated according to ■IS109935:1993 a USP. current revision TUV certificate toP68 and Pressure resistance 16 bar, min. triple overpressure safety ns plug-in head Electromagnetic compatibility Interference emission and interference immunity complies with En 61326: 1997/Al: 1998 CPSZ2D Ordering information Product structure cPs72 Electrode type Standard version asuring e Platinum ring ft length 120mm/4.72 225mm/8.86 5300mm/14.1 Plug-in head ESA Plug-in head Pg 13.5, TOP 68, 1o bar/232 psi, Ex GSA Plug-in head Pg 13.5, DIN coax, non-Ex CPS72- complete order cod Product structure cPS2D Version Measuring element PB Platinurn ring Shaft length Pproval Non-hazardous areas ATEXIL IG EEx ia Ic t3/4/Tc CPS72D complete order code al pend Endress+hauser Ceragel CPS72 /CPS72D Accessories Nore In the following sections, you find the accessories available at the time of issue of this documentation For information on accessories that are not listed here, please contact your responsible service Assemblies ■ Cleanfit w cpa150 ually operated, retractable assembly for installation of 120 mm /4.72 pH/ORP p Ordering acc. to product structure, see Technical Information(TI183C/07/en) Cleanfit p cPa471 Compact retractable stainless steel assembly for installation in tanks and pipes, manual or pneumatic Ordering acc to product structure, see Technical Information(T1217C/07/en) Cleanfit p cpa472 Compact retractable plastic assembly for installation in tanks and pipes, manual or pneumatic operation, Ordering acc. to product structure see Technical Information (Ti223C/07/en) ■ Cleanfit p cpa473 Retractable stainless steel process assembly, with ball valve for a particularly safe and reliable separation of the medium from the environment Ordering acc. to product structure, see Technical Information(T1344C/07/en Cleanfit P cPa474 Retractable plastic process assembly, with ball valve for a particularly safe and reliable separation of th medium from the environment Ordering acc. to product structure, see Technical Information(T1345C/07/en 0003137 Cleanfit w CPA450 Cleanfit p cpa4zi or 472 Cleanft p cpa473 or 474 Endress+h Ceragel CPS72/CPS72D ■ Cleanfith cpa475 Retractable assembly for installation in tanks and pipes under sterile conditions Ordering acc. to product structure, see Technical Information (T1240C/07/eni ■ Unifith cPa442 Process assembly for the food industry, biotechnology and pharmaceutical industry, with EhEdg and 3A rtificates Ordering acc to product structure, see Technical Information [TI306C/07/en Dipfir W CPA Plastic immersion and installation assembly for open and closed tanks Ordering acc. to product structure, see Technical Information (TIl 12C/07/en Cleanfif H CPA475 Unit H CPA442 Dipfit W CPA1!7 Dipfit P CPal Immersion assembly for pH/ORP electrodes for demanding processes Ordering acc to product structure, see Technical Information [TI178C/07/en ■ flowfit P cpa240 Flow assembly for pH/ ORP electrodes, for demanding pro Ordering acc. to product structure, see Technical Information (/07/en Flowfit W cPa250 Flow assembly for ph/oRP electrod Ordering acc. to product structure, see Technical Information (T1041C/07/en Dipfit P CPA140 Flowflt P CPA240 Flowit W CPA250 Endress+hau Ceragel cPs72/CPs72D ■ Probfith cpa465 Retractable assembly for installation in tanks and pipes under sterile conditions Ordering acc to product structure, see Technical Intormation (TI146(/07/en Ecofit CPa640 Process connection adapter and cable set for 120 mm pH/ORP electrodes, Ordering acC. to product structure, see Technical Information (Ti264C/07/en Probit H CPA405 Ecofit CPA040 Buffer solutions Technical buffer solutions for orp electrodes 3+220 mV, pH7.0, 100 ml (0.026 US gal. order no. CPY3-0 +468 mV, pH O 1, 100 ml (0.026 US gal ) order no. CPY3-1 Transmitters a Liquisys M CPM223/2.53 Transmitter for pH and redox, field or panel-mounted housing, Hart@ or ProfiBuS available Ordering acc to product structure, see Technical Information(TI194C/07/en) Aycom S CPMI5 Transmitter for pH and redox, one or two channel version, Ex or Non-EX, Hart@ or profibus available Ordering acc to product structure, see Technical Information(t1233C/07/en ■ Liquiline M cm42 Modular two-wire transmitter for ex and non-Ex areas Harte profibus or foundation fieldbus available Ordering acc to product structure, see Technical Information(TI381C/07/en Endress+hauser

...展开详情
试读 12P E H(恩德斯豪斯)Ceragel CPS7272D手册.pdf.pdf
立即下载
限时抽奖 低至0.43元/次
身份认证后 购VIP低至7折
一个资源只可评论一次,评论内容不能少于5个字
您会向同学/朋友/同事推荐我们的CSDN下载吗?
谢谢参与!您的真实评价是我们改进的动力~
  • 至尊王者

关注 私信
上传资源赚钱or赚积分
最新推荐
E H(恩德斯豪斯)Ceragel CPS7272D手册.pdf.pdf 10积分/C币 立即下载
1/12

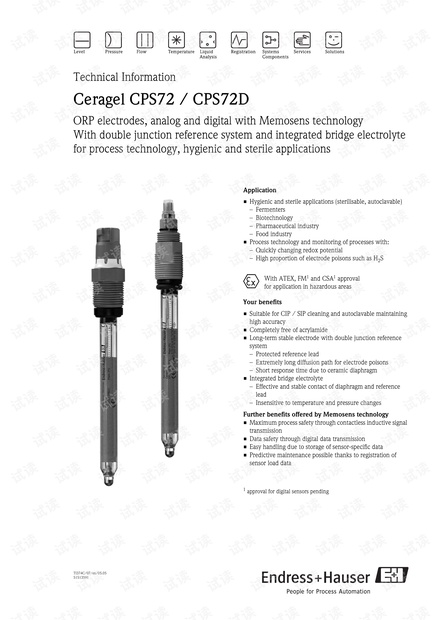

E H(恩德斯豪斯)Ceragel CPS7272D手册.pdf.pdf第1页
