安森美半导体ESD保护器件CM1214A-D 数据手册pdf,安森美半导体ESD保护器件CM1214A-D 数据手册
CM1214A Ordering Information PART NUMBERING INFORMATION Lead-free Finish Pins Package Ordering Part Number Part Marking SOT23 CM1214A-01SO RF1S MSOP CM1214A-02MR RF2S Note 1: Parts are shipped in Tape& reel form unless otherwise specified Specifications ABSOLUTE MAXIMUM RATINGS PARAMETER RATING UNITS DC Voltage between CH pins Operating Temperature Range -40to+85 ℃ Storage Temperature range 65to+150 Package Power Rating SOT23-3 Package(CM1214A-01SO) 225 MSOP8 Package(CM1214A-02MR) 400 Rev.2iPage3of14www.onsemi.com CM1214A STANDARD OPERATING CONDITIONS PARAMETER RATING UNITS Operating temperature range 40to+85 ELECTRICAL OPERATING CHARACTERISTICS SEE NOTE 1) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS Vsr Standoff Voltage =10uA ±7 ESd Voltage Protection Notes 2 and 3 Peak discharge voltage between CH pins a)Contact discharge per KV lEC 61000-4-2 standard Channel Leakage Current T=25C, 5.5V between CH pins ±0.1±1.0A Dynamic resistance TA=25C, Ip=1A,tp=8!20uS; Any 1.36 10 pin to Ground; Note 4 Channel Clamp Voltage TA=25C, Ip=1A, tp=8/ 20uS 11.3 Note 4 Channel Input Capacitance Measured at 1 MHz between CH Voltage between CH pins =oV pins 0.4 0.6 09 Voltage between CH pins= 5V 0.35 0.54 0.8 pF Note 1: All parameters specified at Ta=-40C to +85C unless otherwise noted Note 2: Standard IEC 61000-4-2 with C discharge=150pF, RD 3309 Note 3: From CH pin with other CH pin grounded Note 4: No-connect pins are left open for all tests Rev.2Page4of14www.onsemi.com CM1214A Performance Information Typical Capacitance Characteristics Vs. Voltage CM1214A illustrates how the loading capacitance remains mainly flat across the voltage range from oV to 5V the voltage between CH pins Capac itance vs Voltage(measured at 1MHz) 12 1.1 0.9 000 876 0.5 04 0.3 0.2 0 5 Voltage[v Figure 1. CM1214A Capacitance vS Voltage Typical Voltage Current (VI) Characteristics (low current) CM1214A shows how the CM1214A experiences a symmetrical I/ curve, without any snapback or trigger voltage. It gradually starts to turn on at about 6V and clamps about 7V 876543210 5 6 Voltage [ v Figure 2. CM1214A VI Characteristics, Low Current Rev.2Page5of14www.onsemi.com CM1214A Typical Voltage-Current (vi)Characteristics (high current, pulse condition) CM1214A shows how the CM1214A experiences a symmetrical I/ curve, without any snapback or trigger voltage. The curve shows only one polarity 9 5432 0 2 3 5 6 Voltage Mv] Figure 3. CM1214A VI Characteristics, Low Current, Pulse(clamping) Condition Figure 3. CM1214A VI Characteristics Low Current, Pulse(clamping) Condition Typical Capacitance Characteristics VS Temperature CM1214A illustrates the loading capacitance for both OVDC and 1. 65VDc input across the -40 to 85C temperature range 0.660 0.640 OV DC Input Bias 1.65/ DC Input Bias 8 0.620 50.600 58 0.580 三 0.560 0.540 0.520 -25 25 75 100 Temperature(°C Figure 4. CM1214A Capacitance vS. Temperature Rev.2iPage6of14www.onsemi.com CM1214A Performance Information(cont d) Typical Filter Performance(nominal conditions unless specified otherwise, 50 Ohm Environment) 1dB/REF。dB 0181 dB AdB 2dB 4-33日2 -6dB TEST CIRCUIT P10 P2 9dB -10dB 1000 2000 6000 FREQUENCY( MHz Figure 5. Insertion LOss Vs Frequency (oV Dc Bias 1。gMAG 1 dB/ REF O dB .。012d日 OdB ooo -1dB 2dB 出-2l84 3dB 50B TEST CIRCUIT P10 -8dB GND 10dB 1000z000 REQUENCY(MHz Figure 6. Insertion Loss Vs Frequency(2.5V DC Bias) Rev.2iPage7of14www.onsemi.com CM1214A pplication information cM1214A0150 The CM1214A-01so protects a single bipolar signal line often found in RF circuits. One to pin (pin 1 for example)is connected to the signal line for protection, and the other l0 pin is tied to GND. It is important to have a solid ground connection to reduce the clamping voltage. Pin 3 of the 3-lead SoT23 must be left open (and not connected on the PCB) CM1214A-02MR The CM1214A-02MR protects two bipolar lines, such as for Gbit Ethernet. The PCB traces underneath the package connect across to the corresponding pins(Pins 1, 4, 6 and 7). Pins 2, 3, 5 and 8 of the MSOP-8 package must be left open(and not connected on the PCB) Any disturbance on the line above or below the standoff voltage is clamped RF ANTENNA LNA SIGNAL LINE SWITCH C ESD N C P ESD GND SOT23-3 Figure 7. Typical Application- RF Switch and Amplifier Protection, CM1214A-01so in 3-lead sot23 CH1 0 From CH2 O ASIC RX+ To Connector CHS O CH4 O CM1214A-02MR CM1214A-02MR Figure 8. Typical Application-Ethernet Protection, CM1214A-02MR in 8-lead MSOP Rev.2iPage8of14www.onsemi.com CM1214A Application Information (contd IEEE1394 PHY LLC 30 4 GALV ISo CM121408 GND Keep the esd devices on the phy side of the galvanic isolation and inside the Vcc domain of the phy controller Figure 9. Typical Application -IEEE1394 Protection, CM1214A-02MR in 8-lead MSOP Rev.2iPage9of14www.onsemi.com CM1214A Mechanical Details The CM1214A is supplied in SoT23-3 and MSoP-8 packages. dimensions are presented below SOT23-3 Mechanical Specifications The CM1214A-01SO is supplied in a 3-pin So T23 package Dimensions are presented below Mechanical Package Diagrams PACKAGE DIMENSIONS TOP VIEW Package SOT23-3 (JEDEC name is To-236 Pins 3 Dimensions Milimeters E1 E Min A 0.89 A 0.89 e A 0.01 A1 0.01 A1 e→ 0.30 0.30 SIDE VIEW c 0.08 c 0.08 D 2.80 D 2.80 D Al A 2.10 2.10 E E1 1.20 E1 1.20 E1 0.95 0.95 END VIEW BSC BSC e1 1.90 BSC e1 0.40 L L1 0.54 L1 0.54 L1 REF REF f per tape 3000 pieces and reel Package dimensions for soT23-3 Controlling Millimeters dimensions Rev.2Page10of14www.onsemi.com

...展开详情
试读 14P 安森美半导体ESD保护器件CM1214A-D 数据手册.pdf
立即下载 低至0.43元/次 身份认证VIP会员低至7折
一个资源只可评论一次,评论内容不能少于5个字
您会向同学/朋友/同事推荐我们的CSDN下载吗?
谢谢参与!您的真实评价是我们改进的动力~
关注 私信
上传资源赚钱or赚积分
最新推荐
安森美半导体ESD保护器件CM1214A-D 数据手册.pdf 11积分/C币 立即下载
1/14

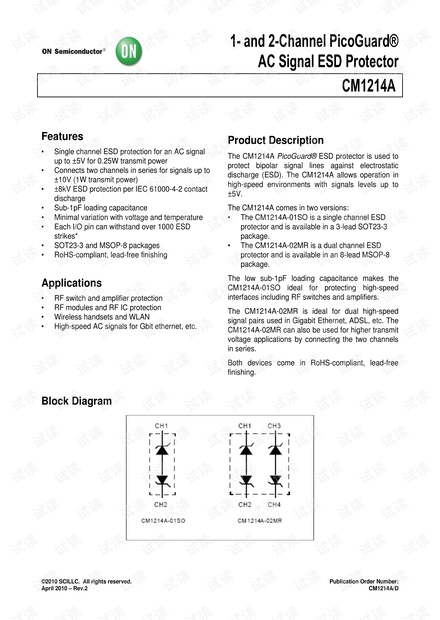

安森美半导体ESD保护器件CM1214A-D 数据手册.pdf第1页
