西门子ET200S FC 控制单元 ICU24(F).pdf

所需积分/C币:14 2019-09-15 21:06:41 1.87MB PDF
50
收藏 收藏
举报

西门子ET200S FC 控制单元 ICU24(F)pdf,西门子ET200S FC 控制单元 ICU24(F)

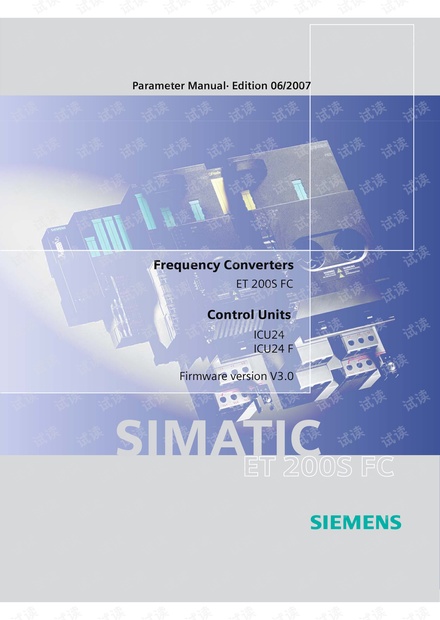

SIEMENS Edition 06/2007 Firmware version v3.0 A5E00348653BAB This manual contains notices you have to observe in order to ensure your personal safety, as well as to prevent damage to property. the notices referring to your personal safety are highlighted in the manual by a safety alert symbol, notices referring only to property damage have no safety alert symbol. These notices shown below are graded according to the degree of danger indicates that death or severe personal injury result if proper precautions are not taken △△△ indicates that death or severe personal injury result if proper precautions are not taken with a safety alert symbol, indicates that minor personal injury result if proper precautions are not taken without a safety alert symbol, indicates that property damage can result if proper precautions are nd en indicates that an unintended result or situation can occur if the corresponding information is not taken into account If more than one degree of danger is present, the warning notice representing the highest degree of dan ger will be used. A notice warning of injury to persons with a safety alert symbol may also include a warning relating to property damage The device system may only be set up and used in conjunction with this documentation. Commissioning and operation of a device/system may only be performed by Within the context of the safety notes in this documentation qualified persons are defined as persons who are authorized to commission, ground and label devices, systems and circuits in accordance with established safety prac tices and standards Note the following This device may only be used for the applications described in the catalog or the technical description and only in connection with devices or components from other manufacturers which have been approved or recommended by Sieme Correct, reliable operation of the product requires proper transport, storage, positioning and assembly as well as careful operation and maintenance All names identified by are registered trademarks of the Siemens AG. The remaining trademarks in this publication may be trademarks whose use by third parties for their own purposes could violate the rights of the owner The distribution and duplication of this document or the utilization and We have reviewed the contents of this publication to ensure transmission of its contents are not permitted without express written consistency with the hardware and software described. Since permission. Offenders will be liable for damages. All rights, including variance cannot be precluded entirely, we cannot guarantee full ights created by patent grant or registration of a utility model or consistency. However, the information in this publication is reviewed design are reserved regularly and any necessary corrections are included in subsequent Siemens AG Automation drives Standard drives Postfach 3269, 91050 Erlangen Siemens AG 2007 Germany Technical data subject to change Siemens Aktiengesellschaft SIMATIC ET 200S FC Control Units ICU24(F) Introduction to parameters 1-8 1.2 List of parameters 1-13 Command and drive data sets-Overview 1-198 1.3.1 Command Data Sets( CDS) 1-198 1.3.2 Drive Data Sets(DDS) 1-199 Connector/Binector(BICO)-Parameters 1203 1.4.1 Binector Input parameters 1203 1.4.2 Connector Input Parameters 1-204 1.4.3 Binector Output Parameters 1-205 1.4.4 Connector Output Parameters 1-206 1.4.5 Connector/Binector Output Parameters 1208 2-209 2.1 Contents: function diagrams 2-210 2.2 Symbols in funktion diagrams 2-212 2.3 Overview 2-214 2.4 External Interfaces 2-217 2.5 Technology Functions 2-220 2.6 Free Function blocks 2-227 2.7 Setpoint Channel 2-232 2.8 VIf Control 2-237 2.9 ∨ ector Control... 2-239 3-253 Faults and alarms -Overview 3-254 3.2 List of Fault and Alarm messages. ............................3-255 A279 -285 o Siemens AG 2007 All Rights Reserved Contents-5 SIMATIC ET 200S FC Control Units ICU24(F), Edition 06/2007 Contents-6 C Siemens AG 2007 All Rights Reserved SIMATIC ET 200S FC Control Units ICU24(F), Edition 06/2007 1.1 Introduction to parameters 1-8 1.2 List of parameters 113 1.3 Command and Drive Data sets-Overview 1-198 1.4 Connector/Binector(BICO)-Parameters 1-203 o Siemens AG 2007 All Rights Reserved 1-7 SIMATIC ET 200S FC Control Units ICU24(F), Edition 06/2007 The layout of the parameter description is as follows cO (if exist) 1515 CO: Additional torque setpoint/CO: Add trg. set Access level: 3 P-Group: Closed-ioop control Data type: Floating Point Data set: DDs Fig 1-1 Read-only parameter Index bIcO(f exist P07000,2 Selction of command source/Command source se CU22CS DP. Accoss level 3 P-Group: Commands Data type: Unsigned16 Quick comm. No Active: YES Data set: CDs Max Factory setting CU/PM variants schreibparameterpar Fig. 1-2 Write parameter Indicates the relevant parameter number. the numbers used are 4-digit numbers in the range 0000 to 9999. Only for PRoFInET there are a few parameters in the range of 61.000 Numbers prefixed with an"I"indicate that the parameter is a "read-only"param eter, which displays a particular value but cannot be changed di ing a different value via this parameter number All other parameters are prefixed with a"P". The values of these parameters can be changed directly in the range indicated by the" Min"and "Max"settings in the header. If these values have a physical unit it is shown in brackets indicates that the parameter is an indexed parameter and specifies the range of indices available indicates that the parameter has several bits, which can be evaluated or connected individually 1-8 C Siemens AG 2007 All Rights Reserved SIMATIC ET 200S FC Control Units ICU24(F), Edition 06/2007 Indicates the name of the relevant parameter. Certain parameter names include the following abbreviated prefixes Bl, Bo, CI Co and co/Bo followed by a colon These abbreviations have the following meanings P9999 Binector input, i. e parameter selects the source of a 间 binary signal Binector output, i.e. parameter connects as a binary BO =「rggg signal r999 Connector input, i.e. parameter selects the source of an 2(999: 9) analog signal Connector output, i. e parameter connects as an analog signa rogge CO/BO= Connector/Binector output, i.e. parameter connects as 9999 an analog signal and/or as a binary signal To make use of blco you will need access to the full parameter list At this level many new parameter settings are possible, including BICO functionality. BICO functionality is a different, more flexible way of setting and combining input and output functions. It can be used in most cases in conjunction with the simple, level 2 settings The bico system allows complex functions to be programmed. Boolean and mathematical relationships can be set up between inputs and outputs At Bl and Cl parameters the parameter number is specified under Factory setting with which this parameter is connected In this case the min and max values have dashes Indicates the level of user access Does not apply to SIMATIC ET 200S FC Specifies the functional group to which the parameter belongs Does not apply to SIMATIC ET200S FC o Siemens AG 2007 All Rights Reserved -9 SIMATIC ET 200S FC Control Units ICU24(F), Edition 06/2007 The data types available are shown in the table below Table 1-1 Available data types Unsigned 8-bit unsigned Unsigned16 16-bit unsigned Unsigned32(032) 32-bit unsigned Integer 16 16-bit integer Floating point Floating point Indicates whether or not (Yes or No)a parameter can only be changed during quick commissioning Does not apply to SIMATIC ET 200S FC Does not apply to SIMATIC ET 200S FC Parameters which are dependent on a data set are identified as follows CDS (Command Data Set) ·DDs( Drive data set) They are always indexed with [0...21 is vali [O]=Command Data Set O [1]=Command Data Set 1 [2]=Command Data Set 2 For is valid [0= Drive Data Set 0 [1]=Drive Data Set 1 Drive data set 2 1-10 C Siemens AG 2007 All Rights Reserved SIMATIC ET 200S FC Control Units ICU24(F), Edition 06/2007
