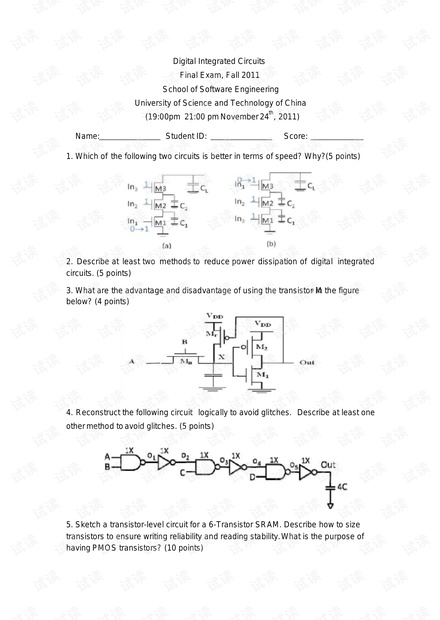

Digital Integrated Circuits
Final Exam, Fall 2011
School of Software Engineering
University of Science and Technology of China
(19:00pm–21:00 pm November 24
th
, 2011)
Name: Student ID: Score:
1. Which of the following two circuits is better in terms of speed? Why?(5 points)
2. Describe at least two methods to reduce power dissipation of digital integrated
circuits. (5 points)
3. What are the advantage and disadvantage of using the transistor M
r
in the figure
below? (4 points)
4. Reconstruct the following circuit logically to avoid glitches. Describe at least one
other method to avoid glitches. (5 points)
5. Sketch a transistor-level circuit for a 6-Transistor SRAM. Describe how to size
transistors to ensure writing reliability and reading stability.What is the purpose of
having PMOS transistors? (10 points)
