Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com
205568B • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • July 27, 2020 1
PRELIMINARY DATA SHEET
SKY58081-11 Sky5
®
Low Band Tx-Rx Front-End Module for
3G/4G/5G Applications with Low Band / High Band 2G
Applications
• Multi-band 2G 3G/4G/5G Mobile Devices
• Handsets, Data Cards, M2M
• LTE Advanced Carrier Aggregation (CA)
Features
• MIPI
®
RFFE 3.0 control interface w/ 1.8 V nominal supply
• Integrated switched duplexer filters for Bands 8, 12, 20 and 26
• Integrated Low Noise Amplifiers (LNA)
• Four auxiliary 3G/4G/5G Tx outputs for external filters
• Four auxiliary 3G/4G/5G TRx ports to support additional bands
• Tx filtering for harmonically-related LB-MB downlink CA
• Integrated low band and high band 2G PAs
• High band 2G works with companion MB/HB modules
• Integrated bi-directional RF coupler with cascade support
• Small, low profile package:
- 7.6 mm x 6.0 mm x 0.7 mm
- 56-pad configuration
3G Features
- WCDMA, HSPA+
- CDMA2000 1x RC1, RC3, EVDO (Rev A)
4G Features
- FDD LTE
- Uplink QPSK, 16QAM, 64QAM
- Critical L+M, L+H Downlink CA Support
5G Features
- n5, n8, n12, n20, n28, n71
Description
The SKY58081-11 SkyOne
®
Multimode Multiband Tx-Rx Front-
End Module (FEM) supports 2G/3G/4G/5G mobile devices and
operates efficiently in 3G/4G/5G modes. The SKY58081-11 is part
of our Sky5
®
product portfolio. The FEM consists of a low-band
3G/4G/5G PA block, low band and high-band 2G PA blocks, a
silicon controller containing the MIPI
RFFE interface, RF band
switches, antenna switches, a bi-directional coupler, integrated
filters for Bands 8, 12, 20 and 26 and low noise amplifier (LNA).
Extremely low leakage current maximizes device standby time.
The IC die and passive components are mounted on a multi-layer
laminate substrate. The assembly is encapsulated in a 7.6 mm x
6.0 mm x 0.7 mm, 56-pad MCM, SMT plastic package which
allows a highly manufacturable, low cost solution.
The SKY58081-11 FEM is optimized for LTE Advanced which
utilizes Carrier Aggregation for higher data rates. The combined
filtering, RF matching and TRx switching internal to the FEM
optimizes performance for popular Downlink (DL) CA band
combinations in a compact and low cost solution. The FEM
contains the necessary components between the antenna and
RFIC transceiver and is optimized to provide superior Rx
sensitivity and Tx efficiency.
Selecting the linear-GMSK operation standard disables VRAMP
input, so all PA biasing depends only on MIPI mode selection. The
transmitted envelope is then a linear function of RF input.
Selecting VRAMP-enabled operation, the PA controller provides
VRAMP control of the GMSK envelope and reduces sensitivity to
input drive, temperature, power supply, and process variations. A
Collector Voltage Amplitude Controller (COVAC) minimizes output
power variation into mismatch.
In EDGE linear mode, VRAMP voltage and MIPI-based bias
settings jointly optimize PA linearity and efficiency.
Exceptional RF coexistence planning and system techniques are
employed to minimize Rx de-sensitizing ("de-sense").

PRELIMINARY DATA SHEET SKY58081-11 Sky5
®
LOW-BAND TX-RX FRONT-END MODULE
for 3G/4G/5G APPLICATIONS with LOW BAND / HIGH-BAND 2G
Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com
2 July 27, 2020 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 205568B

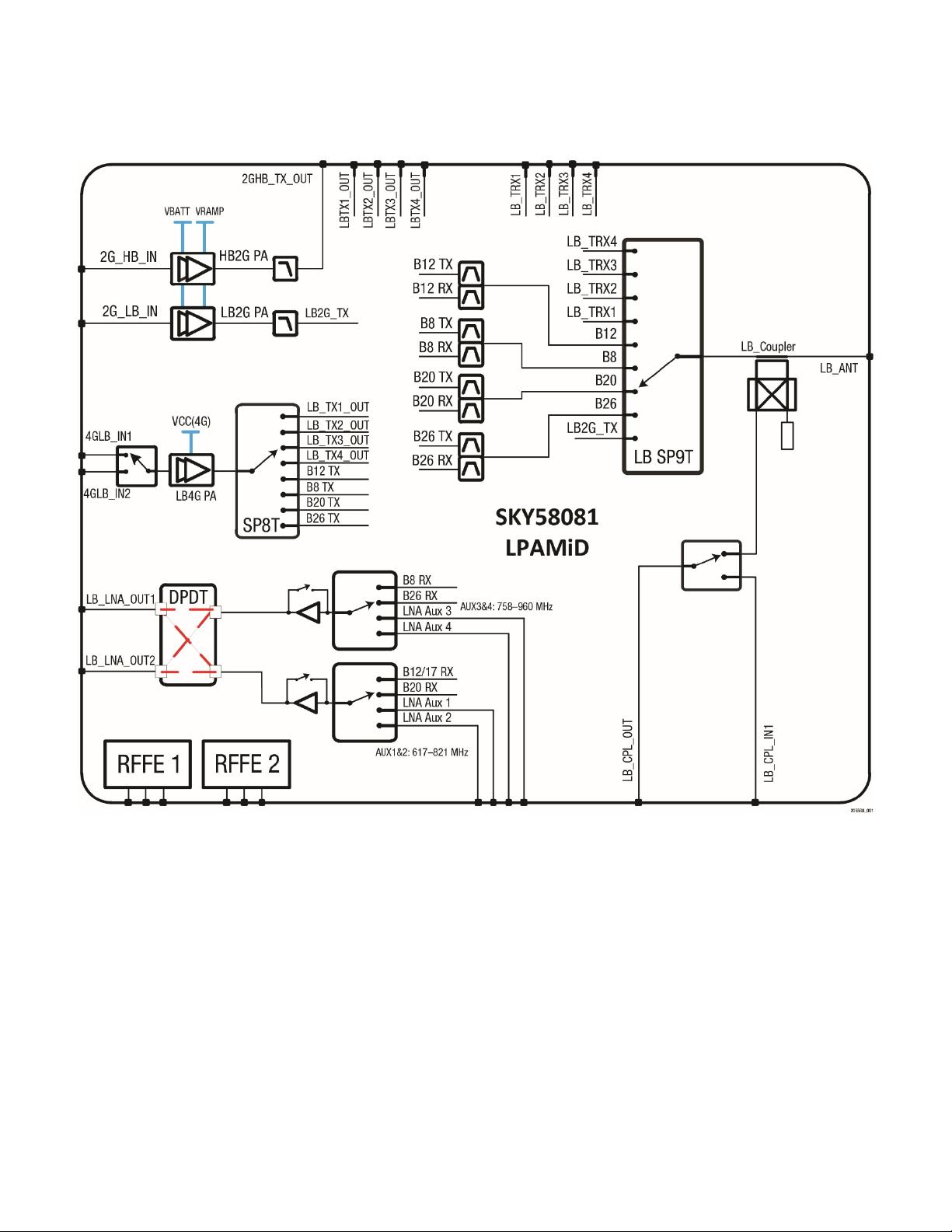

Figure 1. SKY58081-11 Functional Block Diagram

SKY58081-11 Sky5
®
LOW-BAND TX-RX FRONT-END MODULE PRELIMINARY DATA SHEET
for 3G/4G/5G APPLICATIONS with LOW BAND / HIGH-BAND 2G
Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com
205568B • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • July 27, 2020 3
Electrical Specifications
The following tables list the electrical characteristics of the
SKY58081-11 Front-End Module. Table 1 lists the absolute
maximum ratings and Table 2 shows the recommended operating
conditions. Electrical specifications for nominal operating
conditions are listed in Tables 4 through 25.
The MIPI RFFE section contains information for mapping PA and
ASM interfaces.
Table 1. SKY58081-11 Absolute Maximum Conditions
1
Parameter Symbol Minimum Typical Maximum Unit
RF Input Power 3G/4G/5G Input PIN_3G4G5G
15
2
dBm
2G Input PIN_2G
15
3
TRx Input PIN_TRX
33
3
Supply Voltage No RF VCC_3G4G5G –0.5 6.0 V
VBATT / VCC_2G –0.5 6.0
VDD_LNA –0.5 1.95
RF VCC_3G4G5G –0.5
6.0
4
VBATT / VCC_2G –0.5
6.0
4
VIO –0.5 2.0
Temperature Ranges Storage TSTG –40 +150 °C
Operating TCASE –40 +25 +110
Electrostatic Discharge Sensitivity (ESD)
IEC 61000-4-2
5
ESD
IEC –1000 +1000 V
Human Body Model (HBM)6 Class 1C ESDHBM –1000 +1000
Charge Device Model (CDM)7, Class C2 ESDCDM –500 +500
1
Exposure to maximum rating conditions for extended periods may reduce device reliability. There is no damage to device with only one parameter set at the limit and all other parameters set at
or below their nominal value.
2
50 ohm load applied. CW duty cycle 100%, center channel of each band.
3
50 ohm load applied. CW duty cycle 2G 25% pulsed, 3G/4G 100%.
4
50 ohm load applied.
5
Applies to antenna ports only.
6
ANSI/ESDA/JEDEC Standard JS-001-2014
7
JEDEC Standard, JESD22-C101 Charge Device Model (CDM)

PRELIMINARY DATA SHEET SKY58081-11 Sky5
®
LOW-BAND TX-RX FRONT-END MODULE
for 3G/4G/5G APPLICATIONS with LOW BAND / HIGH-BAND 2G
Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com
4 July 27, 2020 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 205568B
Table 2. SKY58081-11 Recommended Operating Conditions
Parameter Symbol Minimum Typical Maximum Unit
Supply Voltage 3G/4G/5G
V
CC_3G4G5G
1
0.5 3.4 4.2 V
Battery VBATT 3.0 3.8 4.8
LNA VDD_LNA 1.15 1.2 1.95
MIPI VIO 1.65 1.80 1.95
Nominal Test Condition (NTC) VBATT 3.8 V
2G EDGE
V
CC_2G
2
3.6
2G GMSK VCC_2G 3.5
3G/4G VCC_3G4G 3.4
5G VCC_5G 4.2
2G GMSK PIN_2G
3
3
dBm
T
A
4
+25 °C
Extreme Test Conditions (ETC) VBATT 3.0 4.8 V
2G GMSK VCC_2G 3.0 4.8
3G/4G/5G VCC_3G4G5G 4.2
2G GMSK PIN_2G
0
3
6 dBm
T
A
4
–20 +75 °C
RF Input Power
5
3G/4G/5G P
IN_3G4G5G 6 dBm
2G Burst Duty Cycle
6
GMSK/EDGE 1-4 slots D
B 12.5 50 %
Digital Control Signals Low SCLK,
SDATA
–0.5 0 0.2*VIO V
High 0.8*VIO 1.8 VIO
SCLK Frequency Write speed 52 MHz
Read speed 26
VIO Rise Time TVIO-R 450 µs
1
Refer to SKY58081-11 bias table. The bias table will contain all MIPI settings and Vcc voltages used to meet performance specifications. The bias table will not exceed the specified maximum
for V
CC_3G/4G/5G.
2
VBATT and VCC_2G are assumed common. Value shown allows for ohmic supply loss.
3
VRAMP-based operation
4
In all cases, Ambient Operating Temperature (TA) is specified relative to Case Temperature (TC) and assumes TA = (TC – 10 °C).
5
Unless otherwise specified, RF specifications in this datasheet assume 50
Ω
input and output termination, 12.5% duty cycle with <500 μs active period.
6
Max output power must be reduced by 6 dB to support 3-slot and 4-slot operation.

SKY58081-11 Sky5
®
LOW-BAND TX-RX FRONT-END MODULE PRELIMINARY DATA SHEET
for 3G/4G/5G APPLICATIONS with LOW BAND / HIGH-BAND 2G
Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com
205568B • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • July 27, 2020 5
Table 3. SKY58081-11 General Electrical Specifications
Unless otherwise specified: NTC per Table 2
Parameter Symbol Conditions Min Typ Max Unit
Power Control Voltage VRAMP_2G Required for operation over the power range 0.2 1.6 V
Resistance of VRAMP R_VRAMP DC resistance to ground 5
MΩ
Capacitance of VRAMP C_VRAMP Capacitance to ground 2 pF
VIO Current Active Mode IVIO 0.18 1.25 mA
Low Power Mode IVIO_LPM 25 µA
Digital Control Current ICTL Logic High 20 µA
Leakage Current (all supplies) ILEAK VBATT = VCC_3G4G5G = VCC_2G = 3.8 V, VIO = 0 V 20 µA
Turn On/Turn Off Time
1
T
EN 2 5 µs
Mode Switch Time
2
T
MODE_SW 1 2 µs
1 After all configuration MIPI programming has been completed, this is the delay from the end of the PA enable MIPI write. Turn On is defined as when PA gain is within 0.5dB of maximum gain.
Turn Off is defined as when the PA gain is 30dB less than maximum operating gain.
2 After all configuration MIPI programming has been completed, this is the delay of PA gain settling within ±0.5 dB due to a bias DAC change. The delay is measured from the end of the last MIPI
write.
Table 4. SKY58081-11 Electrical Specifications – Linear GMSK/EDGE Power Modes – Recommended Maximum Operating Power–
Unless otherwise specified, values are used as each Power Mode's Test Condition
Band Waveform Power Mode PRATED Unit
LB GMSK High Power Mode (HPM)
34.8
1
dBm
Medium Power Mode (MPM) 29.0
Low Power Mode (LPM) 23.0
Ultra-Low Power Mode (ULPM) 15.0
EDGE Medium Power Mode (MPM) 28.5
Low Power Mode (LPM) 22.0
Ultra-Low Power Mode (ULPM) 15.0
HB GMSK High Power Mode (HPM) 33.7
Medium Power Mode (MPM) 30.0
Low Power Mode (LPM) 26.0
Ultra-Low Power Mode (ULPM) 16.0
EDGE High Power Mode (HPM) 29.1
Medium Power Mode (MPM) 28.0
Low Power Mode (LPM) 24.0
Ultra-Low Power Mode (ULPM) 18.0
1
Vcc_2G =3.6V
