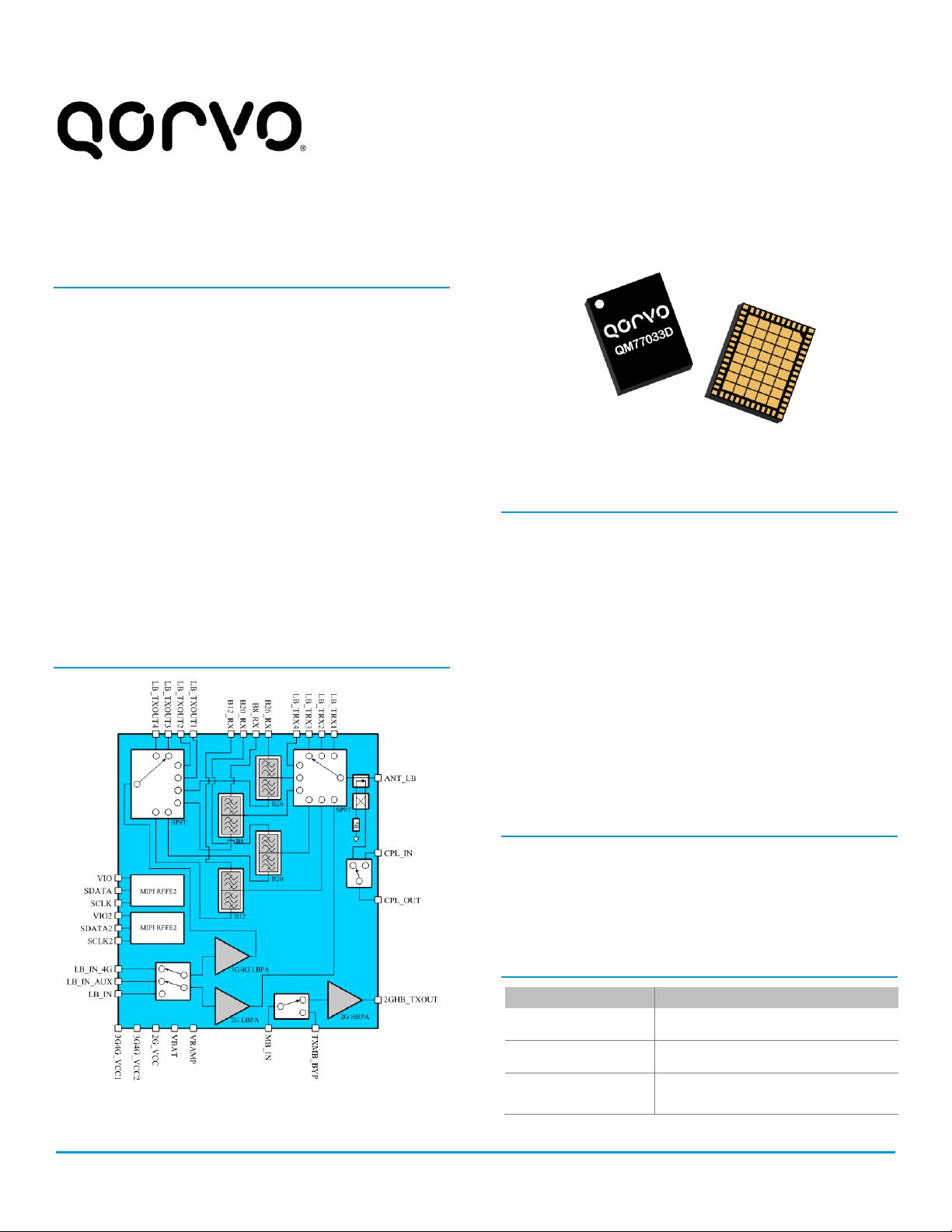

QM77033D
Low Band Switched PA plus Duplexer
ADVANCE
D
QM77033D Data Sheet
DS20190603 | Subject to change without notice
1 of 41
www.qorvo.com
ADVANCED
< PRELIMINARY >
< PRELIMINARY >
Product Overview
The Qorvo
®
QM77033D is multi-mode, multi-band high
efficiency linear Low Band S-PAD (Switched PA plus Duplexer)
designed for use as the final amplification stage in multi-mode
GSM / CDMA / EDGE / WCDMA / LTE / NR mobile cellular
equipment. The high efficiency LB S-PAD contains three
amplifier paths for 3G/4G/5G Low, 2G Low and 2G High Band
frequencies followed by switch outputs for multi-band
coverage. QM77033D band select and bias are programmed
through Mobile Industry Processor Interface (MIPI) buses. This
QM77033D supports Average Power Tracking (APT) for higher
system efficiency at various power levels and modulations, as
well as is Envelope Tracking (ET) capable for current
consumption optimization.
The QM77033D is designed to be used with QM77030/31/38
Mid/High Band Module and is packaged in a RoHS-compliant,
compact 56-pin, 6.0x7.6X0.8(max) mm surface-mount leadless
package.
Functional Block Diagram
Functional Block Diagram
56 Pin 6.0x7.6 mm leadless SMT Package
Key Features
• Multi-Mode and Multi Band Capabilities;
GSM/EDGE/CDMA2000/WCDMA/FDD-LTE/NR
• Integrated Band 26(5), 8, 12 and 20 duplexers and GSM TX
Harmonic Filters
• Quad-Band EDGE, GPRS class 12 compatible
• Additional Bands Through External Paths
• MIPI RFFE V2.1 Digital Control Interface Applications
• 2G Pin and VRAMP Power Control
• Separate MIPI controllers for PA and ASM
• Uplink and Downlink Carrier Aggregation
• Designed and Optimized for use with DC-DC converter
• Power Modes and Bias Programmable with MIPI RFFE
Interfaces
Applications
• 2G/3G/4G/5G Multi-Mode handsets
• WCDMA and LTE datacards or wearable devices
• High performance Communication Systems
• LTE/NR channel Bandwidths up to 20MHz
Ordering Information
Part Number
Description
QM77033DSR
7” Reel with 100 pieces
QM77033DTR13
13” Reel
QM77033DDK
Design Kit
(includes Evaluation board)

QM77033D
QM77033D Data Sheet
DS20190603 | Subject to change without notice
2 of 41
www.qorvo.com
Absolute Maximum Ratings
PARAMETER
CONDITIONS
RATING
Storage Temperature
−40 to +150 °C
Operating Temperature
−30 to +85 °C
Supply Voltage in Standby Mode
+6 V
Supply Voltage in Idle Mode
+6 V
Supply Voltage in Operating Mode
+6 V
Supply Voltage, VBATT
+6 V
Digital control signals (VIO, SLCK, SDATA)
+2 V
RF Input Power
CW, 50 Ω, T = 25
°
C
+10 dBm
Output Load VSWR (Ruggedness) ANT_LB (2G LB)
*1
Open Loop
*3
10:1
Output Load VSWR (Ruggedness) ANT_LB (3G/4G)
*2
Closed Loop
*3
10:1
Output Load VSWR (Ruggedness) 2G_HB_TXOUT (2G HB)
*1
Open Loop
*3
8:1
Output Load VSWR (Ruggedness) LB_TXOUT[1-4]
*2
Closed Loop
*3
10:1
ESD SAW Filter Pins (HBM)
500 V
ESD All (non-SAW Filter) Pins (HBM)
1000 V
*1
2G/EDGE is 50% duty-cycle up to rated power (set under 50-ohm condition)
*2
4G is 10M12RB modulation up to rated power (set under 50-ohm condition)
*3
Open-loop and Closed-Loop testing allows maximum RF input power to +6dBm
Exceeding any one or a combination of the Absolute Maximum Rating conditions may cause permanent damage to the device. Extended application of Absolute Maximum
Rating conditions to the device may reduce device reliability. Specified typical performance or functional operation of the device under Absolute Maximum Rating conditions is
not implied.
Recommended Operating Conditions
Parameter
Min.
Typ.
Max.
Units
Operating Frequency Range
617
960
MHz
Operating Frequency Range (2G HB)
1710
1910
MHz
Operating Ambient Temperature
-20
+25
+85
°C
Supply Voltage, VBATT
+3.0
+4.8
V
Supply Voltage, 3G4G VCC1, VCC2
+0.5
*1
+4.6
V
Supply Voltage, 2G VCC
+0.5
*1
+4.6
V
Supply Voltage, VIO
+1.65
+1.8
+1.95
V
Vramp, GMSK (Pout=Max)
+1.65
V
Vramp, GMSK (Pout=Min)
+0.25
V
VIO Rise Time
450
µs
SCLK, SDATA Logic Low
0
0.3 * VIO
V
SCLK, SDATA Logic HIGH
0.7 * VIO
+1.8
VIO
V
SCLK, SDATA Input, Current
50
µA
SCLK Write Speed
38.4
52
MHz
SCLK Read Speed
26
MHz
Total Leakage Current (ICC+IBAT)
20
µA
*1
VCC down to 0.5V may be used for backed-off power when using DC-DC converter to reduce low power current drain.
Electrical specifications are measured at specified test conditions. Specifications are not guaranteed over all recommended operating conditions.

QM77033D
QM77033D Data Sheet
DS20190603 | Subject to change without notice
3 of 41
www.qorvo.com
Electrical Specifications
5G Waveforms
5G Waveform
Duplex Mode
Channel BW
SCS
Modulation
RB Allocation
RB Allocated
RB Start
MPR
NR1
FDD
20
15
OFDM QPSK
Inner_Full
50
25
0
NR2
FDD
20
15
OFDM QPSK
Outer_Full
100
0
1
NR3
FDD
20
15
OFDM 256QAM
Outer_Full
100
0
4.5
NR4
FDD
15
15
OFDM QPSK
Inner_Full
36
18
0
NR5
FDD
15
15
OFDM QPSK
Outer_Full
75
0
1
NR6
FDD
15
15
OFDM 256QAM
Outer_Full
75
0
4.5
NR7
FDD
10
15
OFDM QPSK
Inner_Full
25
12
0
NR8
FDD
10
15
OFDM QPSK
Outer_Full
50
0
1
NR9
FDD
10
15
OFDM 256QAM
Outer_Full
50
0
4.5

QM77033D
QM77033D Data Sheet
DS20190603 | Subject to change without notice
4 of 41
www.qorvo.com
PARAMETER
CONDITIONS
MIN.
TYP.
MAX.
UNITS
5G NR
n13
TX Electrical Specifications
Unless otherwise stated:
All unused RF ports terminated in 50Ω, Input and Output = 50Ω,
Temp = 25°C, VBATT = 4.2V, APT Mode.
Operational Frequency Range
NR Band n13
777
787
MHz
Maximum Linear Output Power
HPM, VCC = 4.2V
NR 7
28
dBm
Gain
HPM, VCC = 4.2V
NR 7
30
dB
HPM, VCC = 4.2V, VBAT=3.4V,
Temp = -20°C to +85°C
NR 7
28
LPM, VCC =1.5V, Pout=14.5dBm
NR 7
13
PAE
HPM, VCC = 4.2V, Pout = Pmax
NR 7
28
%
Current Consumption
HPM, VCC = 4.2V, Pout = Pmax
NR 7
570
mA
LPM, VCC ≤ 0.7V, Pout = 1.5dBm
NR 7
128
EUTRA ACLR
HPM, VCC = 4.2V, Pout ≤ Pmax
NR 8
-36
-33
dBc
UTRA - ACLR1
HPM, VCC = 4.2V, Pout ≤ Pmax
NR 8
-41
-36
UTRA - ACLR2
HPM, VCC = 4.2V, Pout ≤ Pmax
NR 8
-42
-39
EVM
HPM, VCC = 4.2V, Pout ≤ Pmax
NR 9
1.8
%

QM77033D
QM77033D Data Sheet
DS20190603 | Subject to change without notice
5 of 41
www.qorvo.com
PARAMETER
CONDITIONS
MIN.
TYP.
MAX.
UNITS
5G NR
n28
TX Electrical Specifications
Unless otherwise stated:
All unused RF ports terminated in 50Ω, Input and Output = 50Ω,
Temp = 25°C, VBATT = 4.2V, APT Mode.
Operational Frequency Range
NR Band n28
703
748
MHz
Maximum Linear Output Power
HPM, VCC = 4.2V
NR 1
28
dBm
Gain
HPM, VCC = 4.2V
NR 1
30
dB
HPM, VCC = 4.2V, VBAT=3.4V,
Temp = -20°C to +85°C
NR 1
28
LPM, VCC =1.5V, Pout=14.5dBm
NR 1
16
PAE
HPM, VCC = 4.2V, Pout = Pmax
NR 1
28
%
Current Consumption
HPM, VCC = 4.2V, Pout = Pmax
NR 1
560
mA
LPM, VCC ≤ 0.7V, Pout = 1.5dBm
NR 1
165
EUTRA ACLR
HPM, VCC = 4.2V, Pout ≤ Pmax
NR 2
-36
-33
dBc
UTRA - ACLR1
HPM, VCC = 4.2V, Pout ≤ Pmax
NR 2
-41
-36
UTRA - ACLR2
HPM, VCC = 4.2V, Pout ≤ Pmax
NR 2
-43
-39
EVM
HPM, VCC = 4.2V, Pout ≤ Pmax
NR 3
1.7
%
