Specificaons subject to change without noce. Copyright © 2011 MISTRAS Group, Inc. All Rights Reserved.
www.mistrasgroup.com
WORLDWIDE HEADQUARTERS:
195 Clarksville Rd •
Princeton Jct, NJ 08550 • USA
T: +1.609.716.4000 • F: +1.609.716.0706
E-MAIL: sales.systems@mistrasgroup.com
CANADA T: +1.403.556.1350
CHINA T: +86.10.5877.3631
FRANCE T: +331.498.26040
GERMANY T: +49.040 2000.4025
GREECE T: +30.210.2846.801-4
HOLLAND T: +31.010.245.0325
INDIA T: +91.22.2586.2444
JAPAN T: +81.33.498.3570
MALAYSIA T: +60.9.517.3788
MIDDLE EAST T: +973.17.729.356
RUSSIA T: +7495.789.4549
SCANDINAVIA T: +46(0)31.252040
S. AMERICA T: +55.11.3082.5111
UK T: +44(0)1954.231.612
Products & Systems
Division
DO NOT ALTER THIS FILE !!!
This file is the MASTER logo; Altering this graphic will alter its appereance in EVERY document that
links to it.
If you need this logo in a different format, save a COPY of this file in that format. If the program
you are using supports the importing of an Illustrator file directly, please AVOID saving this logo in
another format. Linking directly to this file, if supported, will yield the best results and avoid needless
duplication in different formats.
If you need a variation of this logo, such as a monochrome version, or a version which
includes a tagline, underline, or any other graphical element, save a COPY of this file, making sure
to use a filename that clearly describes the variation.
For variations of the logo that are not likely to be used again, such as for a very speciific or unsual
project, premium or display save the version of the logo in the graphics folder of the project that
needs it. DO NOT SAVE unusual or obscure alternate versions of this logo in the main logo folder,.
Products & Systems
Division
G r o u p , I n c.

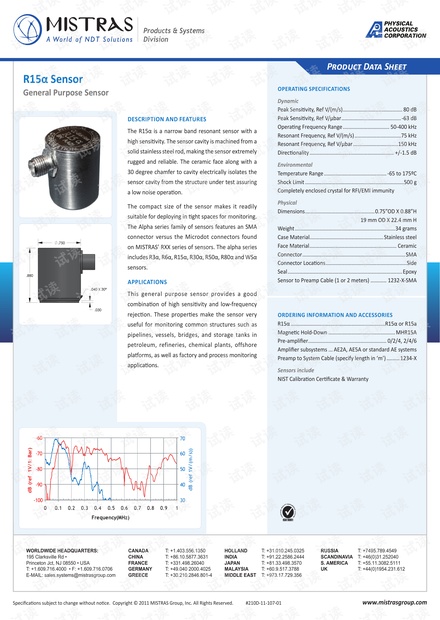

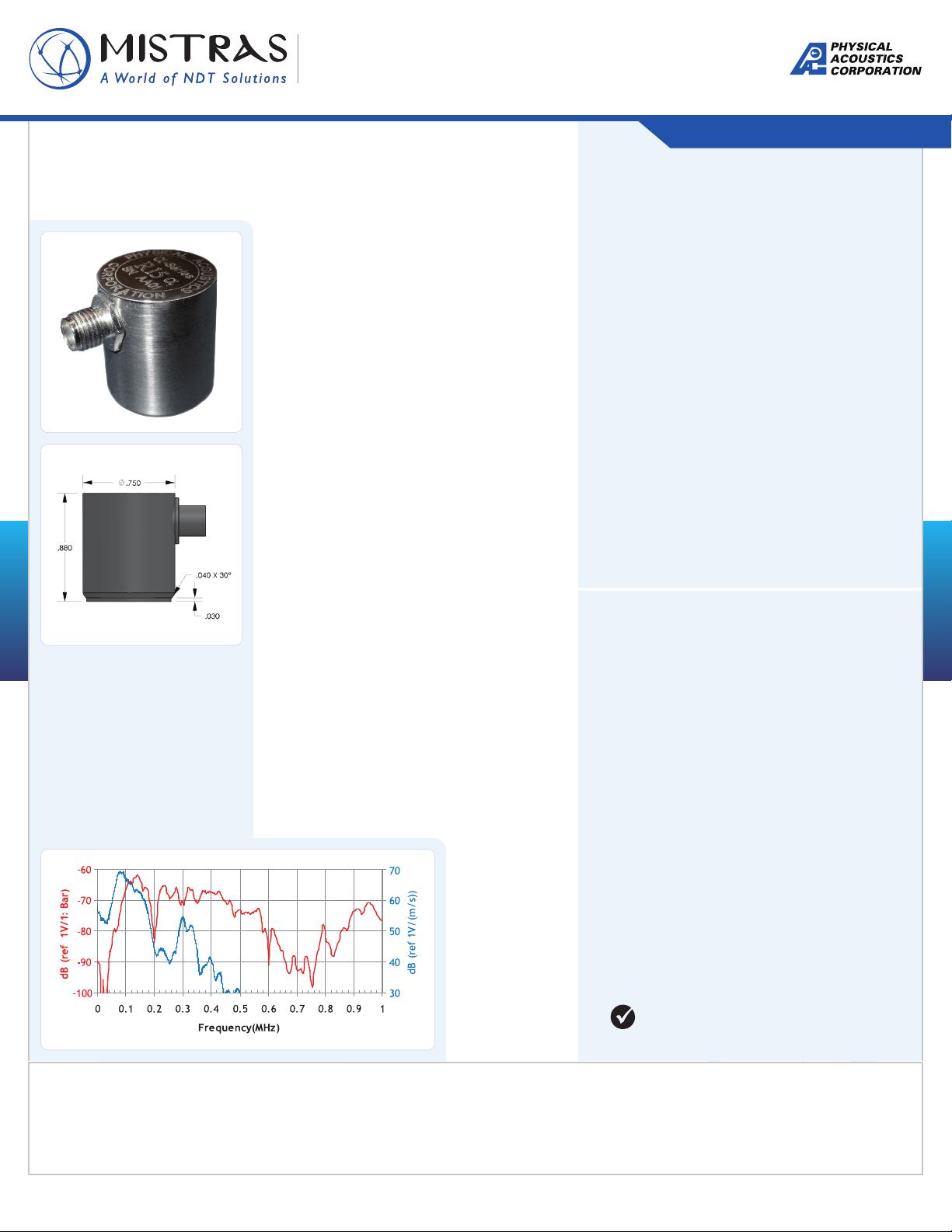

The R15α is a narrow band resonant sensor with a
high sensivity. The sensor cavity is machined from a
solid stainless steel rod, making the sensor extremely
rugged and reliable. The ceramic face along with a
30 degree chamfer to cavity electrically isolates the
sensor cavity from the structure under test assuring
a low noise operaon.
The compact size of the sensor makes it readily
suitable for deploying in ght spaces for monitoring.
The Alpha series family of sensors features an SMA
connector versus the Microdot connectors found
on MISTRAS’ RXX series of sensors. The alpha series
includes R3α, R6α, R15α, R30α, R50α, R80α and WSα
sensors.
This general purpose sensor provides a good
combinaon of high sensivity and low-frequency
rejecon. These properes make the sensor very
useful for monitoring common structures such as
pipelines, vessels, bridges, and storage tanks in
petroleum, refineries, chemical plants, offshore
plaorms, as well as factory and process monitoring
applicaons.
Peak Sensivity, Ref V/(m/s) ......................................... 80 dB
Peak Sensivity, Ref V/µbar ......................................... -63 dB
Operang Frequency Range ................................ 50-400 kHz
Resonant Frequency, Ref V/(m/s) ................................75 kHz
Resonant Frequency, Ref V/µbar ...............................150 kHz
Direconality .......................................................... +/-1.5 dB
Temperature Range ........................................... -65 to 175ºC
Shock Limit ....................................................................500 g
Completely enclosed crystal for RFI/EMI immunity
Dimensions ................................................0.75”OD X 0.88”H
19 mm OD X 22.4 mm H
Weight .....................................................................34 grams
Case Material...................................................Stainless steel
Face Material ............................................................ Ceramic
Connector ....................................................................... SMA
Connector Locaons ........................................................Side
Seal ............................................................................... Epoxy
Sensor to Preamp Cable (1 or 2 meters) ........... 1232-X-SMA
R15α .................................................................R15α or R15a
Magnec Hold-Down .............................................. MHR15A
Pre-amplier ...................................................... 0/2/4, 2/4/6
Amplier subsystems ... AE2A, AE5A or standard AE systems
Preamp to System Cable (specify length in ‘m’) .........1234-X
NIST Calibraon Cercate & Warranty
#210D-11-107-01
