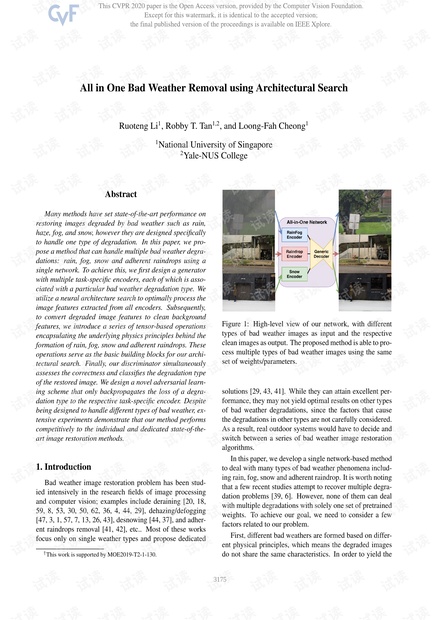

All in One Bad Weather Removal using Architectural Search

Ruoteng Li

, Robby T. Tan

1,2

, and Loong-Fah Cheong

National University of Singapore

Yale-NUS College

Abstract

Many methods have set state-of-the-art performance on

restoring images degraded by bad weather such as rain,

haze, fog, and snow, however they are designed speciﬁcally

to handle one type of degradation. In this paper, we pro-

pose a method that can handle multiple bad weather degra-

dations: rain, fog, snow and adherent raindrops using a

single network. To achieve this, we ﬁrst design a generator

with multiple task-speciﬁc encoders, each of which is asso-

ciated with a particular bad weather degradation type. We

utilize a neural architecture search to optimally process the

image features extracted from all encoders. Subsequently,

to convert degraded image features to clean background

features, we introduce a series of tensor-based operations

encapsulating the underlying physics principles behind the

formation of rain, fog, snow and adherent raindrops. These

operations serve as the basic building blocks for our archi-

tectural search. Finally, our discriminator simultaneously

assesses the correctness and classiﬁes the degradation type

of the restored image. We design a novel adversarial learn-

ing scheme that only backpropagates the loss of a degra-

dation type to the respective task-speciﬁc encoder. Despite

being designed to handle different types of bad weather, ex-

tensive experiments demonstrate that our method performs

competitively to the individual and dedicated state-of-the-

art image restoration methods.

1. Introduction

Bad weather image restoration problem has been stud-

ied intensively in the research ﬁelds of image processing

and computer vision; examples include deraining [20, 18,

59, 8, 53, 30, 50, 62, 36, 4, 44, 29], dehazing/defogging

[47, 3, 1, 57, 7, 13, 26, 43], desnowing [44, 37], and adher-

ent raindrops removal [41, 42], etc.. Most of these works

focus only on single weather types and propose dedicated

†

This work is supported by MOE2019-T2-1-130.

RainFog

Encoder

Raindrop

Encoder

Snow

Encoder

Generic

Decoder

All-in-One Network

Figure 1: High-level view of our network, with different

types of bad weather images as input and the respective

clean images as output. The proposed method is able to pro-

cess multiple types of bad weather images using the same

set of weights/parameters.

solutions [29, 43, 41]. While they can attain excellent per-

formance, they may not yield optimal results on other types

of bad weather degradations, since the factors that cause

the degradations in other types are not carefully considered.

As a result, real outdoor systems would have to decide and

switch between a series of bad weather image restoration

algorithms.

In this paper, we develop a single network-based method

to deal with many types of bad weather phenomena includ-

ing rain, fog, snow and adherent raindrop. It is worth noting

that a few recent studies attempt to recover multiple degra-

dation problems [39, 6]. However, none of them can deal

with multiple degradations with solely one set of pretrained

weights. To achieve our goal, we need to consider a few

factors related to our problem.

First, different bad weathers are formed based on differ-

ent physical principles, which means the degraded images

do not share the same characteristics. In order to yield the

4321

3175

optimal performance, we need to design the network ac-

cording to the underlying physics principles.

Second, bad weather image restoration can be consid-

ered as a many-to-one feature mapping problem, i.e., image

features from different bad weather domains (rain, fog, rain-

drop, snow) are transformed to clean image features by a set

of network parameters (multiple encoders), after which the

clean features are transformed to the clean natural images

(one decoder). Hence, it is critical to ﬁnd a proper way to

process features from multiple domains and subject them to

further appropriate operations. This motivates us to design

an architectural-search approach that automatically ﬁnds an

optimal network architecture for the aforementioned task.

The basic building blocks for our network-search module

are made up of a series of fundamental operations that can

convert degraded image features to clean features based on

the physics characteristics of bad weather image degrada-

tion.

Third, most existing discriminators in GAN-based ap-

proaches are trained to judge whether the restored images

are real or not. However, it does not provide error signals for

the generative network to differentiate the images into dif-

ferent degradation types. The encoders may not be able to

update their learnable parameters based on its own assess-

ment of degradation type independently. To solve this prob-

lem, we propose a multi-class auxiliary discriminator that

can classify the image degradation type and judge the cor-

rectness of the restored image simultaneously. In addition,

unlike other existing GAN-based methods, our network has

multiple feature encoders, each of which corresponds to a

particular degradation type. When we backpropagate the

discriminative loss, the network propagates only the loss to

the respective encoder based on the classiﬁed results. Thus,

only the corresponding encoder will update the parameters

based on the adversarial loss; and, all the other encoders

will not be affected.

We summarise the contributions of our method as follow:

1. We propose an all-in-one bad weather removal method

that can deal with multiple bad weather conditions

(rain streaks, rain veiling effect, snow, and adherent

raindrop) in one network.

2. We propose a neural architecture search technique to

ﬁnd the best architecture for processing the features us-

ing different weather encoders. A series of fundamen-

tal operations that result in features invariant to bad

weather are introduced. These fundamental operations

form the basic building blocks for the search.

3. We propose a novel end-to-end learning scheme that

can handle multiple bad weather image restoration

tasks. The key idea is to let the errors of the discrim-

inative loss backpropagate into a speciﬁc encoder, in

accordance to the type of the bad weather input.

2. Related Works

Deep learning based solutions have achieved promising

performance in various image processing problems such

as denoising [58], image completion [16], super-resolution

[21], deblurring [45], style transfer [9], etc. This is also true

for bad weather restoration or image enhancement, such as

dehazing [47, 3, 1, 57, 7, 13, 26, 43], removal of raindrop

and dirt [20, 18, 59, 8, 53, 30, 50, 62, 36, 4], of moderate

rain [44, 29], and of heavy rain [25, 54]. These recent works

have all shown the superiority of deep neural network mod-

els to conventional methods.

Rain Removal Kang et al.’s [20] is the ﬁrst work to in-

troduce single image deraining method that decomposes an

input image into its low frequency and high-frequency com-

ponents using bilateral ﬁlter. Recent state-of-the-art rain re-

moval strategies are dominated by deep neural networks.

Fu et al.’s [8] develop a deep CNN to extract discrimina-

tive features from the high frequency component of the rain

image. Yang et al. [54] design a multi-task deep learn-

ing architecture that learns the location and intensity of rain

streaks simultaneously. Li et al.’s [25] propose a network

that addresses the rain streaks and rain veiling effects preva-

lent in heavy rain scenes. This method not only proposes

a residue decomposition step, but also elegantly integrates

the physics-based rain model and adversarial learning to

achieve state-of-the-art performance. It jointly learns the

physics parameters of heavy rain, including streak inten-

sity, transmission, atmospheric light and utilizes generative

adversarial network to bridge the domain gaps between the

proposed rain model and real rain.

Raindrop Removal There are a number of methods that

detect and remove raindrops from single image based on

traditional hand-crafted features [52, 55]. Eigen et al.’s [5]

train a CNN with pairs of raindrop-degraded images and

the corresponding raindrop-free images. Its network is a

fairly shallow model that only has 3 convolutional layers.

While the method works, particularly for relatively sparse

and small droplets as well as dirt, the result tends to be

blurry. Qian et al. [41] use attention maps in a GAN net-

work that successfully removes raindrop from single image.

However, the main drawback of this approach is the atten-

tion maps that are inherently difﬁcult to obtain. The au-

tomatically computed attention map ground truth often re-

sults in poor quality. Quan et al.’s [42] further explore the

generation of attention maps based on the mathematical de-

scription of the shape of raindrops. It combines the raindrop

attention maps and detected raindrop edges to obtain state-

of-the-art performance of single image raindrop removal.

Snow Removal [2, 46] use HOG techniques to capture

characteristics of snow ﬂakes for snow removal from sin-

gle images. Xu et al. [51] utilize color assumptions to

model the falling snow particles. In contrast to these hand-

crafted features that capture partial characteristic of snow

4322

3176

RainFog FE

Snow FE

Raindrop FE

Feature

Discriminator

Decoder

Rainfog:T/F?

Snow:T/F?

Raindrop:T/F?

Clean:T/F?

Generator Discriminator

Full Architecture

RainFog FE

Snow FE

Raindrop FE

Input


Task-Speciﬁc

Feature Extractor

Generic Decoder

Feature

Clean


Generator

Feature Search

Cell 0

Cell 1Cell -2

Figure 2: Left: Full architecture of the proposed network. The dotted lines indicate the back-propagation paths of the

adversarial loss from the discriminator. The discriminator classiﬁes the degradation type and also determines whether the

input image is real or fake. The classiﬁcation error of a particular degradation type is only used to update the corresponding

encoder assigned to this type in the generative network. The loss from one degradation type is only propagated to update the

corresponding feature encoder. Right: The detailed structure of the generator of the proposed network. In our experiment,

we set the number of cells to 3 ( cell -2, cell-1 and cell 0 ). FE stands for Feature Extractor.

ﬂakes and streaks, Li et al.’s [24] encode snow ﬂakes or

rain streaks using an online multi-scale convolutional sparse

coding model.

Neural Architecture Search (NAS) Neural Architecture

Search aims at automatically designing neural network ar-

chitectures to achieve optimal performance, while minimiz-

ing human hours and efforts. Early works like [63, 19, 11]

directly construct the entire network and train it automat-

ically with supervision from designing a reinforcement

learning controller RNN. Many recent papers [32, 40] point

out that searching the repeatable cell structure and ﬁxing the

network level structure are more effective and efﬁcient. The

PNAS method [32] proposed a progressive search that sig-

niﬁcantly reduces the computation cost. Our work is closely

related to [34, 31] that further relax the network searching

task into an end-to-end optimization problem.

3. Proposed Method

3.1. Problem Formulation

Different weather phenomena degrade images accord-

ing to different physics principles. For example, a heavy

rain image (where rain veiling effect, visually similar to

fog/mist, is prevalent) is modelled as [25]:

I(x) = t(x)(J(x) +

(x)) + (1 − t(x))A, (1)

where I(x) is the rain image at location x, t is the transmis-

sion map and A is the global atmospheric light of the scene.

represents the rain streaks at the i-th layer along the line

of sight. An adherent raindrop image is modelled as [41] :

I(x) = (1 − M(x))J(x) + K(x), (2)

where I is the colored raindrop image and M is the binary

mask. J is the background image and K is the imagery

brought about by the adherent raindrops, representing the

blurred imagery formed the light reﬂected by the environ-

ment. Lastly, a snow image can be modelled as [37]:

I(x) = zS(x) + J(x)(1 − z), (3)

where S represents the snow ﬂakes and z is a binary mask

indicating the location of snow.

From the formulations of these different bad weather im-

ages, it is evident that these problems do not share the same

intrinsic characteristics, which explains why a dedicated al-

gorithm designed for one task does not work on the other

tasks. To address this problem, we model the bad weather

tasks with the following generic function:

J(x) = F(I(x)), (4)

where F represents an auto-encoder that maps degraded im-

ages to clean background images, and should embody the

mentioned formulations such as Eq. (1)(2)(3). To realize

this, we consider a network with multiple encoders:

J(x) = G ⊙ E

(x)), (5)

where E

represents the encoder that takes in a degraded im-

age I

with respect to a degradation type ρ. G is the generic

decoder that restores the input to a clean background image

4323

3177

剩余10页未读，继续阅读

评论收藏

内容反馈

DeepLearning小舟

粉丝: 2143
资源: 57

All in One Bad Weather Removal Using Architectural Search.pdf

最新资源

All in One Bad Weather Removal Using Architectural Search.pdf

Single Image Haze Removal Using Dark Channel Prior（基于暗原色先验原理的单一图像去雾技术），附源代码与PPT

Early Application Identification.pdf

Single Image Haze Removal Using Dark Channel Prior 图像去雾 原文及翻译 何凯明

Multi-Modal Reflection Removal Using.pdf

linux_rootkits_for_beginners_from_prevention_to_removal_901.pdf

Real-Time+Specular+Highlight+Removal+Using+Bilateral+Filtering.pdf

Single Image Haze Removal Using Dark Channel Prior

Single Image Haze Removal Using Dark Channel Prior中文版.pdf

iso-iec 14496-10(3rd_2006-03-01)_MPEG4_AVC_H264.pdf

Kindle DRM Removal 4.21.7026.385.rar

诺顿产品移除工具(Norton.Removal.Tool.2008.0.1.14)

Ebooks For Dummies Collection

Single Image Haze Removal Using Dark Channel Prior 翻译

3D metal removal simulation .PDF

诺顿专业卸载工具Norton Removal Tool V2011.0.5.13.rar

译文_Single Image Haze Removal Using Dark Channel Prior.docx

Advanced PDF Password Recovery v1.31.48.35 (supports FileOpen DRM removal).zip

论文研究-Control Action of Temperature on ULSI Silicon Substrate CMP Removal Rate and Kinetics Process.pdf

Single Image Reflection Removal论文整理阅读.pptx

ChatGPT教程（终极版）最全整理

Stable-Diffusion WEBUI 简体中文语言包（2023.05.30更新）

Python求解华为挑战杯比赛项目汇总.zip

亚博K210模型训练部署

catsdogs.rar

神经网络回归预测--气温数据集

XGBoost+LightGBM+LSTM-光伏发电量预测

博客中Kmeans以及FCM算法数据（免积分）

基于鲸鱼优化算法优化VMD参数试看效果代码(目标函数为样本熵)

Mathwork+Matlab+编程手册

最新资源

Single Image Haze Removal Using Dark Channel Prior 图像去雾原文及翻译何凯明
