LT6911C Datasheet R1.2
We produce mixed-signal products for a better digital world!
Confidential
1
Lontium Semiconductor
LONTIUM SEMICONDUCTOR
CORPORATION
ClearEdge Technology

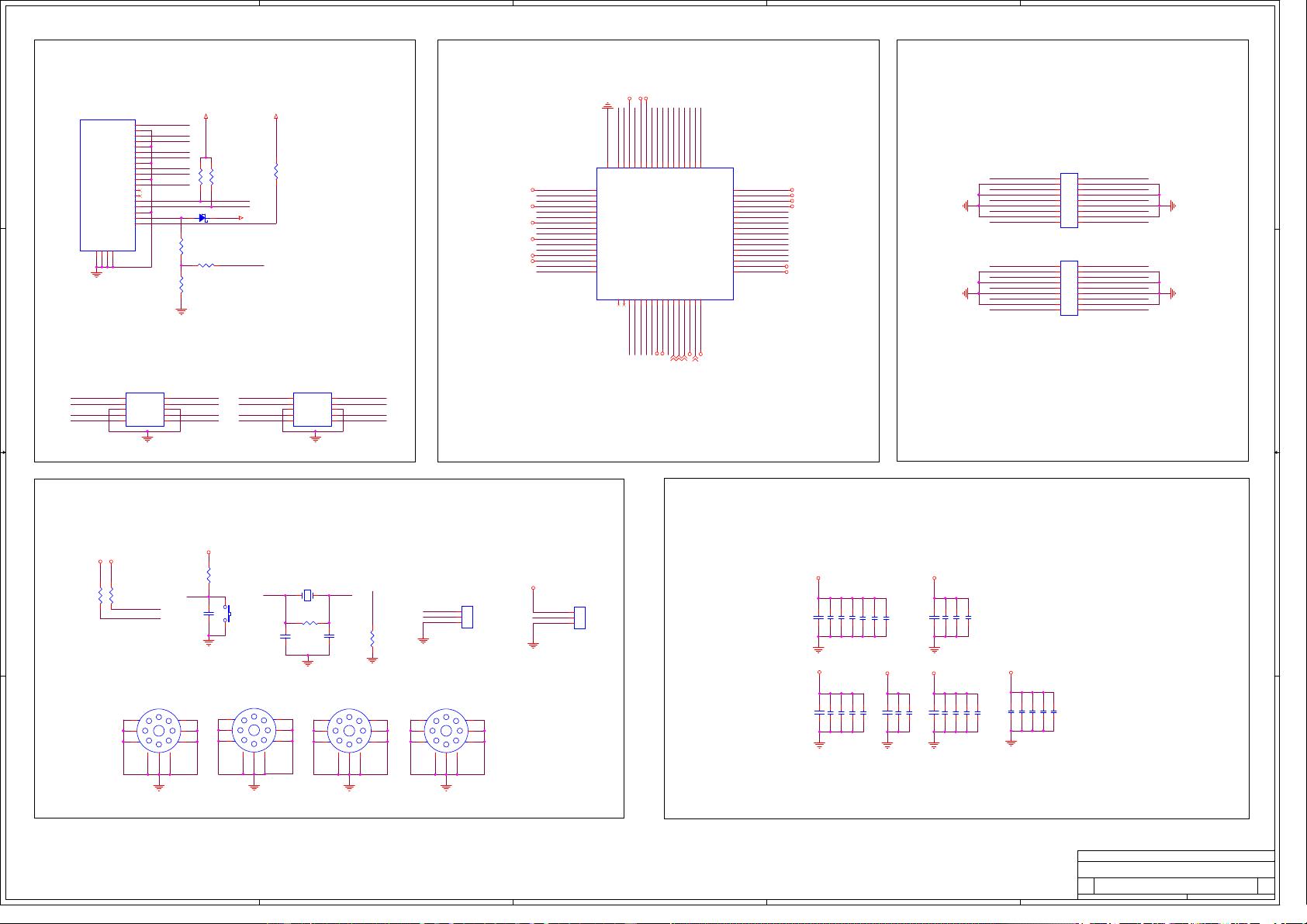

LT6911C
HDMI1.4 to Dual-port MIPI DSI/CSI with Audio
Datasheet
LT6911C Datasheet R1.2
We produce mixed-signal products for a better digital world!
Confidential
2
Lontium Semiconductor
1. Features
HDMI1.4 Receiver
Compliant with the HDMI 1.4 specification with TMDS data
rates up to 3.4Gbps per channel
Support HDCP 1.4
Adaptive receiver Equalization for PCB, cable and
connector losses
Single/Dual-Port MIPI® DSI/CSI Transmitter
Compliant with DCS1.02, D-PHY1.2& DSI1.02 &CSI-2 1.0
1 Clock Lane, and 1~4 Configurable Data Lanes per port
1/2 configurable port
80Mb/s~1.5Gb/s per Data Lane
Data Lane and Polarity Swapping
Maximum 64Pixels overlap for each half
Burst Mode and Command ModeSupported
Support RGB666, Loosely RGB666, RGB888,
RGB565, 16-bit YCbCr4:2:2,20-bit YCbCr4:2:2,24-bit
YCbCr 4:2:2, 12-bit YCbCr4:2:0Video Format
Video stream copy mode for each single/dual-port
Side-by-side 3D support
Port swap
Miscellaneous
3.3V/1.2VSupply Power
Internal CSC support conversions between YCbCr 4:4:4
and RGB, and between YCbCr 4:2:2 andYCbCr 4:4:4
Support SPDIF and 2-channel IIS audio output
Support 100KHz and 400KHz I2C slave
Power from phone or adapter mode selection
Integrated Microprocessor
Embedded EDID shadow.
Temperature Range: -40°C ~ +85°C
ESD 4kV HBM
2. Description
The LT6911C is a high performance HDMI1.4 to
MIPI®DSI/CSI chip for VR/Smart phone/Display application.
For MIPI®DSI/CSI output, LT6911C features configurable
single-port or dual-port MIPI®DSI/CSI with 1 high-speed
clock lane and 1~4 high-speed data lanes operating at
maximum 1.5Gb/s/lane, which can support a total bandwidth
of up to 12Gbps. LT6911C supports Burst mode DSI video
data transferring, also support flexible video data mapping
path.
For 2D video stream, the same video stream can be
mapped to two separated panel, for 3D video format, left
side data can be sent to one panel, and right side data can
be sent to another panel.
3. Applications
Mobile system
Display
VR
LT6911C
Audio
MIPI P0
MIPI P1
HDMI1.4

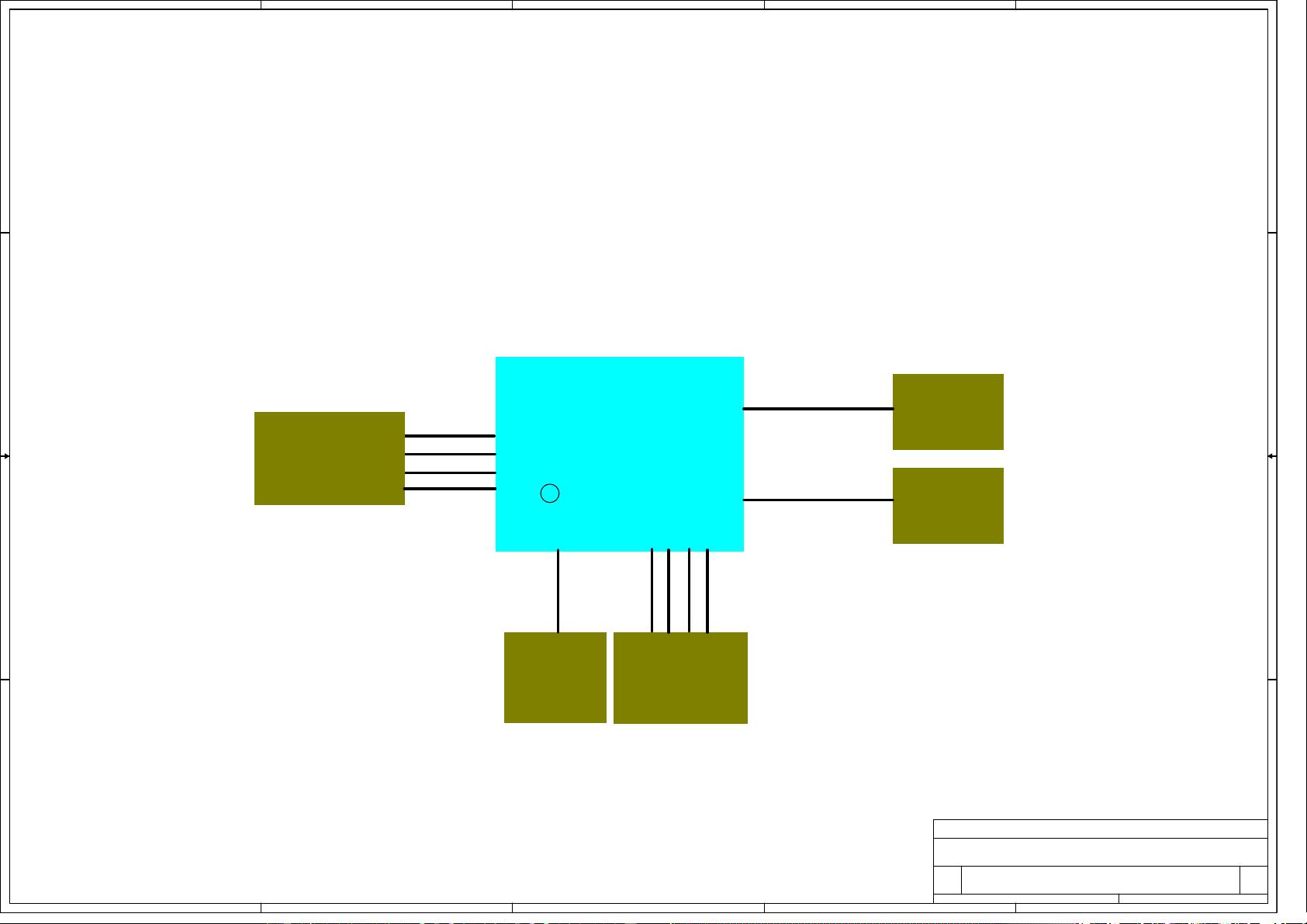

Figure 3.1 Application Diagram
LT6911C Datasheet R1.2
We produce mixed-signal products for a better digital world!
Confidential
3
Lontium Semiconductor
4. Ordering Information
Table 4.1 Ordering Information
Part Number
Operating
Temperature Range
Package Packing Method
LT6911C
-40℃ to+85℃
QFN64 (7.5*7.5) Tray
LT6911C Datasheet R1.2
We produce mixed-signal products for a better digital world!
Confidential
4
Lontium Semiconductor
Table of Contents
1. Features ................................................................................................................................ 2
2. Description ........................................................................................................................... 2
3. Applications ......................................................................................................................... 2
4. Ordering Information ........................................................................................................... 3
5. Revision History .................................................................................................................. 5
6. Pinning Information ............................................................................................................. 6
6.1 Pin Configuration.............................................................................................................. 6
6.2 Pin Description ................................................................................................................. 7
7. Function Description ........................................................................................................... 9
7.1 Function Block Diagram ................................................................................................... 9
8. Specification ...................................................................................................................... 10
8.1 Absolute Maximum Conditions ....................................................................................... 10
8.2 Normal Operating Conditions ......................................................................................... 10
8.3 DC Characteristics ......................................................................................................... 10
8.4 AC Characteristics ......................................................................................................... 11
8.5 Power Consumption ....................................................................................................... 12
8.6 Power-up and Reset Sequence ..................................................................................... 12
9. Package Information ......................................................................................................... 13
LT6911C Datasheet R1.2
We produce mixed-signal products for a better digital world!
Confidential
5
Lontium Semiconductor
5. Revision History
Version Owner Content Date
R1.0 XF CH Initial datasheet creation 03/09/2017
R1.1 Terry Update pin and package information 05/22/2017
R1.2 Terry Update pin and package information 06/22/2017
- 1
- 2
