ACPI Source Language (ASL) Tutorial
version 20190625
License
License: This work is licensed under a Creative Commons Attribution 4.0 International
License. Code samples contained in this work are licensed under BSD-3-Clause.
© Intel Corporation
0 Prerequisites
This tutorial assumes that the reader is familiar with ACPI concepts illustrated in the Introduction
to ACPI paper. If not, the reader is highly encouraged to read the paper available here:
https://acpica.org/sites/acpica/files/ACPI-Introduction.pdf.
1 Overview
1.1 Operating Systems and ACPI
One role of an operating system (OS) is to configure and manage the system’s hardware resources.
These resources could include timers, removable devices, and so on. In order to do so, the OS must
be able to correctly find and configure devices and system components.
Some components have a hardware infrastructure so that operating systems can easily enumerate
and configure certain devices. Other devices cannot be enumerated natively, and their configuration
may be dependent on the platform or motherboard. Devices that cannot be enumerated natively can
encode their platform-specific information in the Advanced Configuration and Power Interface
(ACPI) firmware so they can be enumerated by the OS. ACPI firmware helps the OS by providing
information about devices that cannot be enumerated natively.
1.2 ACPI Overview

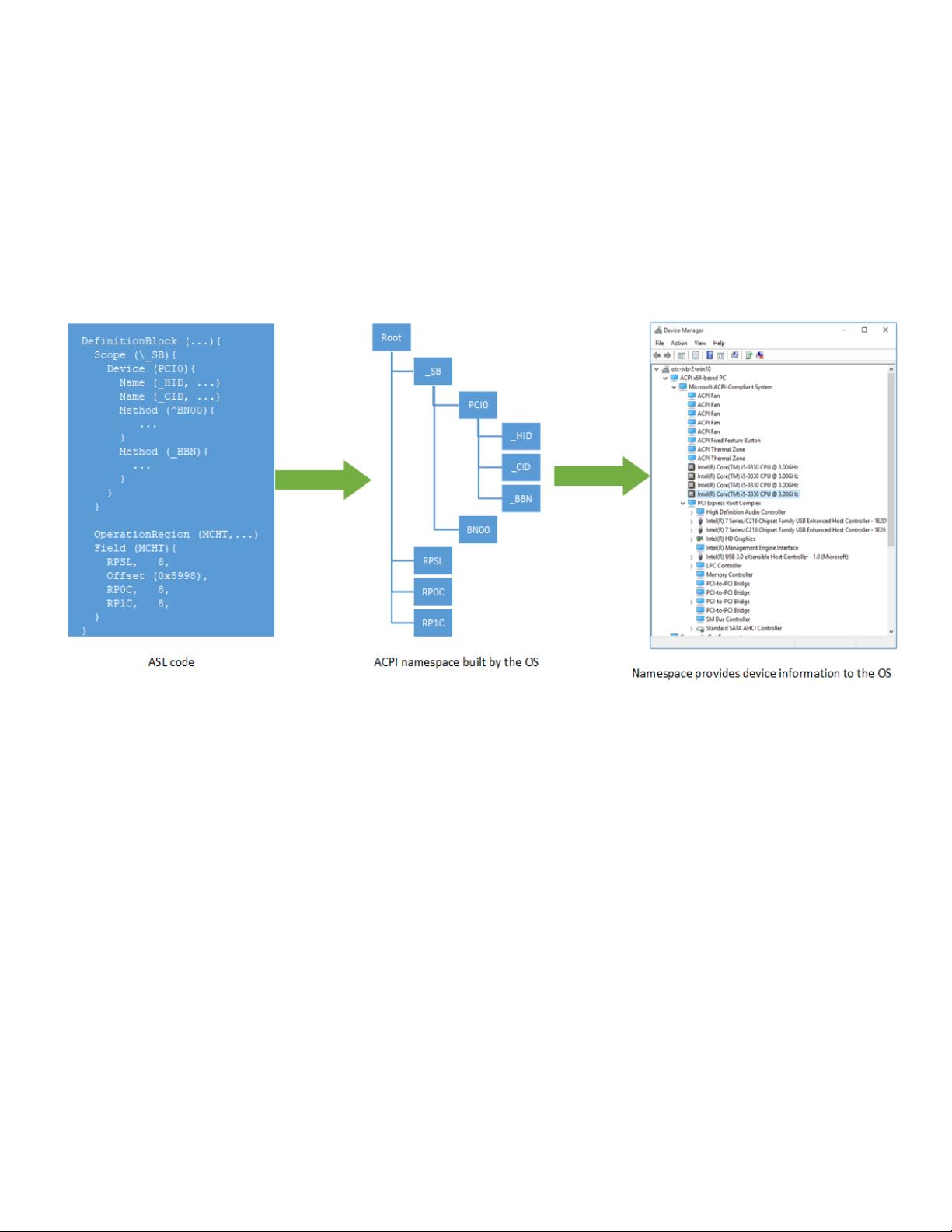

Generally, ACPI development starts with datasheets that describe hardware components.
Firmware developers translate relevant portions of the hardware specification to a file containing
code written in ACPI source language (ASL). This ASL file is compiled to ACPI machine language
(AML) bytecode. AML is packaged along with other firmware code and stored in the platform’s
non-volatile read-only memory.
This tutorial introduces ASL, a programming language with syntax similar to C and also touches
on the basics of other components defined by the ACPI specification.

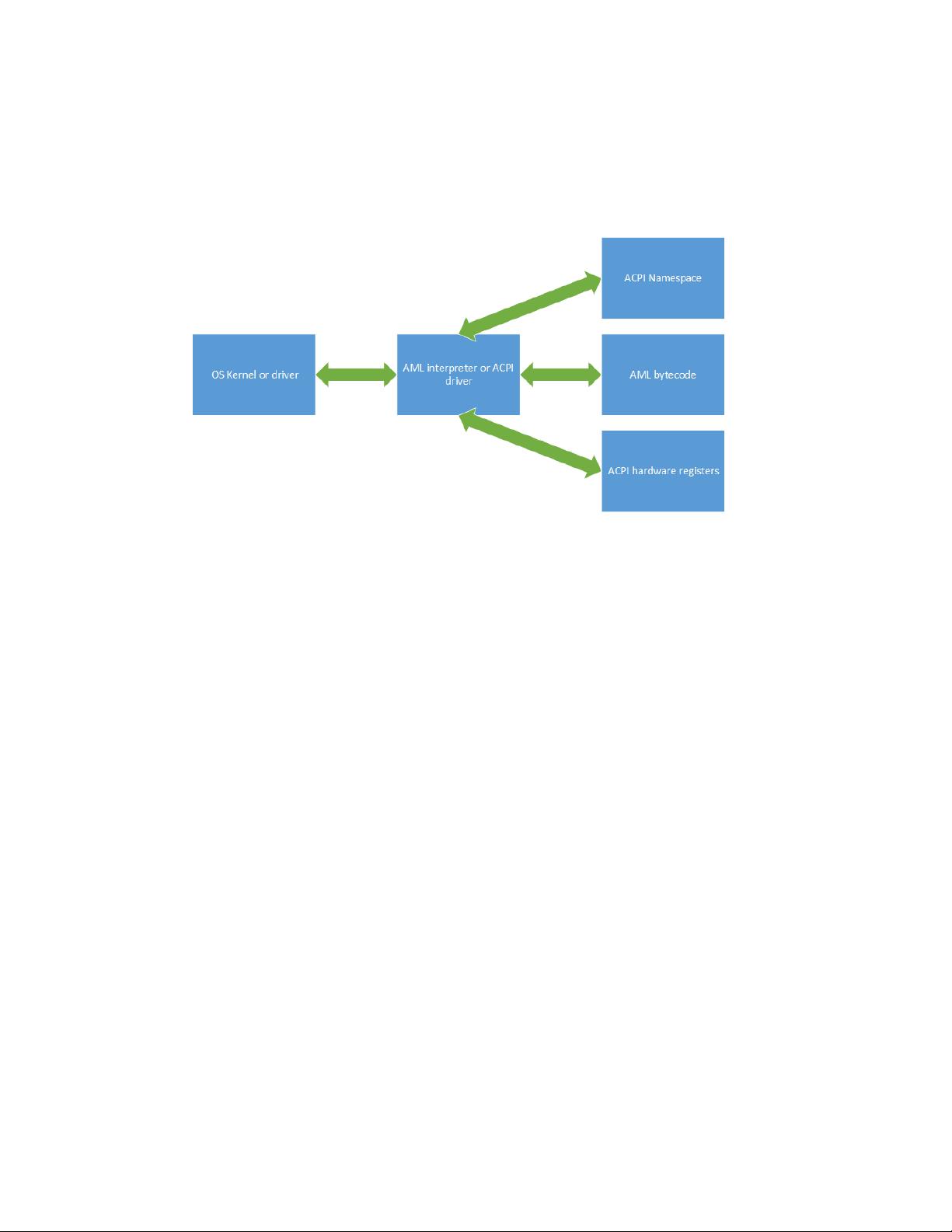

Once the operating system boots, the AML interpreter starts building the ACPI namespace from
AML tables (DSDT and SSDT) contained inside of the firmware package. The ACPI namespace is

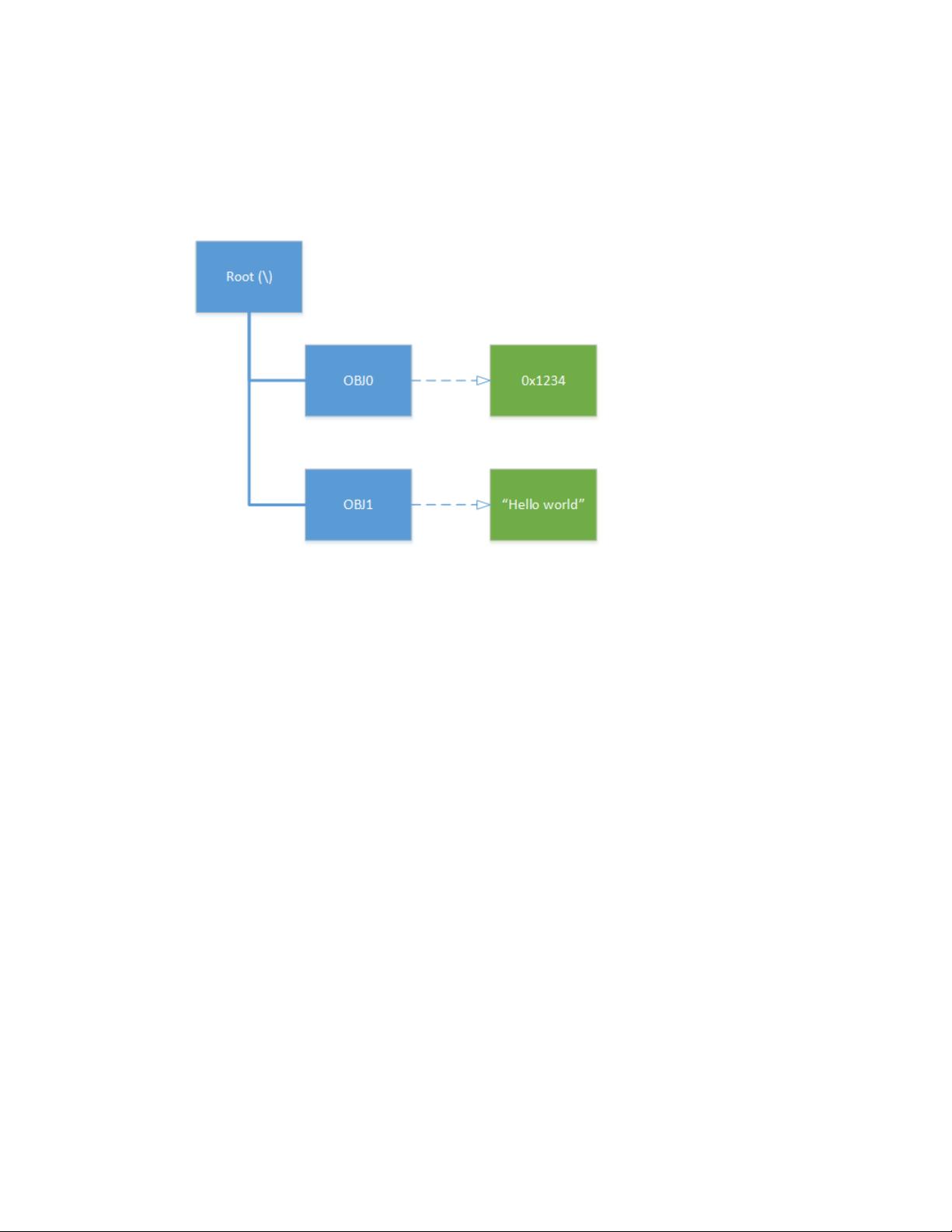

a tree-like data structure that maps variable names to internal objects. When the OS queries the AML
interpreter, the interpreter searches the namespace for the requested variable, evaluates the object
associated with the variable, and returns the result of the computation. This is similar to the act of
loading a program file in an interpreter, like Python, and interactively invoking functions from the
