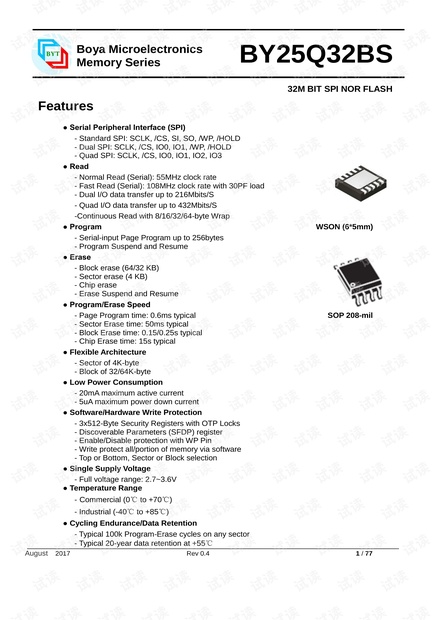

August 2017 Rev 0.4 1 / 77
Boya Microelectronics
Memory Series
NOR Flash Memory
NOR Flash Memory NOR Flash Memory
BY25Q32BS
32M BIT SPI NOR FLASH
Features
● Serial Peripheral Interface (SPI)
- Standard SPI: SCLK, /CS, SI, SO, /WP, /HOLD
- Dual SPI: SCLK, /CS, IO0, IO1, /WP, /HOLD
- Quad SPI: SCLK, /CS, IO0, IO1, IO2, IO3
● Read
- Normal Read (Serial): 55MHz clock rate
- Fast Read (Serial): 108MHz clock rate with 30PF load
- Dual I/O data transfer up to 216Mbits/S
- Quad I/O data transfer up to 432Mbits/S
-Continuous Read with 8/16/32/64-byte Wrap

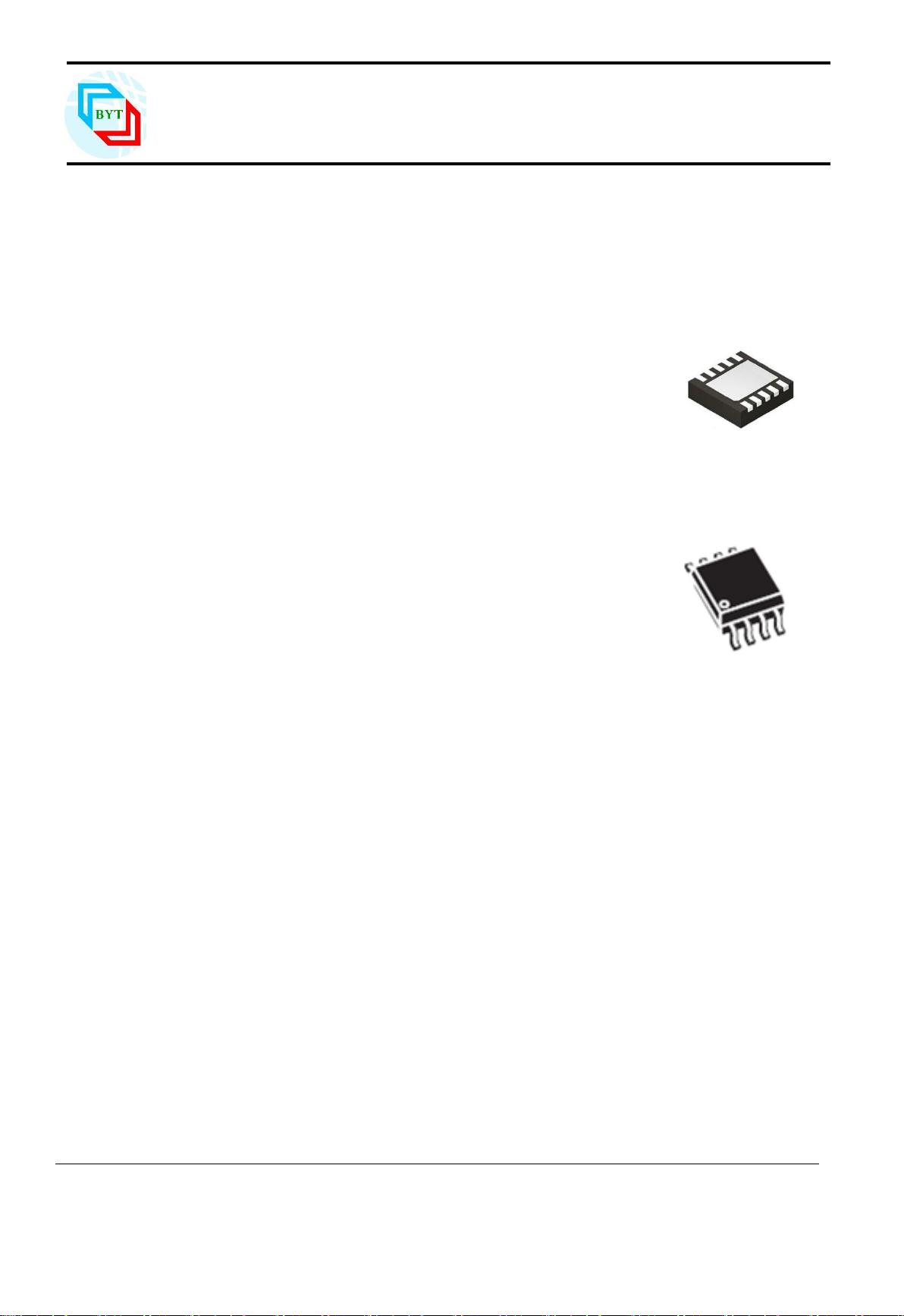

● Program WSON (6*5mm)
- Serial-input Page Program up to 256bytes
- Program Suspend and Resume
● Erase
- Block erase (64/32 KB)
- Sector erase (4 KB)
- Chip erase
- Erase Suspend and Resume
● Program/Erase Speed
- Page Program time: 0.6ms typical SOP 208-mil
- Sector Erase time: 50ms typical
- Block Erase time: 0.15/0.25s typical
- Chip Erase time: 15s typical
● Flexible Architecture
- Sector of 4K-byte
- Block of 32/64K-byte
● Low Power Consumption
- 20mA maximum active current
- 5uA maximum power down current
● Software/Hardware Write Protection
- 3x512-Byte Security Registers with OTP Locks
- Discoverable Parameters (SFDP) register
- Enable/Disable protection with WP Pin
- Write protect all/portion of memory via software
- Top or Bottom, Sector or Block selection
● Single Supply Voltage
- Full voltage range: 2.7~3.6V
● Temperature Range
- Commercial (0℃ to +70℃)
- Industrial (-40℃ to +85℃)
● Cycling Endurance/Data Retention
- Typical 100k Program-Erase cycles on any sector
- Typical 20-year data retention at +55℃

August 2017 Rev 0.4 2 / 77
Contents
NOR Flash Memory
NOR Flash Memory NOR Flash Memory
BY25Q32BS
Contents
1. Description ................................................................................. 5
2. Signal Description ...................................................................... 7
2.1 Input/Output Summary ................................................................................. 7
2.2 Chip Select (/CS) .......................................................................................... 7
2.3 Serial Clock (SCLK) ..................................................................................... 7
2.4 Serial Input (SI)/IO0 ..................................................................................... 8
2.5 Serial Data Output (SO)/IO1......................................................................... 8
2.6 Write Protect (/WP)/IO2 ............................................................................... 8
2.7 HOLD (/HOLD)/IO3 .................................................................................... 8
2.8 VCC Power Supply ....................................................................................... 9
2.9 VSS Ground .................................................................................................. 9
3. Block/Sector Addresses ........................................................... 10
4. SPI Operation ........................................................................... 11
4.1 Standard SPI Instructions ............................................................................. 11
4.2 Dual SPI Instructions ................................................................................... 11
4.3 Quad SPI Instructions .................................................................................. 11
5. Operation Features .................................................................. 12
5.1 Supply Voltage ............................................................................................ 12
Operating Supply Voltage ........................................................ 12
Power-up Conditions ............................................................... 13
Device Reset ........................................................................... 13
Power-down ............................................................................ 13
5.2 Active Power and Standby Power Modes ................................................... 13
5.3 Hold Condition ............................................................................................ 13
5.4 Status Register............................................................................................. 14
Status Register Table .............................................................. 14
The Status and Control Bits..................................................... 15
Status Register Protect Table .................................................. 16
Write Protect Features............................................................. 18
Status Register Memory Protection ......................................... 19
6. Device Identification ................................................................. 21
7. Instructions Description ............................................................ 22
7.1 Configuration and Status Instructions ......................................................... 26
Write Enable (06H) .................................................................. 26
Write Disable (04H) ................................................................. 26
Read Status Register (05H or 35H or 15H) ............................. 27
Write Status Register (01H or 31H or 11H) ............................. 27
Write Enable for Volatile Status Register (50H) ....................... 28
7.2 Read Instructions......................................................................................... 29
Read Data (03H) ..................................................................... 29
Fast Read (0BH) ..................................................................... 30
Dual Output Fast Read (3BH) ................................................. 31
Quad Output Fast Read (6BH) ................................................ 32

August 2017 Rev 0.4 3 / 77
Contents
NOR Flash Memory
NOR Flash Memory NOR Flash Memory
BY25Q32BS
Dual I/O Fast Read (BBH) ....................................................... 33
Quad I/O Fast Read (EBH)...................................................... 35
Quad I/O Word Fast Read (E7H) ............................................ 37
Set Burst with Wrap (77H) ....................................................... 39
7.3 ID and Security Instructions ....................................................................... 40
Read Manufacture ID/ Device ID (90H) ................................... 40
Dual I/O Read Manufacture ID/ Device ID (92H) ..................... 41
Quad I/O Read Manufacture ID/ Device ID (94H) ................... 42
Read JEDEC ID (9FH) ............................................................ 43
Read Unique ID Number (4Bh) ............................................... 44
Deep Power-Down (B9H) ........................................................ 45
Release from Deep Power-Down/Read Device ID (ABH) ....... 46
Read Security Registers (48H) ................................................ 47
Erase Security Registers (44H) ............................................... 48
Program Security Registers (42H) ........................................... 49
Enable Reset (66H) and Reset Device (99H) .......................... 50
Read Serial Flash Discoverable Parameter (5AH) .................. 51
7.4 Program and Erase Instructions .................................................................. 52
Page Program (02H) ............................................................... 52
Quad Page Program (32H)...................................................... 53
Fast Page Program (F2H) ....................................................... 54
Sector Erase (20H) .................................................................. 55
32KB Block Erase (52H) ......................................................... 56
64KB Block Erase (D8H) ......................................................... 57
Chip Erase (60/C7H) ............................................................... 58
Erase / Program Suspend (75H) ............................................. 59
Erase / Program Resume (7AH) .............................................. 60
8. Electrical Characteristics .......................................................... 61
8.1 Absolute Maximum Ratings ....................................................................... 61
8.2 Operating Ranges ........................................................................................ 61
8.3 Data Retention and Endurance .................................................................... 61
8.4 Latch Up Characteristics ............................................................................. 62
8.5 Power-up Timing ......................................................................................... 62
8.6 DC Electrical Characteristics ...................................................................... 63
8.7 AC Measurement Conditions ...................................................................... 64
8.8 AC Electrical Characteristics ...................................................................... 64
9. Package Information ................................................................ 68
9.1 Package 8-Pin SOP 150-mil ........................................................................ 68
9.2 Package 8-Pin SOP 208-mil ........................................................................ 69
9.3 Package 8-Pin DIP8L .................................................................................. 70
9.4 Package 8-Pad WSON (6x5mm) ................................................................ 71
9.5 Package VSOP8 208mil .............................................................................. 72
9.6 Package USON8 (4*4mm).......................................................................... 73
9.7 Package USON8 (4*3mm).......................................................................... 74
10. Order Information ..................................................................... 75
10.1 Valid part Numbers and Top Side Marking ................................................. 76

August 2017 Rev 0.4 5 / 77
Description
NOR Flash Memory
NOR Flash Memory NOR Flash Memory
BY25Q32BS
1. Description
The BY25Q32BS is 32M-bit Serial Peripheral Interface(SPI) Flash memory, and supports the
Dual/Quad SPI: Serial Clock, Chip Select, Serial Data I/O0 (SI), I/O1 (SO), I/O2 (/WP), and I/O3
(/HOLD). The Dual I/O data is transferred with speed of 240Mbits/s and the Quad I/O & Quad
output data is transferred with speed of 480Mbits/s. The device uses a single low voltage power
supply, ranging from 2.7 Volt to 3.6 Volt.
Additionally, the device supports JEDEC standard manufacturer and device ID and three
256-bytes Security Registers.
In order to meet environmental requirements, Boya Microelectronics offers 8-pin SOP 208mil,
8-pad WSON 6x5-mm, and other special order packages, please contacts Boya Microelectronics
for ordering information.

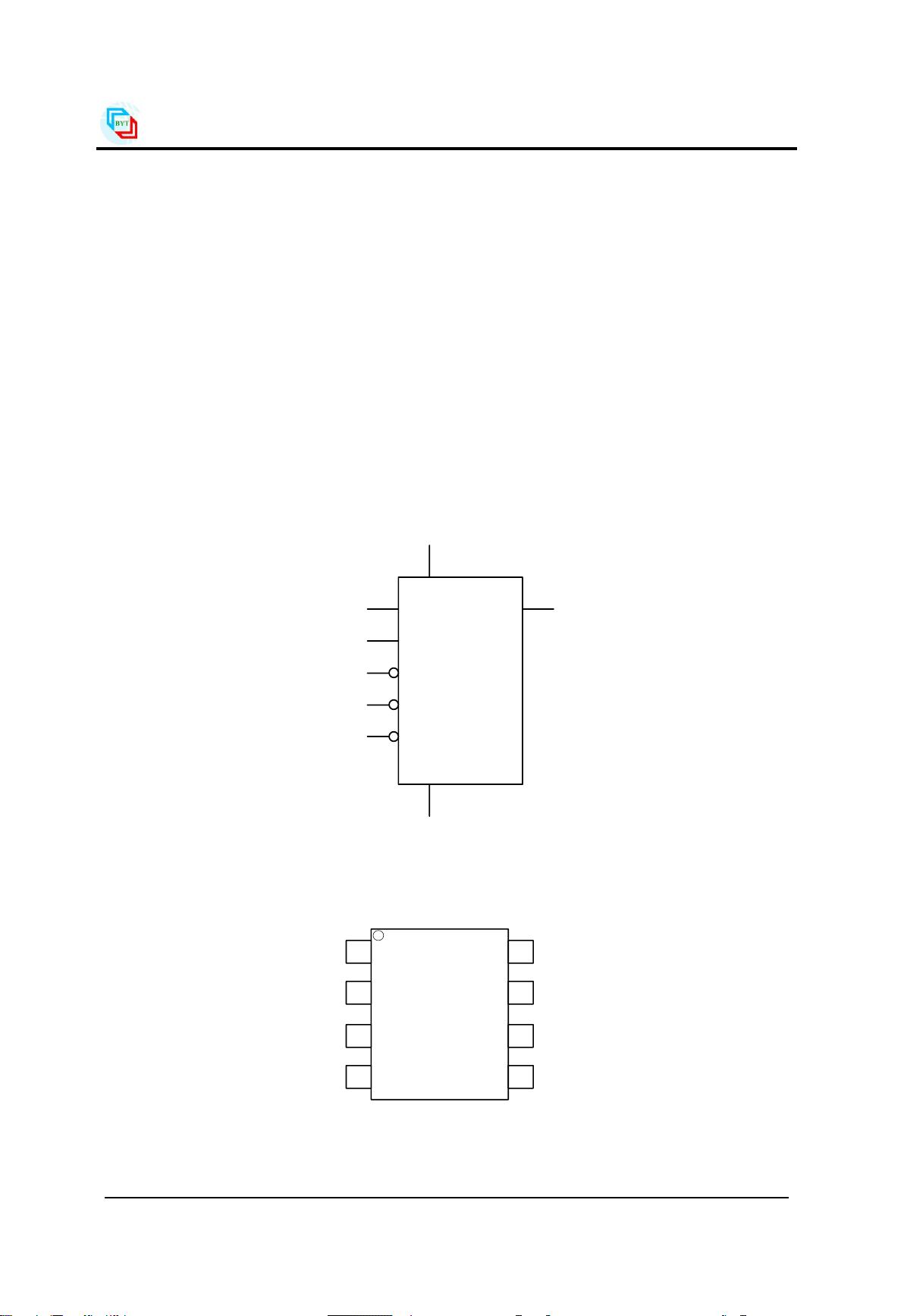

Figure 1. Logic diagram
BY25QXX
VCC
/HOLD
SCLK
SI
VSS
SO
/CS
/WP
Figure 2. Pin Configuration SOP 208 mil
1
2
3
4
8
7
6
5
Top View
SOP8 208mil
/CS
SO
/WP
VSS
VCC
/HOLD
SCLK
SI
