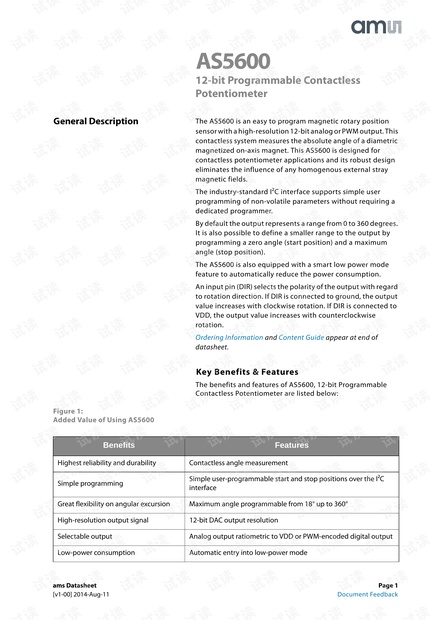

ams Datasheet Page 1
[v1-00] 2014-Aug-11 Document Feedback
AS5600
12-bit Programmable Contactless
Potentiometer
The AS5600 is an easy to program magnetic rotary position
sensor with a high-resolution 12-bit analog or PWM output. This
contactless system measures the absolute angle of a diametric
magnetized on-axis magnet. This AS5600 is designed for
contactless potentiometer applications and its robust design
eliminates the influence of any homogenous external stray
magnetic fields.
The industry-standard I²C interface supports simple user
programming of non-volatile parameters without requiring a
dedicated programmer.
By default the output represents a range from 0 to 360 degrees.
It is also possible to define a smaller range to the output by
programming a zero angle (start position) and a maximum
angle (stop position).
The AS5600 is also equipped with a smart low power mode
feature to automatically reduce the power consumption.
An input pin (DIR) selects the polarity of the output with regard
to rotation direction. If DIR is connected to ground, the output
value increases with clockwise rotation. If DIR is connected to
VDD, the output value increases with counterclockwise
rotation.
Ordering Information and Content Guide appear at end of
datasheet.
Key Benefits & Features
The benefits and features of AS5600, 12-bit Programmable
Contactless Potentiometer are listed below:
Figure 1:
Added Value of Using AS5600
Benefits Features
Highest reliability and durability Contactless angle measurement
Simple programming
Simple user-programmable start and stop positions over the I²C
interface
Great flexibility on angular excursion Maximum angle programmable from 18° up to 360°
High-resolution output signal 12-bit DAC output resolution
Selectable output Analog output ratiometric to VDD or PWM-encoded digital output
Low-power consumption Automatic entry into low-power mode
General Description

Page 2 ams Datasheet
Document Feedback [v1-00] 2014-Aug-11
AS5600 − General Description
Applications
The AS5600 is ideally suited for contactless potentiometers,
contactless knobs, pedals, RC servos and other angular position
measurement solutions.

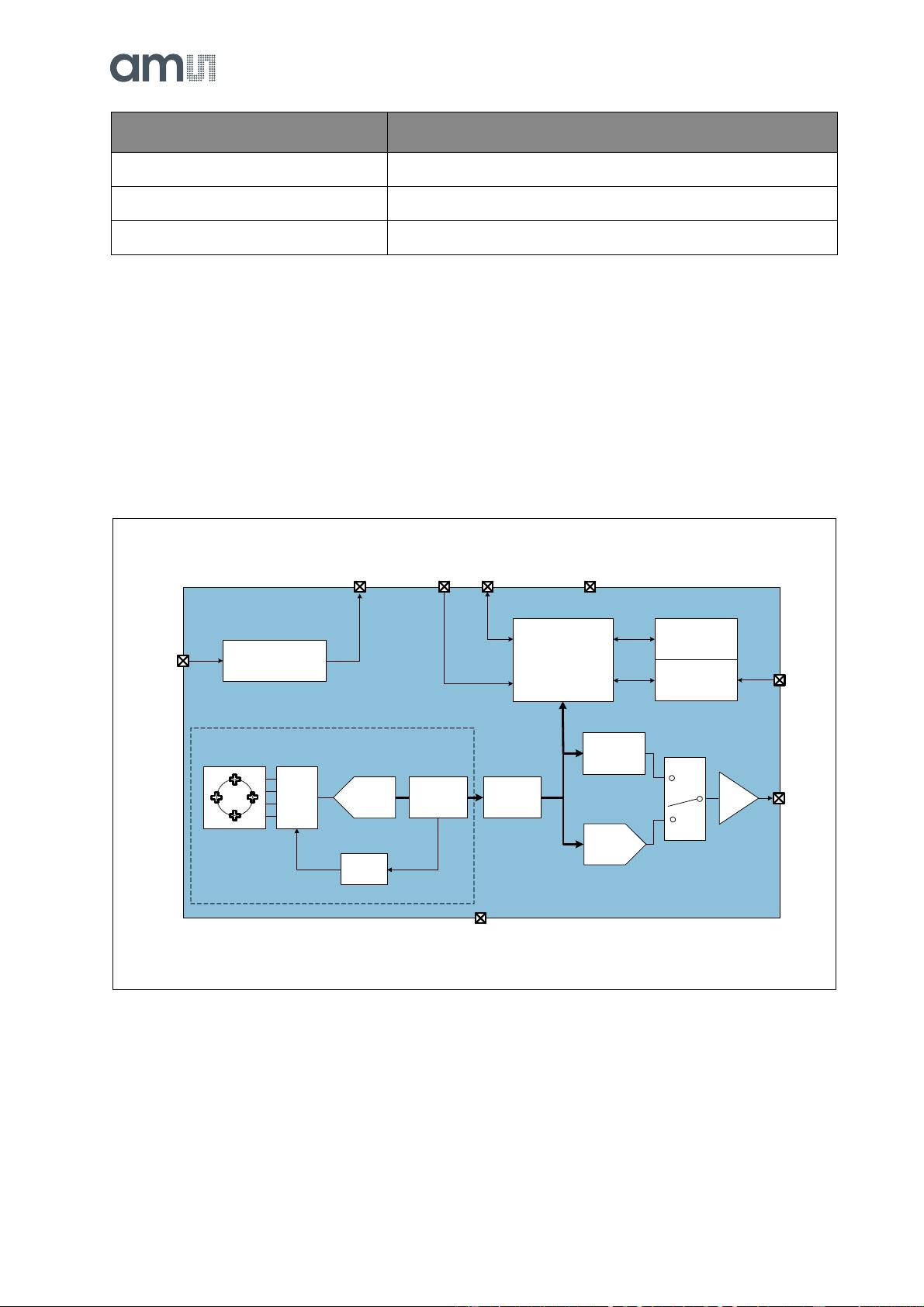

Block Diagram
The functional blocks of this device are shown below:
Figure 2:
Functional Blocks of AS5600
Easy setup Automatic magnet detection
Small form factor SOIC-8 package
Robust environmental tolerance Wide temperature range: -40°C to +125°C
Benefits Features
AFE
AGC
12-bit A/D
Driver
Register Setting
OTP
I²C
AS5600
OUT
VDD3V3
VDD5V
GND
SCLSDA
PWM
PGO
DIR
Analog
Front-End
Hall Sensors
12-bit D/A
ATAN
(CORDIC)
Digital
Processing
and Filtering
LDO 3.3V
Magnetic Core

ams Datasheet Page 3
[v1-00] 2014-Aug-11 Document Feedback
AS5600 − Pin Assignments

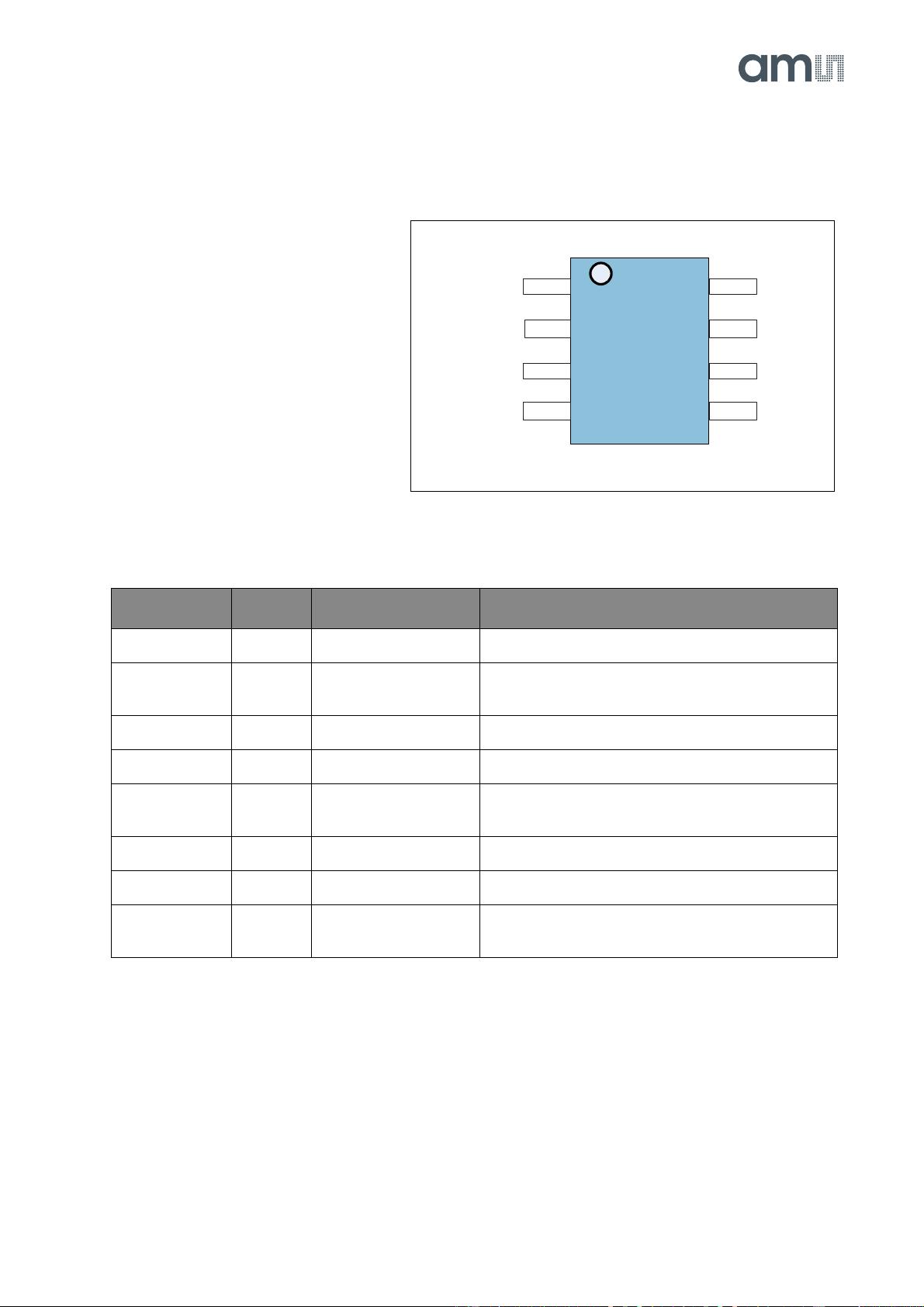

Figure 3:
SOIC-8 Pin-out
Figure 4:
Pin Description
Pin Number Name Type Description
1 VDD5V Supply Positive voltage supply in 5V mode
2 VDD3V3 Supply
Positive voltage supply in 3.3V mode (requires an
external 1-μF decoupling capacitor in 5V mode)
3 OUT Analog/digital output Analog/PWM output
4GNDSupply Ground
5PGODigital input
Program option (internal pull-up, connected to
GND = Programming Option B)
6 SDA Digital input/output I²C Data
7SCLDigital input I²C Clock
8DIRDigital input
Direction polarity (GND = values increase clockwise,
VDD = values increase counterclockwise)
Pin Assignments
2
3
4
5
6
7
81
VDD3V3
OUT
GND
VDD5V
PGO
SDA
SCL
DIR
AS5600

Page 4 ams Datasheet
Document Feedback [v1-00] 2014-Aug-11
AS5600 − Absolute Maximum Ratings
Stresses beyond those listed under “Absolute Maximum
Ratings“ may cause permanent damage to the device. These are
stress ratings only. Functional operation of the device at these
or any other conditions beyond those indicated under
“Operating Conditions” is not implied. Exposure to absolute
maximum rating conditions for extended periods may affect
device reliability.
Figure 5:
Absolute Maximum Ratings
Symbol Parameter Min Max Units Comments
Electrical Parameters
VDD5V
DC Supply Voltage at VDD5V
pin
-0.3 6.1 V
VDD3V3
DC Supply Voltage at
VDD3V3 pin
-0.3 4.0 V
VIO
DC Supply Voltage at all
digital or analog pins
-0.3 VDD+0.3 V
I
SCR
Input current (latch-up
immunity)
-100 100 mA Norm: JESD78
Continuous Power Dissipation (T
A
= +70°C)
P
T
Continuous power
dissipation
50 mW
Electrostatic Discharge
ESD
HBM
Electrostatic discharge HBM ±2 kV Norm: MIL 883 E method 3015.7
Temperature Ranges and Storage Conditions
T
STRG
Storage temperature range -55 +125 °C
T
BODY
Package body temperature +260 °C
Norm: ICP/JEDEC J-STD-020
The reflow peak soldering
temperature (body temperature) is
specified according to IPC/JEDEC
J-STD-020 “Moisture/Reflow
Sensitivity Classification for
Non-hermetic Solid State Surface
Mount Devices.” The lead finish for
Pb-free leaded packages is “Matte
Tin” (100% Sn)
RH
NC
Relative humidity
(non-condensing)
585 %
MSL Moisture sensitive level 3 Norm: ICP/JEDEC J-STD-033
Absolute Maximum Ratings

ams Datasheet Page 5
[v1-00] 2014-Aug-11 Document Feedback
AS5600 − Electrical Characteristics
All limits are guaranteed. The parameters with minimum and
maximum values are guaranteed with production tests or SQC
(Statistical Quality Control) methods.
Operating Conditions
Figure 6:
System Electrical Characteristics and Temperature Range
Note(s) and/or Footnote(s):
1. For typical magnetic field (60mT) excluding current delivered to the external load and tolerance on polling times.
2. For OTP burn procedure the supply line source resistance should not exceed 1Ohm.
Symbol Parameter Conditions Min Typ Max Units
VDD5V
Positive supply voltage in
5.0V mode
5.0V operation mode
4.5 5.0 5.5 V
During OTP burn procedure
(2)
VDD3V3
Positive supply voltage in
3.3V mode
3.3V operation mode 3.0 3.3 3.6 V
During OTP burn procedure
(2)
3.3 3.4 3.5 V
IDD
Supply current in NOM
(1)
PM = 00
Always on
6.5 mA
lDD_LPM1
Supply current in LPM1
(1)
PM = 01
Polling time = 5ms
3.4 mA
lDD_ LPM2
Supply current in LPM2
(1)
PM = 10
Polling time = 20ms
1.8 mA
lDD_ LPM3
Supply current in LPM3
(1)
PM = 11
Polling time = 100ms
1.5 mA
IDD_BURN
Supply current per bit for
burn procedure
Initial peak, 1 μs 100 mA
Steady burning,<30 μs 40 mA
T
A
Operating temperature -40 +125 °C
T
P
Programming
temperature
+20 +30 °C
Electrical Characteristics
