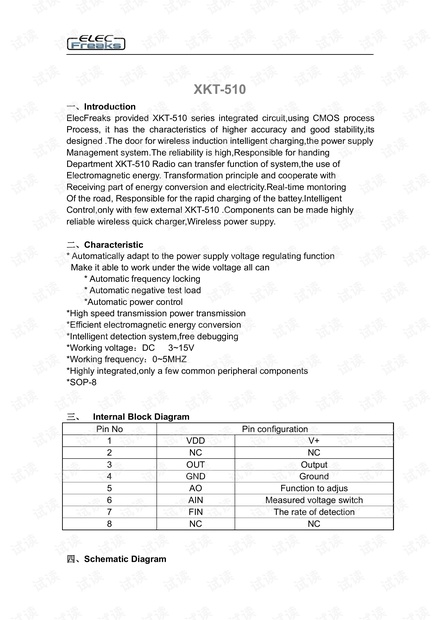

XKT-510
一、Introduction
ElecFreaks provided XKT-510 series integrated circuit,using CMOS process
Process, it has the characteristics of higher accuracy and good stability,its
designed .The door for wireless induction intelligent charging,the power supply
Management system.The reliability is high,Responsible for handing
Department XKT-510 Radio can transfer function of system,the use of
Electromagnetic energy. Transformation principle and cooperate with
Receiving part of energy conversion and electricity.Real-time montoring
Of the road, Responsible for the rapid charging of the battey.Intelligent
Control,only with few external XKT-510 .Components can be made highly
reliable wireless quick charger,Wireless power suppy.
二、Characteristic
* Automatically adapt to the power supply voltage regulating function
Make it able to work under the wide voltage all can
* Automatic frequency locking
* Automatic negative test load
*Automatic power control
*High speed transmission power transmission
*Efficient electromagnetic energy conversion
*Intelligent detection system,free debugging
*Working voltage：DC 3~15V
*Working frequency：0~5MHZ
*Highly integrated,only a few common peripheral components
*SOP-8
三、 Internal Block Diagram
Pin No Pin configuration
1 VDD V+
2 NC NC
3 OUT Output
4 GND Ground
5 AO Function to adjus
6 AIN Measured voltage switch
7 FIN The rate of detection
8 NC NC
四、Schematic Diagram
